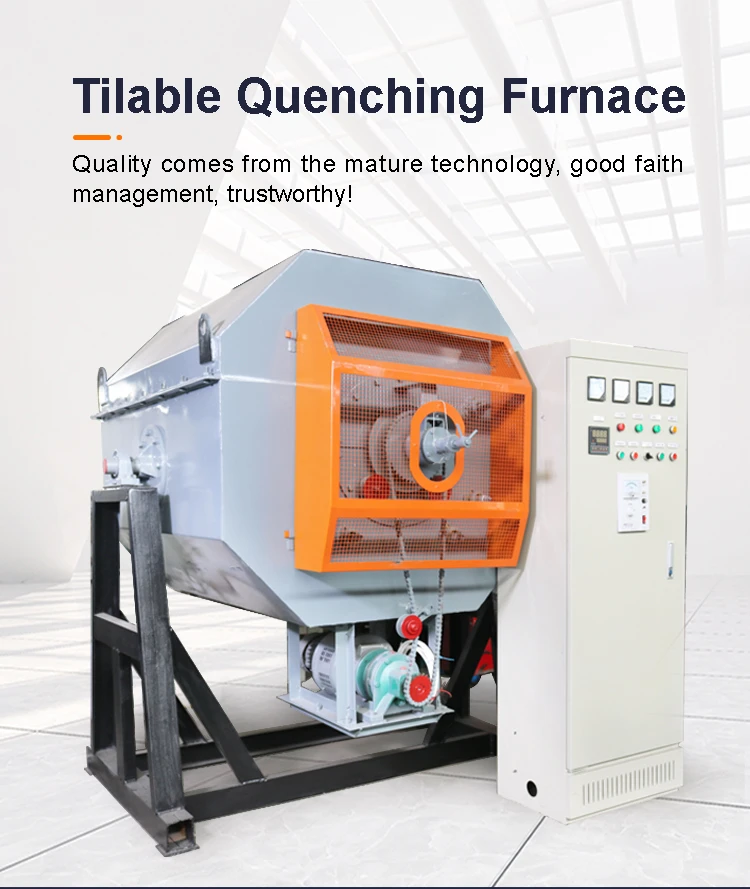

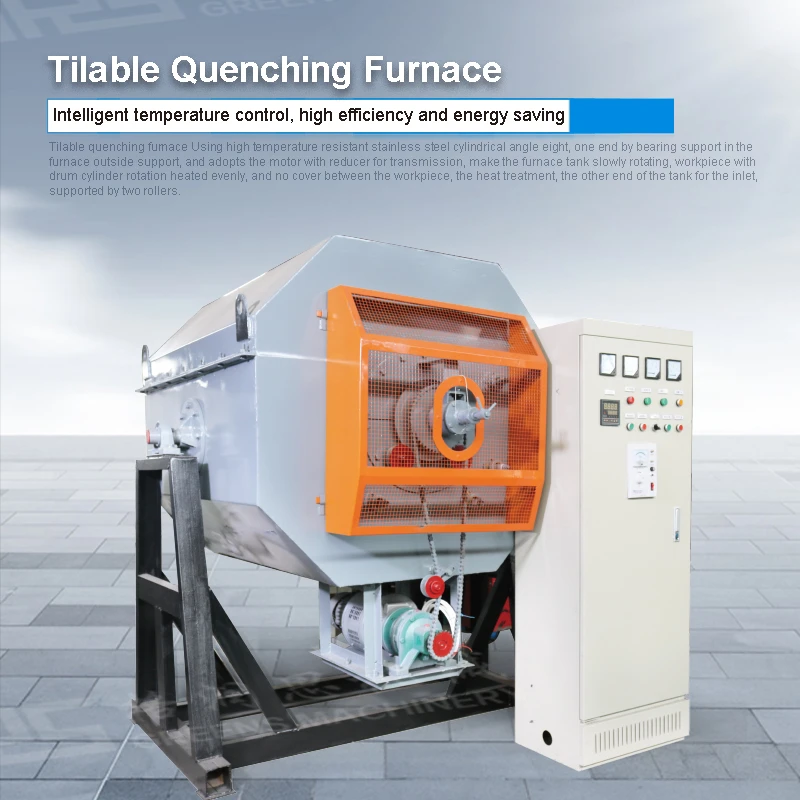

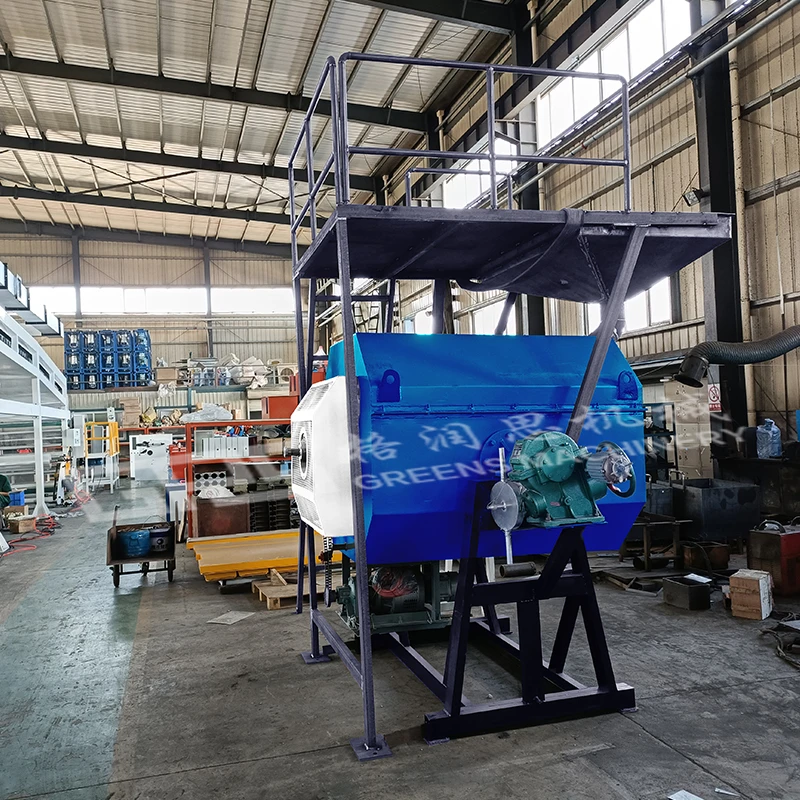

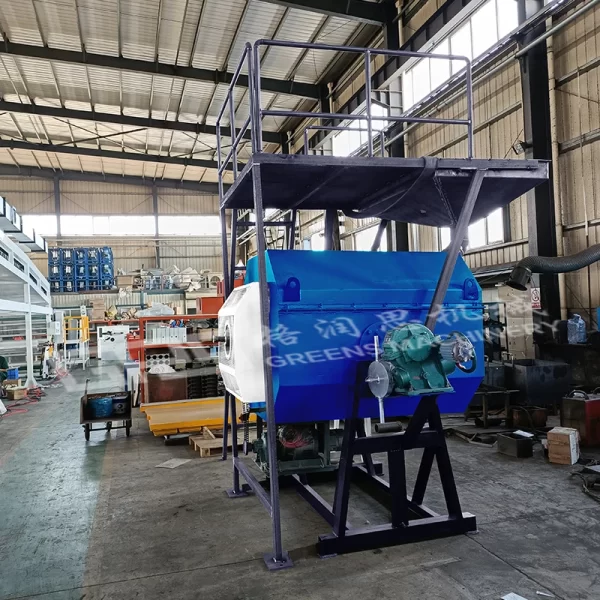

Tilting Rotary Drum Quenching Furnace
Tilting rotary drum quenching furnace built for tiny metal fasteners including screws, bolts and rivets. It supports carburizing, quenching and tempering, equipped with auto tilting unloading system, even heating and intelligent energy-saving control for full standard parts heat treatment production lines.
Quality comes from mature manufacturing technology, stable intelligent control & reliable factory support!

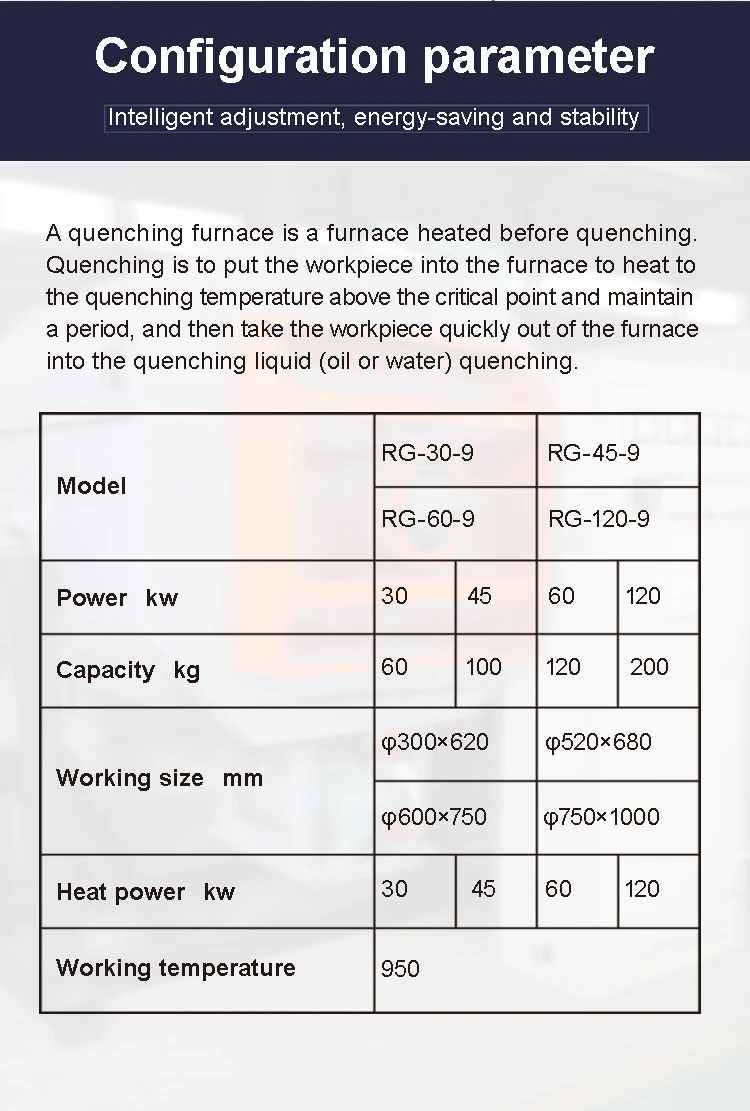

Configuration & Technical Parameters
Intelligent temperature adjustment, energy-saving & stable continuous heating performance, 4 standard models to match different daily production capacity demands:
Model RG-30-9
- Total Heating Power: 30 kw
- Max Single Batch Loading Capacity: 60 kg
- Inner Furnace Tank Working Size: φ300×620 mm
- Max Continuous Working Temperature: 950 ℃
Model RG-45-9
- Total Heating Power: 45 kw
- Max Single Batch Loading Capacity: 100 kg
- Inner Furnace Tank Working Size: φ520×680 mm
- Max Continuous Working Temperature: 950 ℃
Model RG-60-9
- Total Heating Power: 60 kw
- Max Single Batch Loading Capacity: 120 kg
- Inner Furnace Tank Working Size: φ600×750 mm
- Max Continuous Working Temperature: 950 ℃
Model RG-120-9
- Total Heating Power: 120 kw
- Max Single Batch Loading Capacity: 200 kg
- Inner Furnace Tank Working Size: φ750×1000 mm
- Max Continuous Working Temperature: 950 ℃

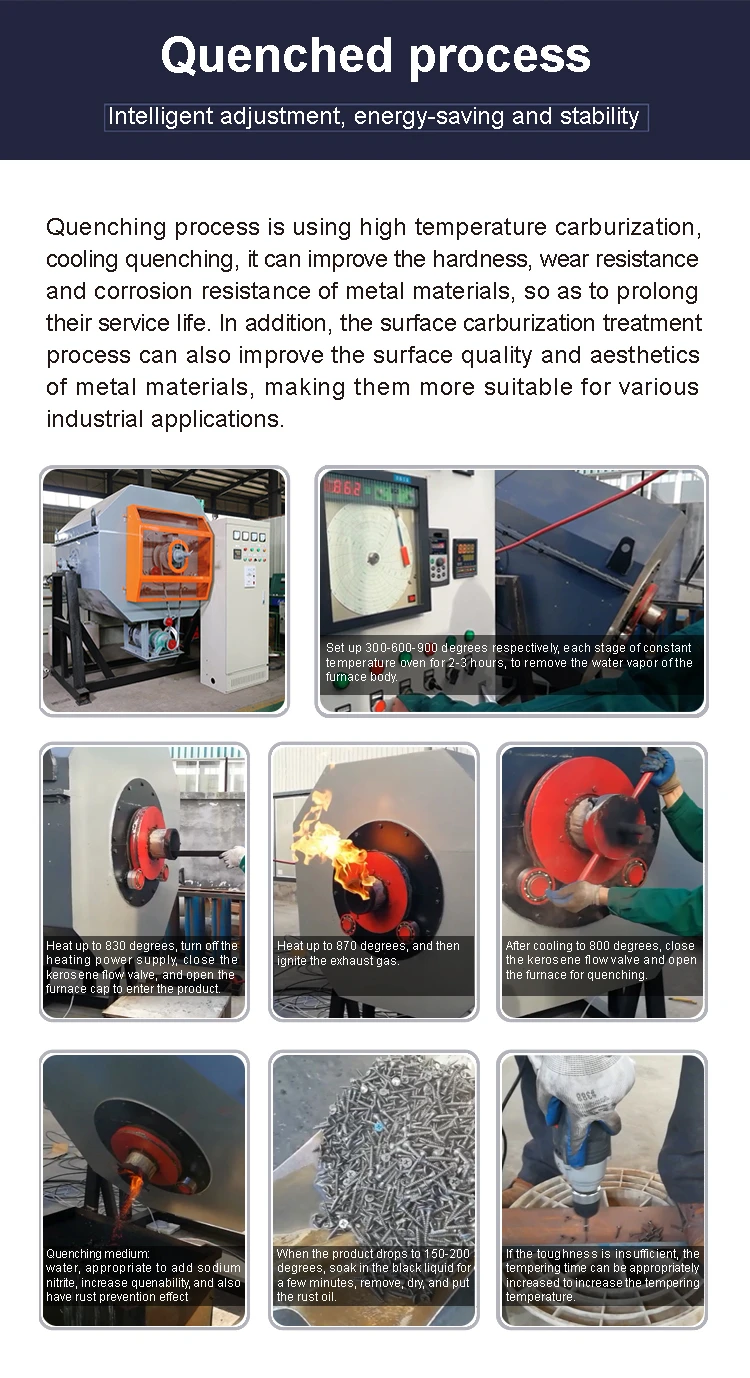

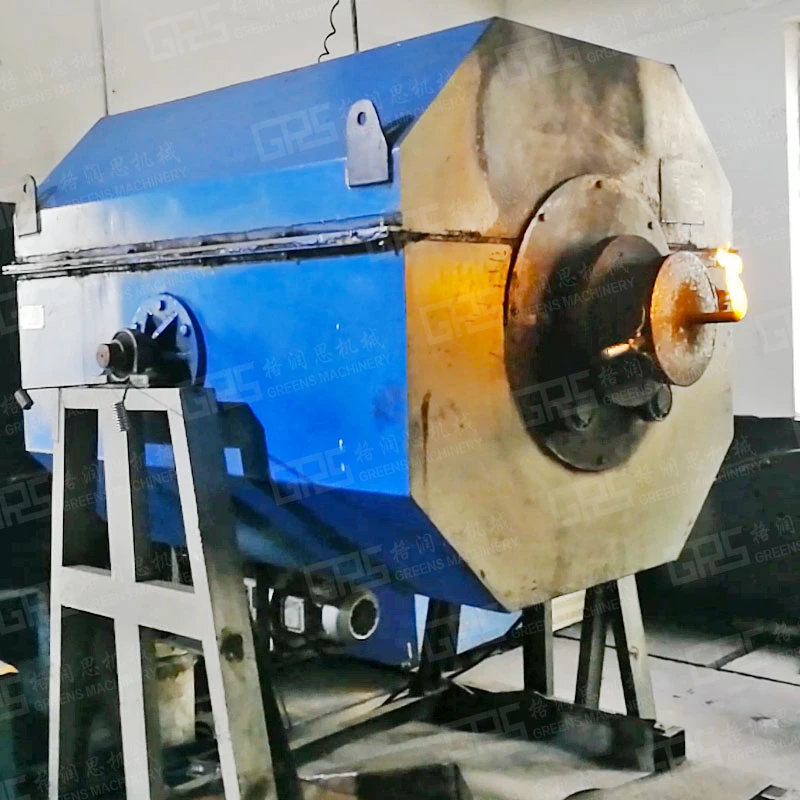

Complete Quenching & Carburizing Process Details
High-temperature gas carburizing paired with rapid liquid cooling quenching improves metal hardness, wear resistance and anti-corrosion property to extend service life of fastener parts.
- Step 1: Segment preheat furnace from 300℃ to 900℃, hold constant temperature to remove internal water vapor
- Step 2: Heat up to 830℃, cut off heating & kerosene supply, feed raw fasteners into sealed furnace tank
- Step 3: Raise temperature to 870℃, ignite waste exhaust gas to build sealed protective carburizing atmosphere

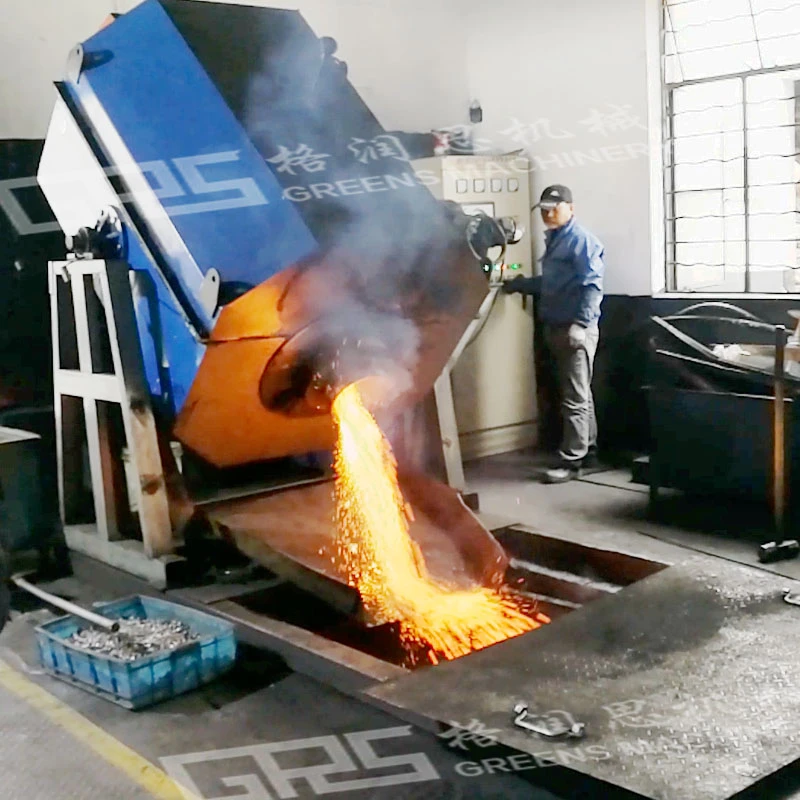

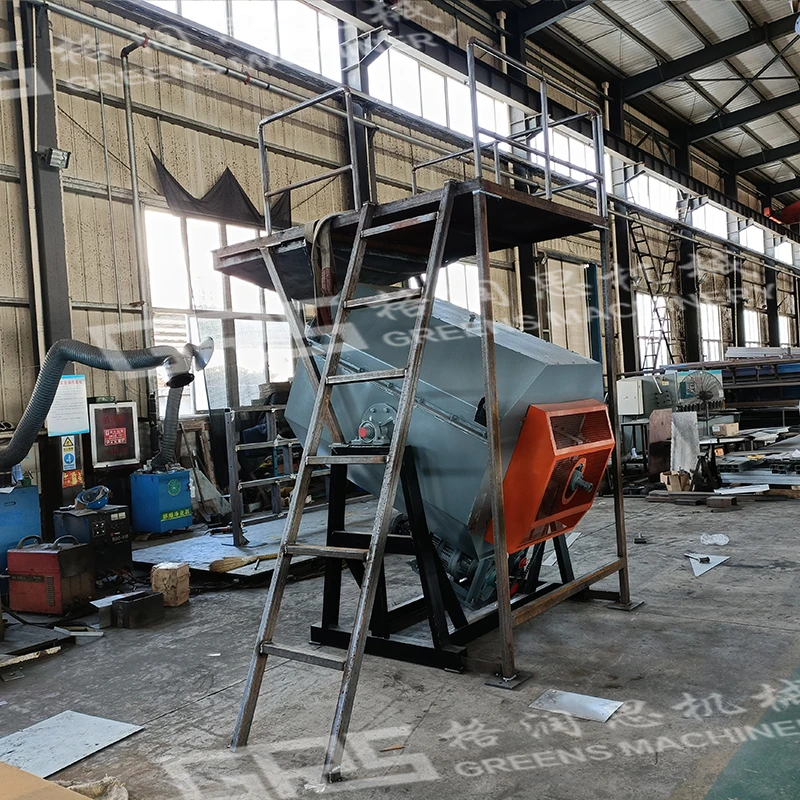

- Step 4: Cool furnace to 800℃, close kerosene valve, tilt furnace body to automatically discharge hot workpieces
- Step 5: Drop hot parts into water quenching medium mixed with sodium nitrite for anti-rust & uniform hardening effect
- Step 6: Cool workpieces down to 150-200℃, soak in anti-rust black oil then air-dry finished fasteners
- Step 7: Extend tempering holding time properly to boost part toughness if hardness is excessive
Full Drywall Screw Production Line Matching Flow

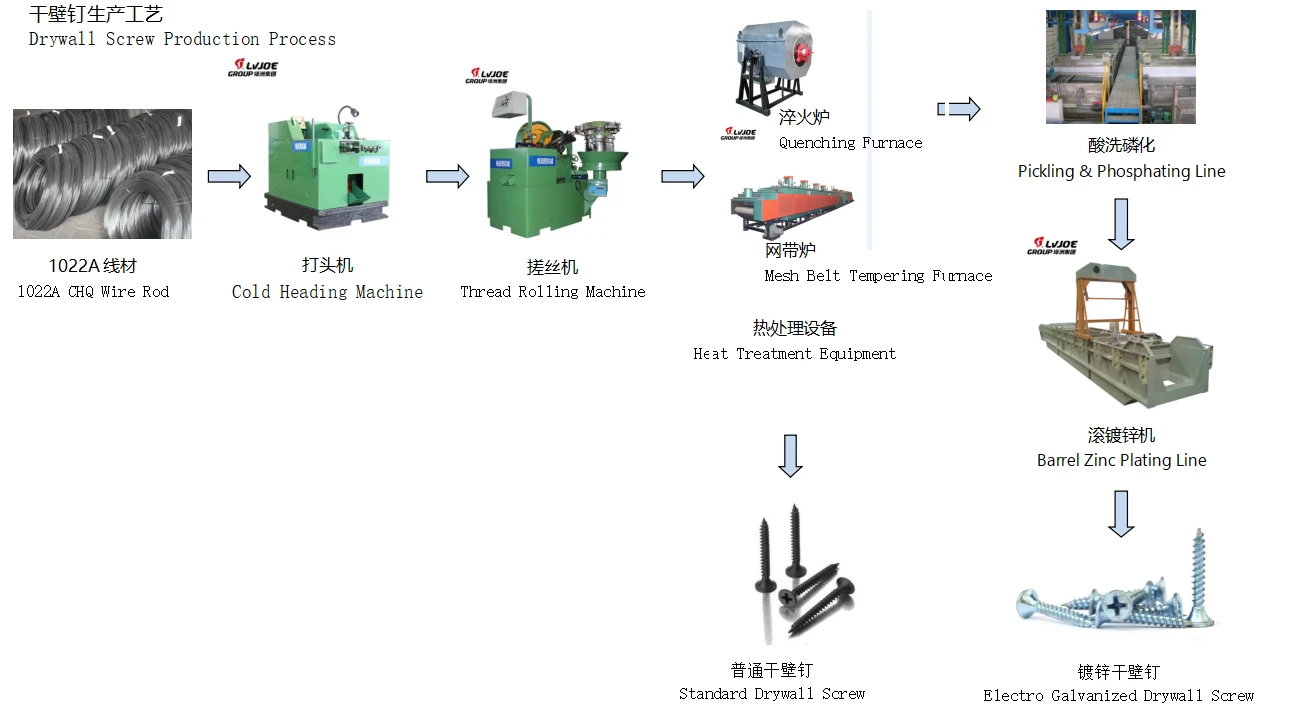

This tilting quenching furnace serves as core heat treatment equipment, perfectly matched with cold heading machine, thread rolling machine, mesh belt tempering furnace, pickling phosphating line and barrel zinc plating line. The whole line processes raw CHQ wire rod into standard black drywall screws and electro-galvanized finished screws.
Wide Application Industries
Suitable for heat treatment processing of bolts, nuts, rivets, gears, shafts and various small stamped metal parts across machinery manufacturing sectors:
Aerospace Small Steel Components
Ship Fitting Bolts & Screws
Construction Standard Hardware Screws
Hardware Springs & Tiny Rivets

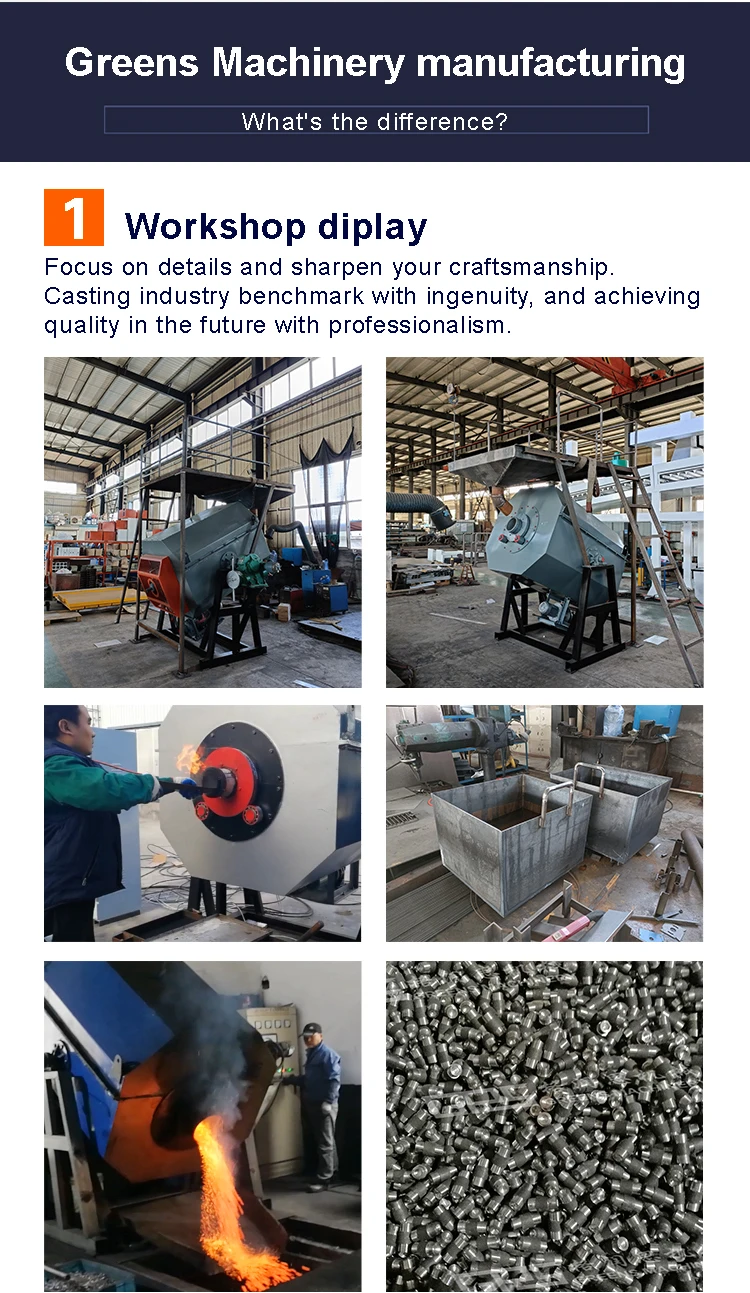

Workshop Display & Finished Fastener Samples

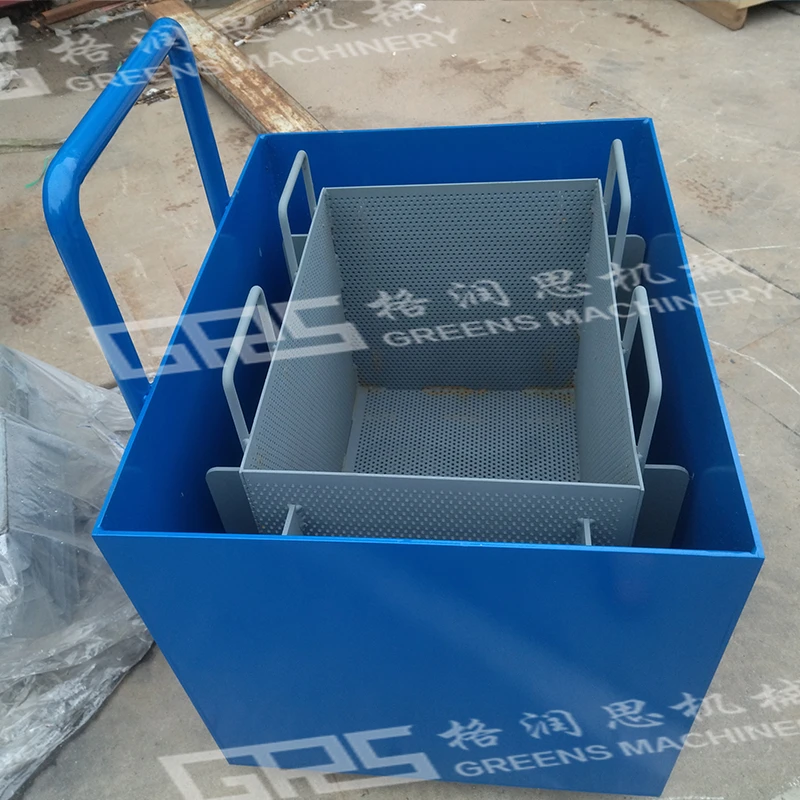

All units pass strict factory running inspection, including real high-temperature heating test, automatic tilting discharge demonstration, matched quenching tank accessories and mass finished fastener samples, fully verifying stable long-term heat treatment performance for bulk production.
