Full Screw Production Processing Line
Fully Automatic High Speed Wire Nail Making Machine
Office Staple Pin Forming & Automatic Packing Production Line

Automatic Coil Nail Making Machine | High Speed PLC Coil Nail Welding Equipment

Additional information

Please email us with your required specifications based on the above parameters. We will provide customized quotes and manufacturing according to your requirements.
E-mail： admin@grsjixie.com

Description

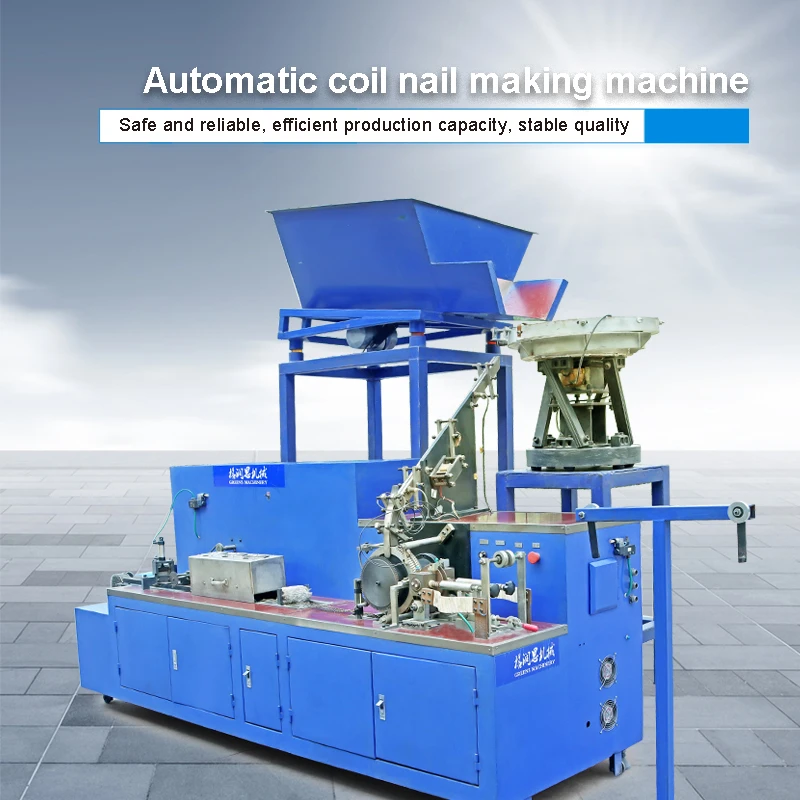

Automatic Coil Nail Making Machine

Safe and reliable, high-efficient and stable coil nail production equipment

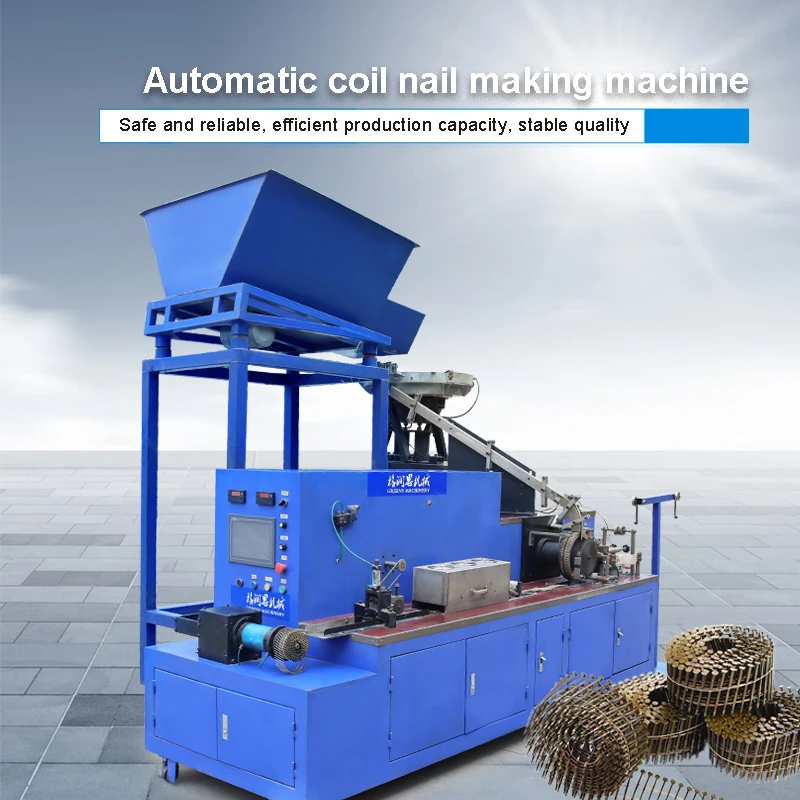

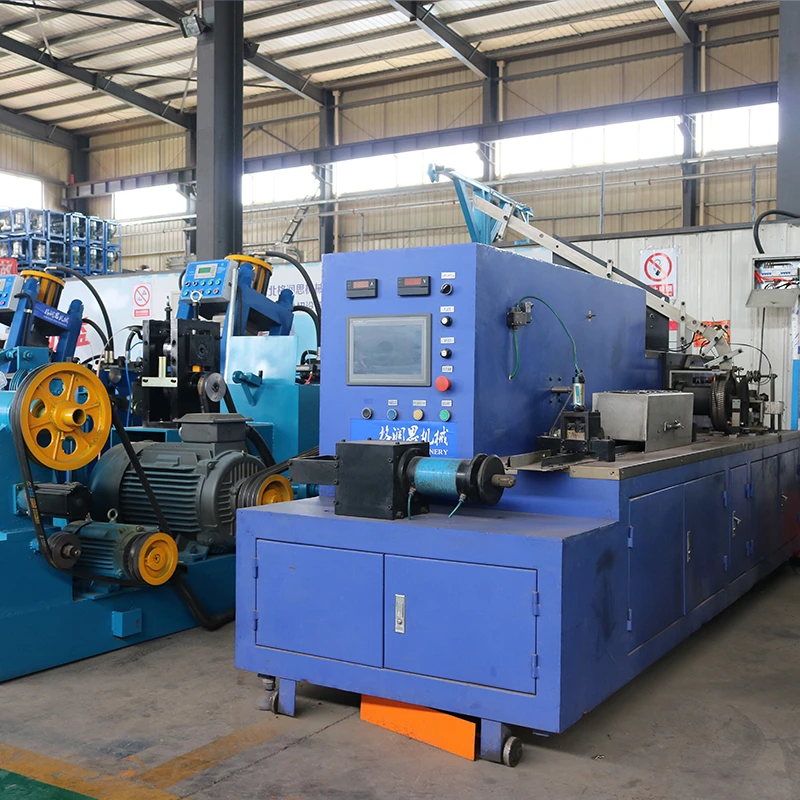

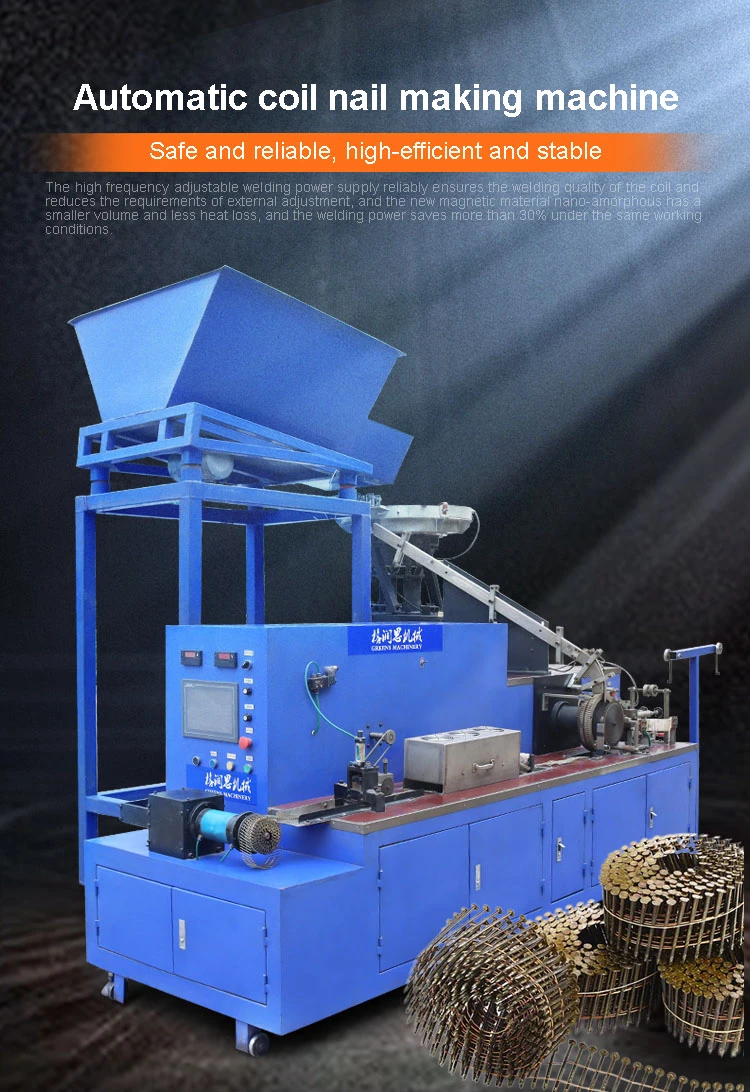

Automatic PLC Coil Nail Making Machine Full Unit

Equipped with adjustable high frequency welding power supply to guarantee stable coil nail welding quality. Adopts new nano-amorphous magnetic material for smaller volume & 30% less power consumption under identical working conditions.

Configuration Parameters

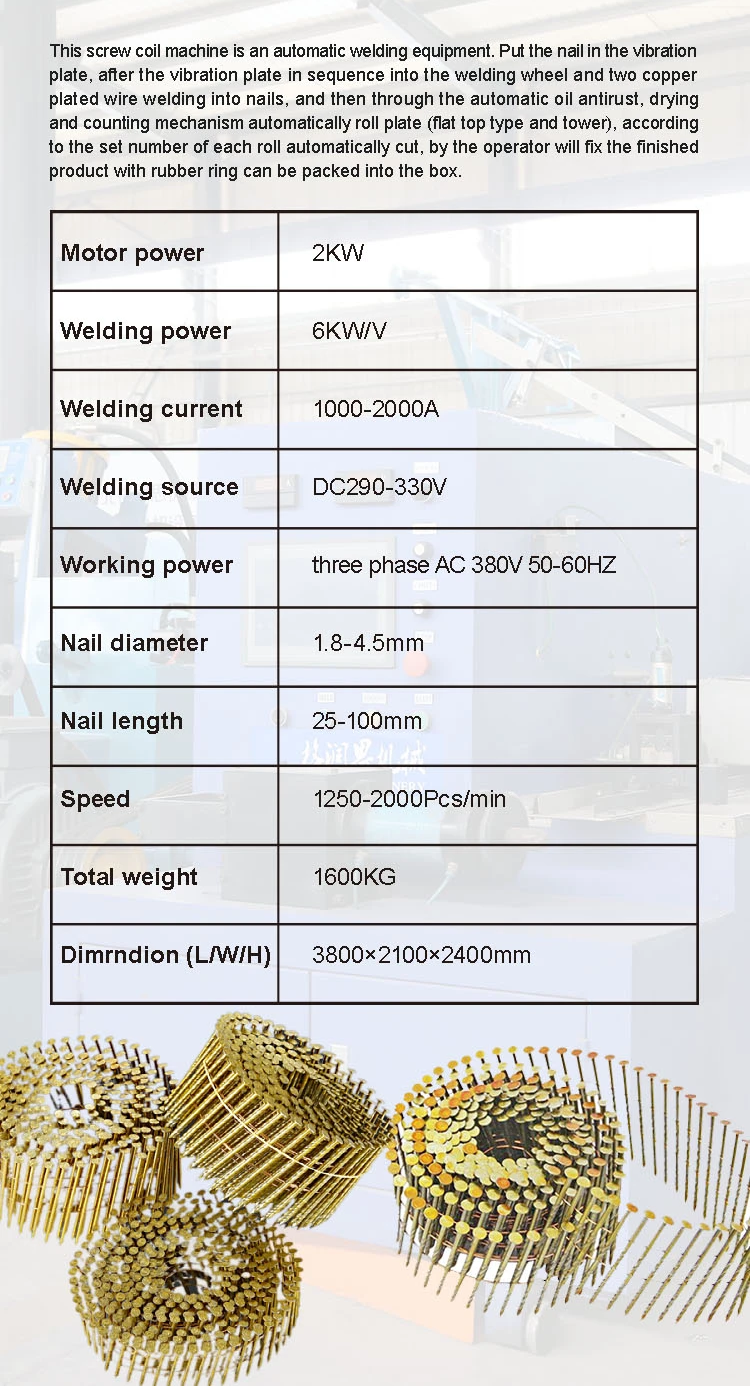

Coil Nail Machine Technical Specification Parameters
  • Motor Power: 2KW
  • Welding Power: 6KW/V
  • Welding Current: 1000-2000A
  • Welding Source: DC290-330V
  • Working Power Supply: Three Phase AC 380V 50-60HZ
  • Applicable Nail Diameter: 1.8-4.5mm
  • Applicable Nail Length: 25-100mm
  • Production Speed: 1250-2000 Pcs Per Minute
  • Total Machine Weight: 1600 KG
  • Overall Dimension(L*W*H): 3800×2100×2400 mm

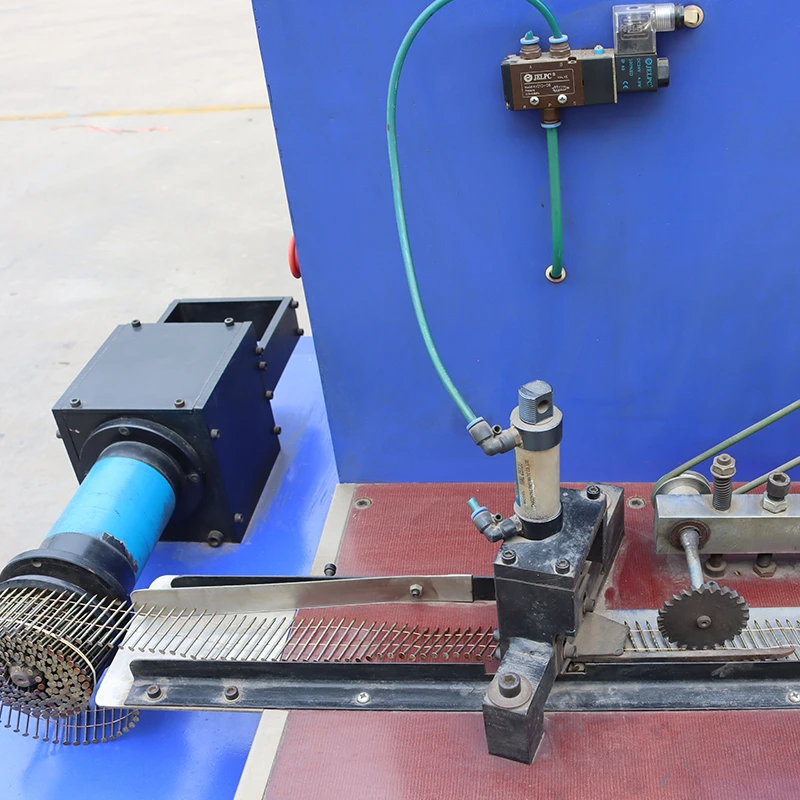

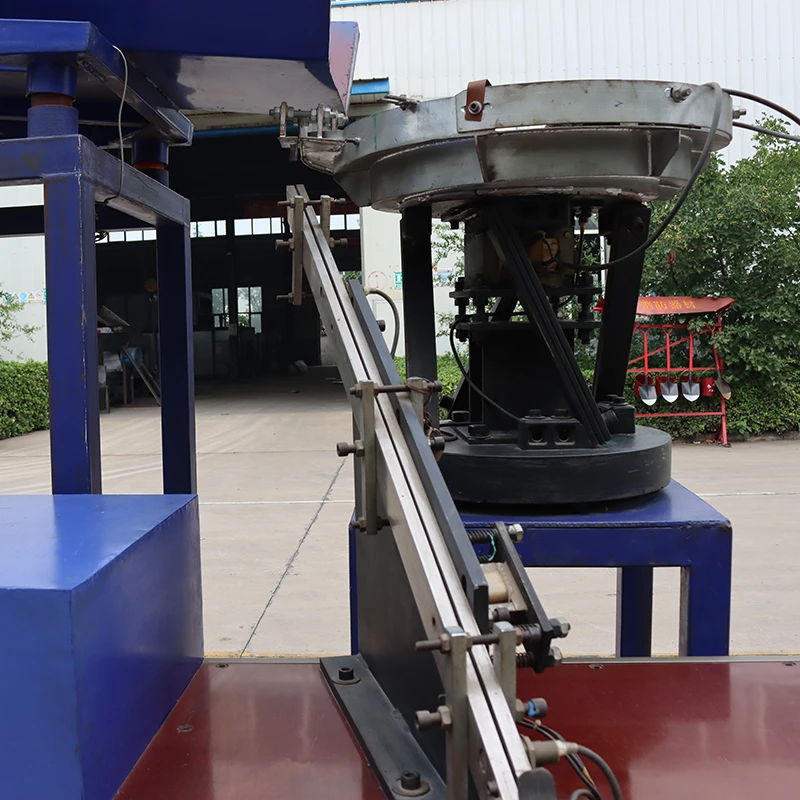

This fully automatic coil nail welding machine feeds nails via vibration plate, arranges nails in order, welds two copper wires to connect nails into strips, then proceeds automatic anti-rust oil coating, drying, counting, coiling and fixed-length cutting. Finished coil nails can be packed directly after fixing with rubber rings.

Product Details Display & Core Advantages

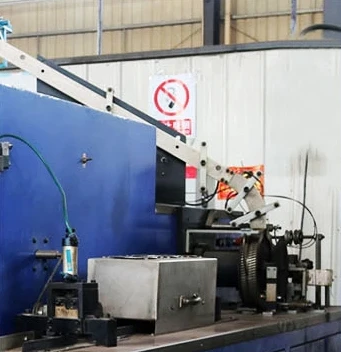

Thickened Stainless Steel Elbow Guide Rail Structure

01. Premium Material & Optimized Frame

  • Thickened stainless steel bending elbow structure
  • Effectively reduce nail jamming & lagging, extend service life
  • Liftable guide rail for easy nail jam cleaning & maintenance
  • Optimized cutting unit to lower nail cutting failure rate, prolong cylinder lifespan

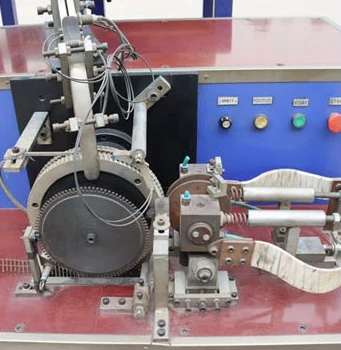

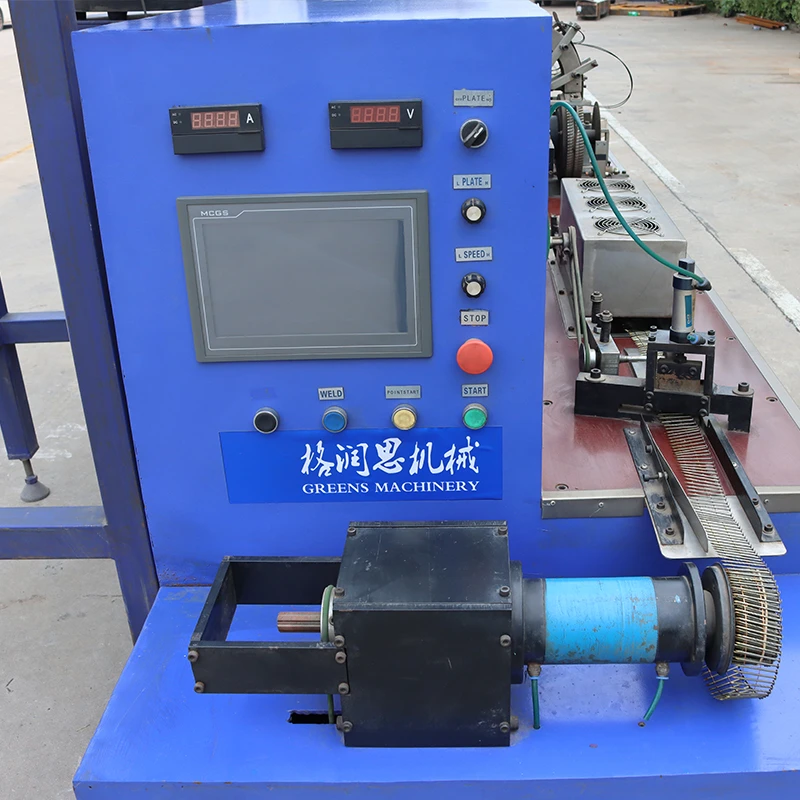

Bearing Nail Wheel Assembly With Missing Nail Sensor

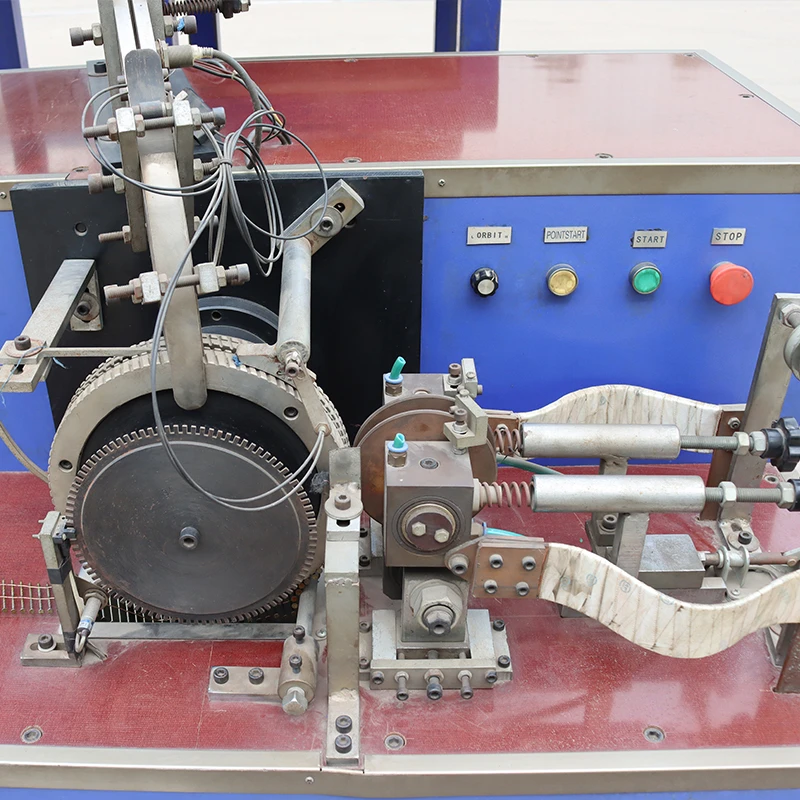

02. Stable Nail Bearing Wheel Assembly

Equipped with missing nail detection sensor, simple operation and outstanding running stability during continuous production.

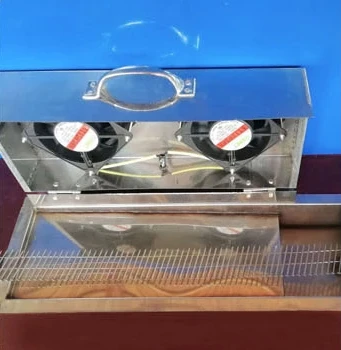

Recycleable Anti-rust Lacquer Drying System

03. Recycleable Lacquer Drying System

Built-in recyclable paint tank to recover anti-rust coating liquid, greatly cut down raw material cost.

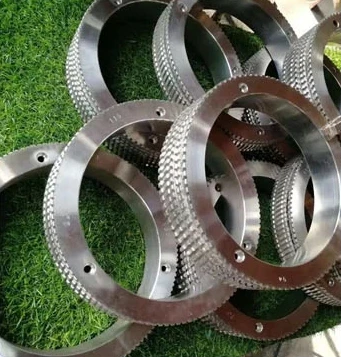

Interchangeable Multi-spec Nail Rolling Wheel Molds

04. Interchangeable Nail Rolling Molds

Customizable nail bearing wheel molds compatible with various specifications & types of iron nails.

Whole Coil Nail Production Process Flow

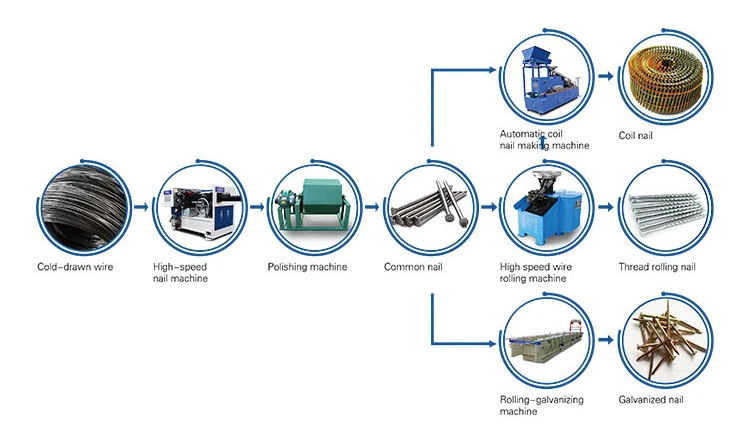

Full Cold Drawn Wire to Finished Coil Nail Production Line Flow Chart

Complete Manufacturing Route:

Cold Drawn Wire → High Speed Nail Making Machine → Polishing Machine → Finished Straight Nails

Branch 1: Straight Nails → Automatic Coil Nail Making Machine → Finished Coil Nails

Branch 2: Straight Nails → High Speed Thread Rolling Machine → Threaded Coil Nails

Branch 3: Straight Nails → Rolling Galvanizing Machine → Anti-corrosion Galvanized Nails

Wide Application Scenarios of Coil Nails

Coil Nails Used in Decoration, Pallet, Wooden Box, Construction Industry
Home Appliance Disassembly & Recycling
Interior Construction & Decoration Industry
Wood Pallet Manufacturing
Export Wooden Packaging Box Production
Wooden Cable Reel Tray Making
Large Timber Frame & Outdoor Pavilion Construction

FAQ

General FAQ for Common & Coil Nail Production Line

Q1: What types of nails can machines in this category produce?

A: Our machinery manufactures standard smooth straight wire nails, as well as smooth shank, ring shank and screw shank coil nails. They are widely applied to fastener manufacturing for construction, wooden pallets, roofing and woodworking industries.

Q2: What range of nail sizes can the machines adjust to?

A: Nail length is adjustable from 15mm to 100mm, compatible with international standard wire gauges. All operating parameters can be modified in one click via the control cabinet.

Q3: What raw materials are suitable for nail production?

A: Q195/Q235 low carbon steel wire is our standard raw material with outstanding cost performance for mass production. Custom special steel is also available for manufacturing high-tensile industrial nails.

Q4: What is the output per minute for different machine models?

A: Conventional nail makers deliver 300–600 pieces per minute; PLC high-speed nail machines achieve higher productivity. The coil nail welding unit runs stably at 1200–2800 pieces per minute for bulk manufacturing.

Q5: Can you customize machines to fit local market requirements?

A: Customization services cover applicable wire range, nail length and automation grades. Optional ring & screw shank forming modules are available to satisfy mainstream markets across Europe, America, Southeast Asia and the Middle East.

Q6: What brands are used for motors and electric controls? What voltages are supported?

A: Top-tier domestic motors, inverters and PLCs are equipped as standard. International electrical components like Siemens and Schneider can be upgraded for EU & US orders. All machines support global industrial voltages: 220V / 380V / 415V.

Q7: What is the production lead time for standard orders?

A: Standard machines take 15–25 days for production & delivery. Orders with imported electric parts or special customized specifications require 30–40 days lead time.

Q8: What export packaging do you use? Can you provide full customs clearance documents?

A: Single machines are packed in reinforced IPPC fumigated wooden cases to avoid impact and moisture during sea shipment. We supply full clearance documents including fumigation certificate, packing list, proforma invoice and certificate of origin.

Q9: How long is the machine warranty? Is it convenient to purchase spare parts later?

A: A 12-month whole machine warranty is provided, excluding man-made damage and consumable wearing parts. Full original spare parts are kept in stock permanently, shipped by sea or international courier, with online video remote troubleshooting support.

Q10: How to complete installation, commissioning and operator training after machine arrival?

A: Complete English installation drawings, operation manuals and maintenance tutorial videos are delivered together with machines. If overseas on-site service is needed, our professional engineers will travel abroad to complete installation, commissioning and one-on-one hands-on training for workshop operators.
