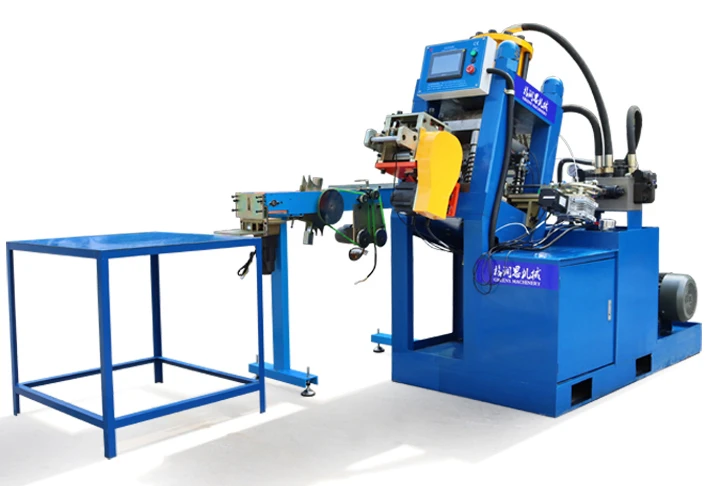

NEW TYPE HYDRAULIC STAPLE FORMING MACHINE
25 Years Manufacturing Experience | ISO Certified
Key Advantages
- ✅ Advanced Hydraulic Technology
- ✅ High Production Efficiency
- ✅ Low Failure Rate
- ✅ Easy PLC Touchscreen Operation
- ✅ Superior Performance & Stability
Product Details Introduction

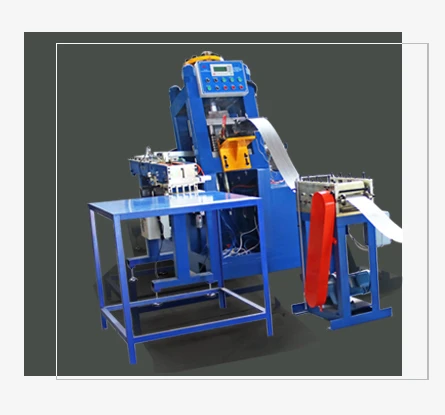

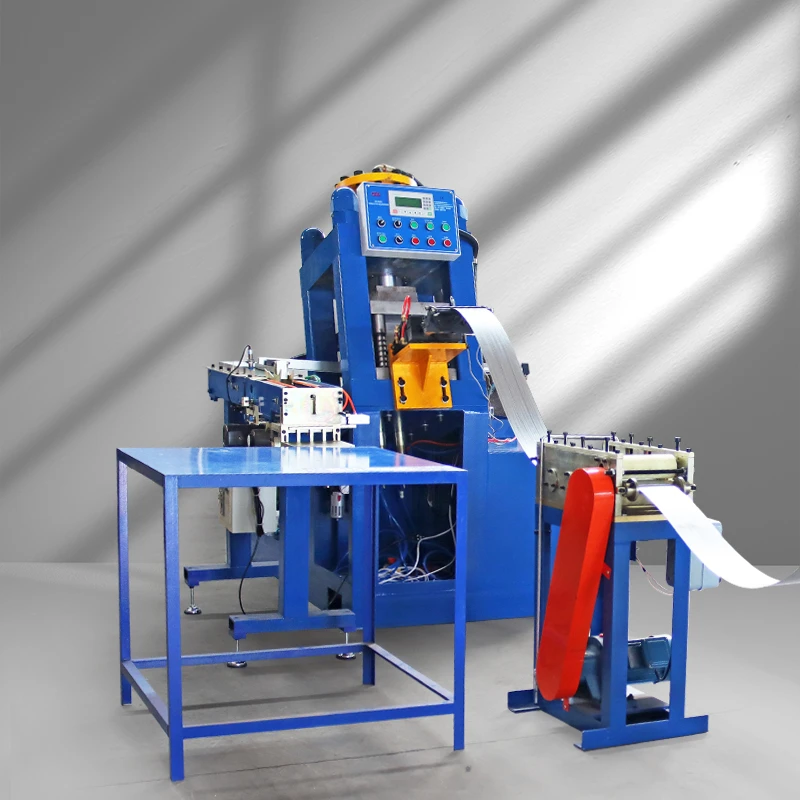

This new type hydraulic staple forming machine abandons traditional heavy punch design. It adopts an oil pressure system as the executive component, combined with PLC microcomputer centralized control. Features include safe operation, stable performance, low noise, and significantly improved nail-forming speed compared to conventional punch forming machines.
PLC Touch Screen
Stable performance, simple operation

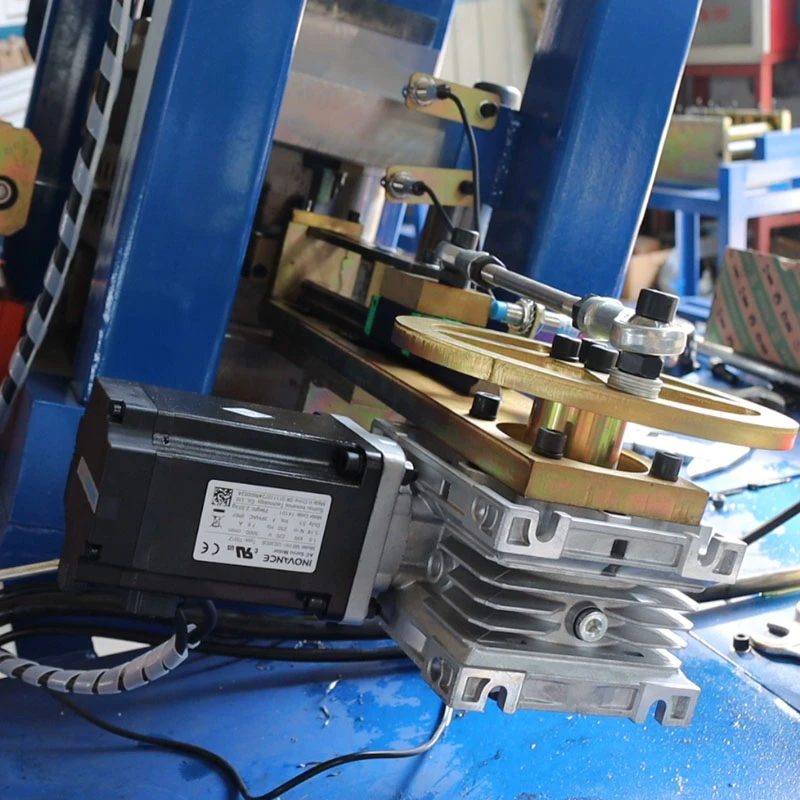

Servo Feeding Device
High accuracy, low noise, high speed
Precision Moulds
Cutter, charge sheet, forming block & more
Hydraulic System
Stable performance, safe & reliable

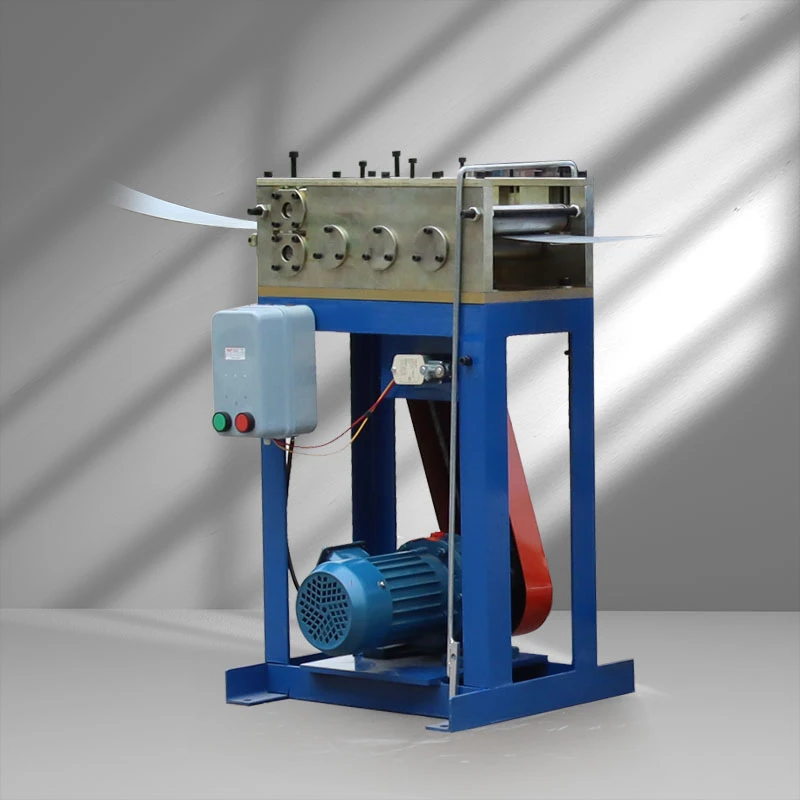

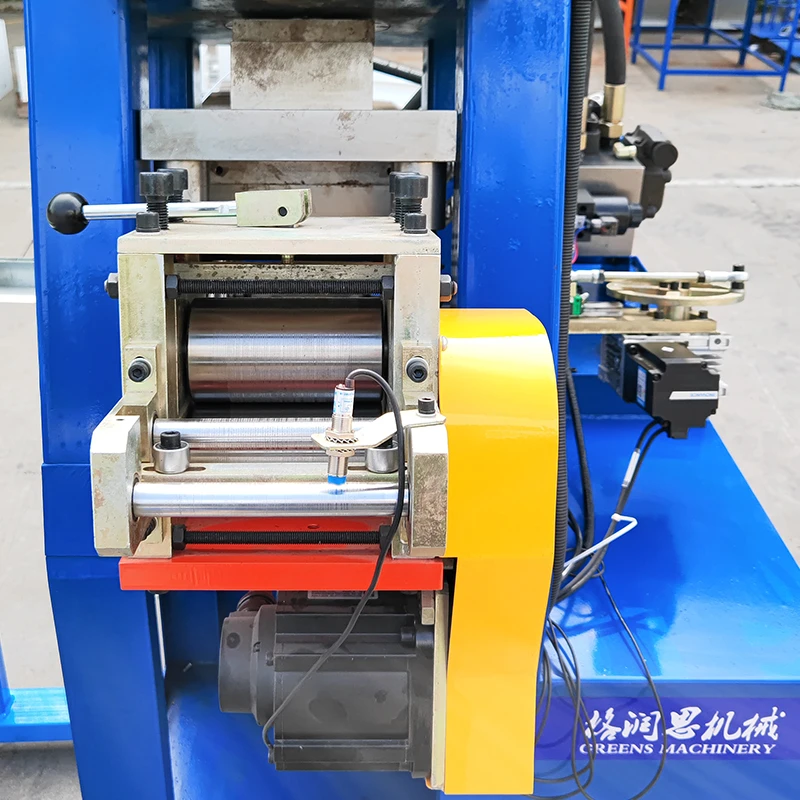

Traction Calibration Unit
Straightening & feeding accuracy

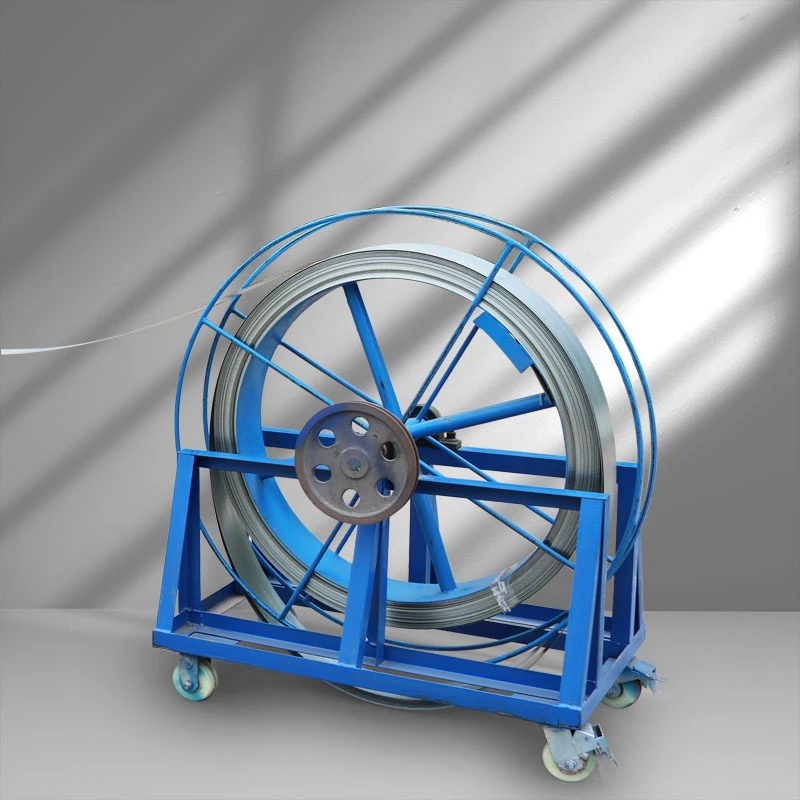

Wire Band Feeding
Continuous raw material supply
Configuration Parameters
N / K Type Forming Machine
- Motor Power: 5.5KW
- Production Speed: 80–110 pcs/min
- Machine Weight: 1800 KG
- Dimensions: 1700 × 1700 × 1500 mm
J Type Forming Machine
- Motor Power: 5.5KW
- Production Speed: 80–130 pcs/min
- Machine Weight: 1500 KG
- Dimensions: 1700 × 1700 × 1500 mm

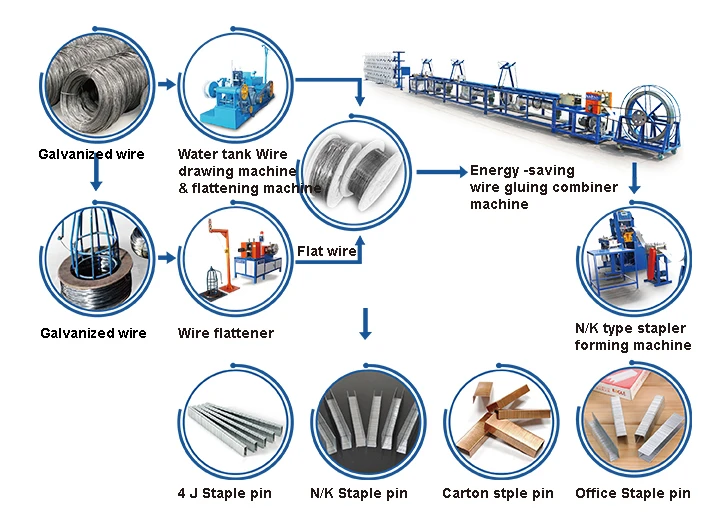

Production Flow Chart
This machine is designed for manufacturing pneumatic staple pins and related nail products, widely used in furniture, wooden packaging, and shoe industries. It replaces traditional manual methods, helping you improve production efficiency, save labor costs, and speed up workflow progress.
Finished Staple Specifications

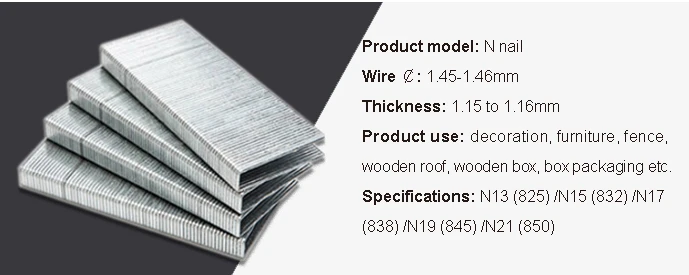

N Type Staple Nails
- Wire Diameter: 1.45–1.46mm
- Thickness: 1.15–1.16mm
- Use Cases: Decoration, furniture, fences, wooden roofs, box packaging
- Specifications: N13 (825), N15 (832), N17 (838), N19 (845), N21 (850)

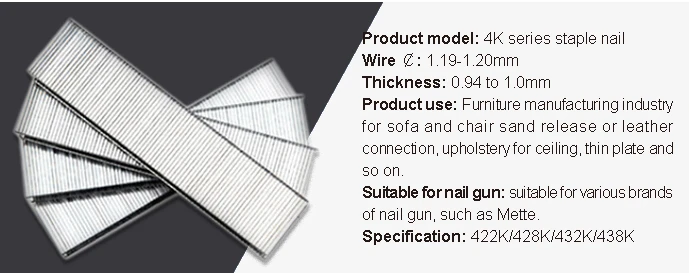

4K Series Staple Nails
- Wire Diameter: 1.19–1.20mm
- Thickness: 0.94–1.0mm
- Use Cases: Furniture manufacturing, sofa/chair upholstery, leather connection, ceiling decoration
- Specifications: 422K, 428K, 432K, 438K

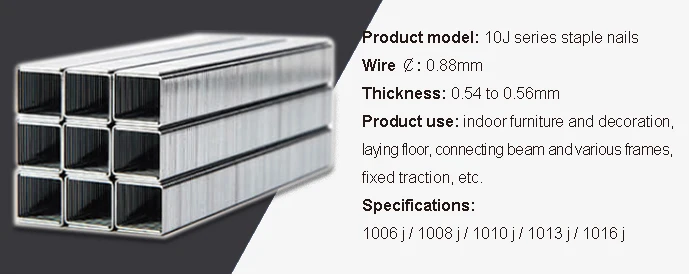

10J Series Staple Nails
- Wire Diameter: 0.88mm
- Thickness: 0.54–0.56mm
- Use Cases: Furniture, decoration, flooring, beam connection, frame fixing
- Specifications: 1006J, 1008J, 1010J, 1013J, 1016J

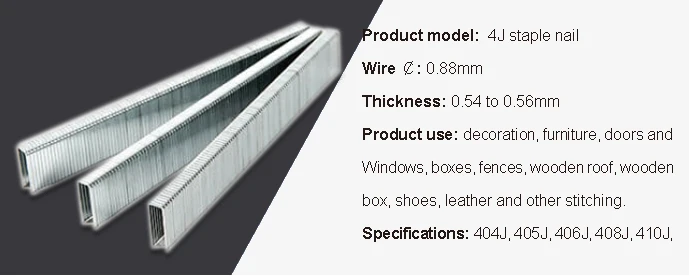

4J Series Staple Nails
- Wire Diameter: 0.88mm
- Thickness: 0.54–0.56mm
- Use Cases: Decoration, furniture, doors/windows, boxes, fences, wooden structures, shoe & leather stitching
- Specifications: 404J, 405J, 406J, 408J, 410J
Range of Application
Joinery & Packaging
Fence Construction
Fabric & Upholstery
Shelving & Furniture
