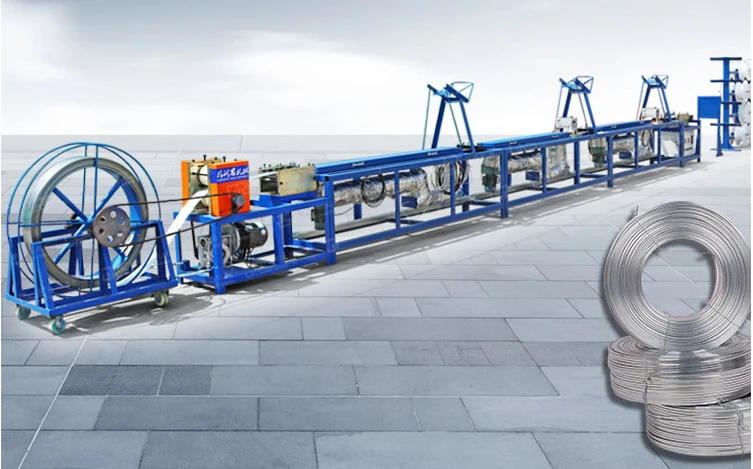

Wire Combining Machine | Electromagnetic Heating Type
This wire combining machine (also called wire splicing machine) adopts dual air & water cooling system, high efficiency, energy saving and automatic stop function for wire breakage. Ideal for collated nail production line.
Key Features of This Wire Combining Machine

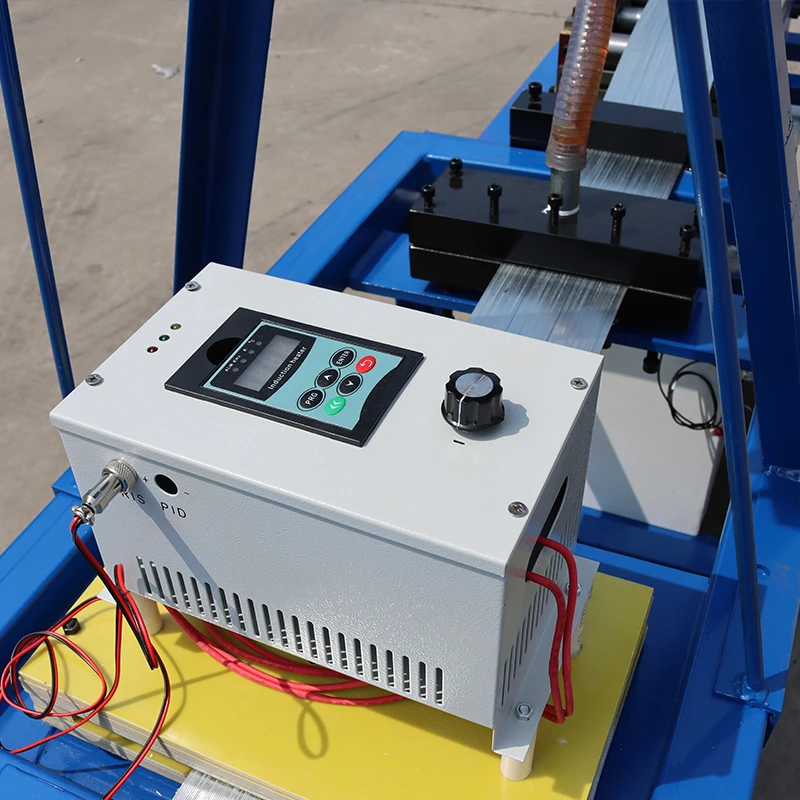

- Electromagnetic heating design for stable and even wire bonding
- Dual air and water cooling system for continuous operation
- 6-20m/min adjustable speed to match different production needs
- 50-150mm combining width for various nail strip specifications
- Automatic wire break stop to reduce material waste
Technical Parameters of the Wire Combining Machine
High Efficiency & Energy Saving | Dual Cooling System

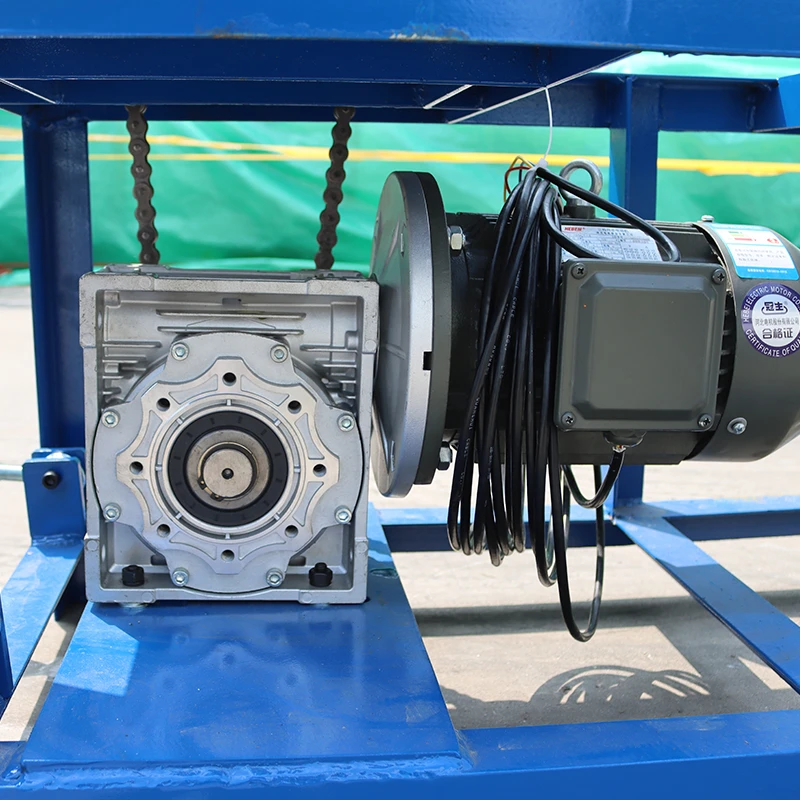

| Motor Power | 18KW |
| Running Speed | 6-20m/min |
| Combining Width | 50—150mm |
| Machine Weight | 1500KG |
| Overall Dimension | 2500*1000*1700mm |
Structure & Details of the Wire Splicing Machine
Professional Components & Working Process
01

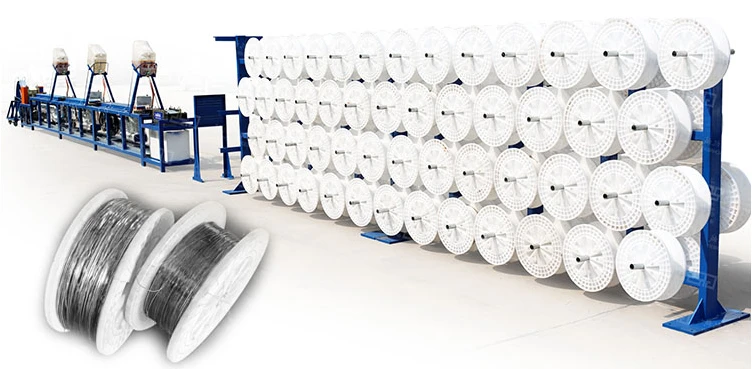

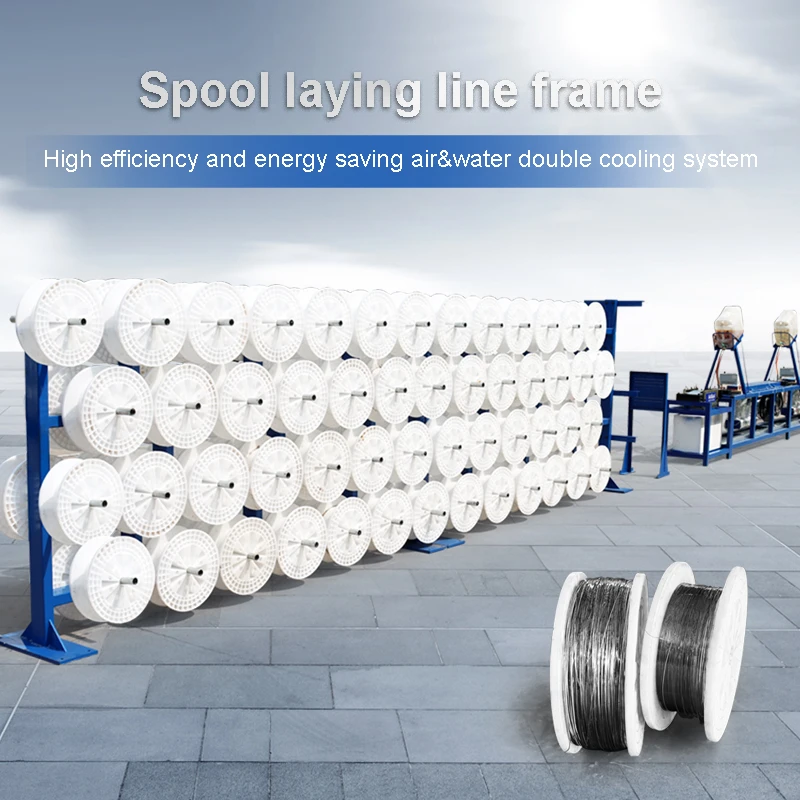

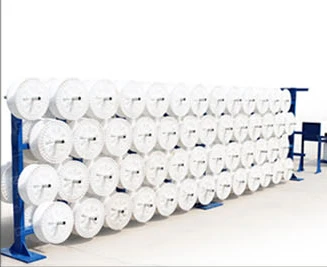

Wire Pay-off Frame
Place the flattened wire spools on the shaft of pay-off frame one by one. Secure with pins to prevent falling off during the operation of the wire combining machine.
02

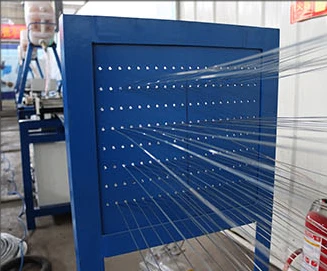

Wire Creel Stand
1. Guide wires through 4-layer wire columns in order, 5~10 wires per group for the wire combining machine.
2. Thread all wires sequentially through the creel stand to ensure stable feeding.
03

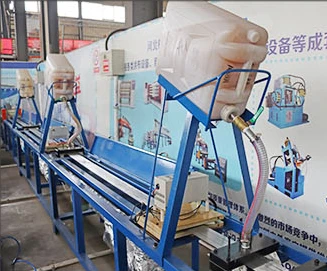

Gluing System (A1/A2/B Glue)
A1, A2 and B glue are used for bonding wires during the combining process of the wire combining machine.
Notice: B glue is flammable. Strict fire prevention required.
04

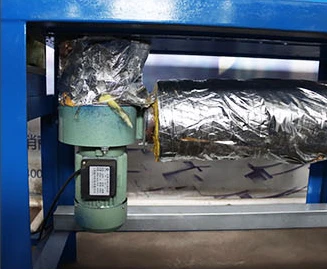

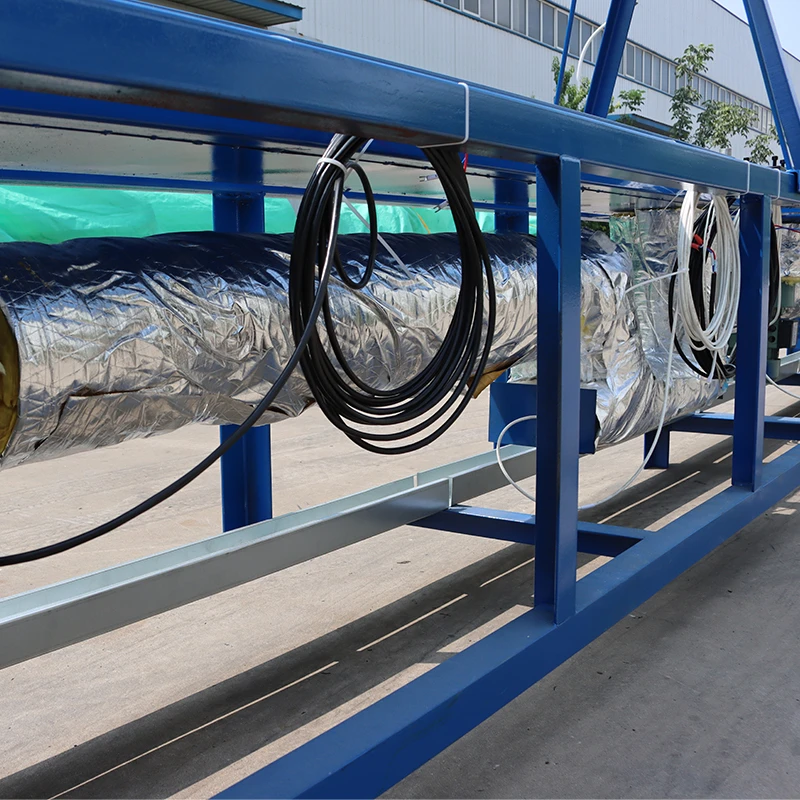

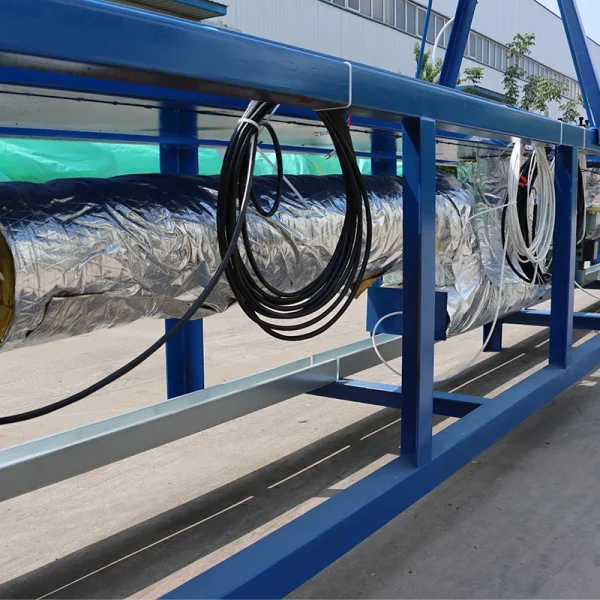

Hot Air Circulation System
Equipped with fan circulation air supply, which provides even and efficient heating for glued wire strips in the wire combining machine.
05

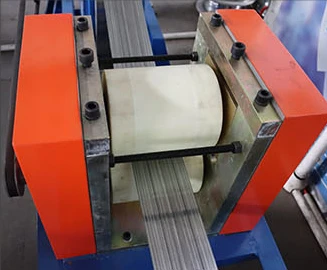

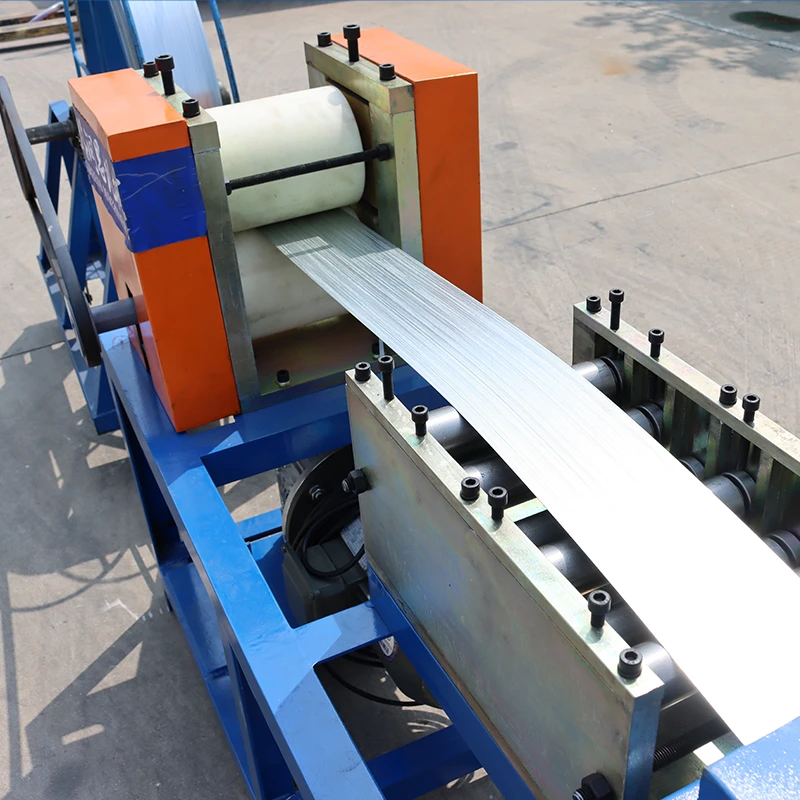

Wire Traction Frame
After heating and drying by hot air system, the finished wire strips are transported and collected by traction frame smoothly from the wire combining machine.
