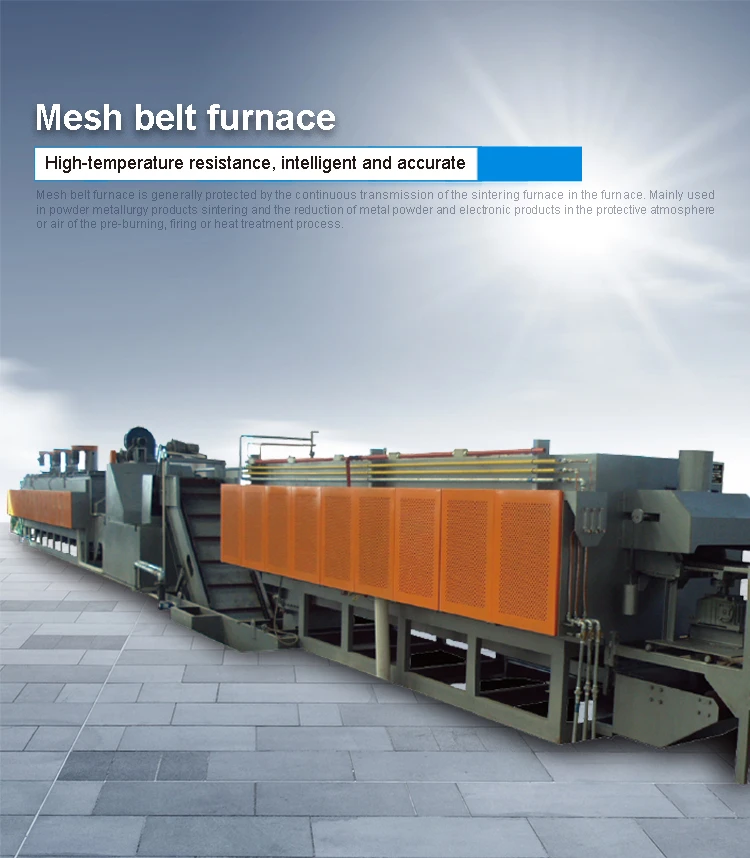

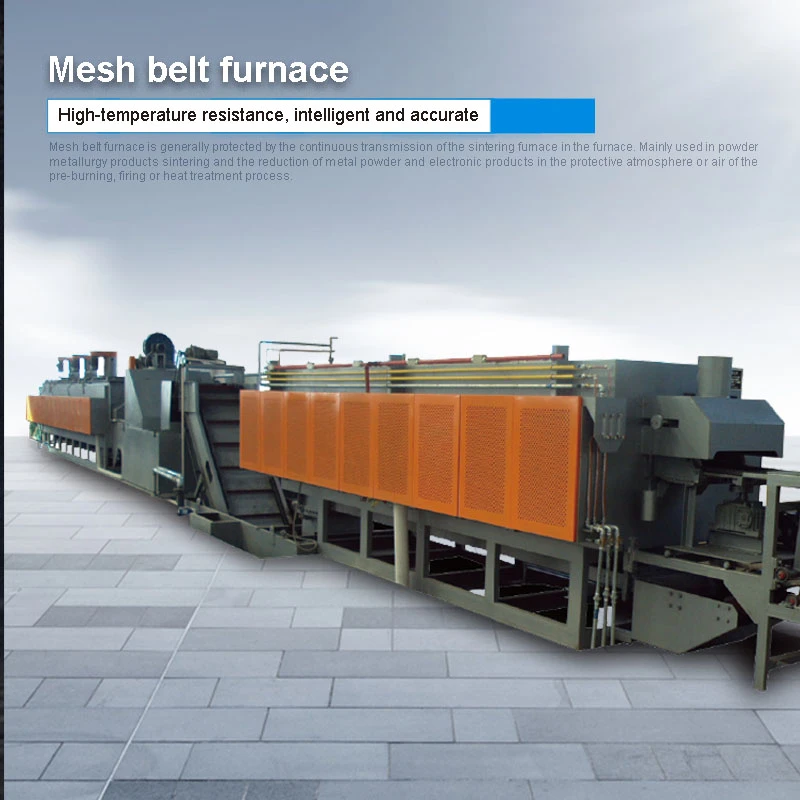

Universal Continuous Mesh Belt Heat Treatment Furnace
This fully continuous mesh belt heat treatment furnace is universally applicable to all kinds of nails, screws and small metal fastener parts. Equipped with independent intelligent temperature control system and energy-saving fiber lining, it achieves automatic feeding, heating, quenching and tempering in one single line, delivering consistent workpiece hardness and stable mass production capacity.

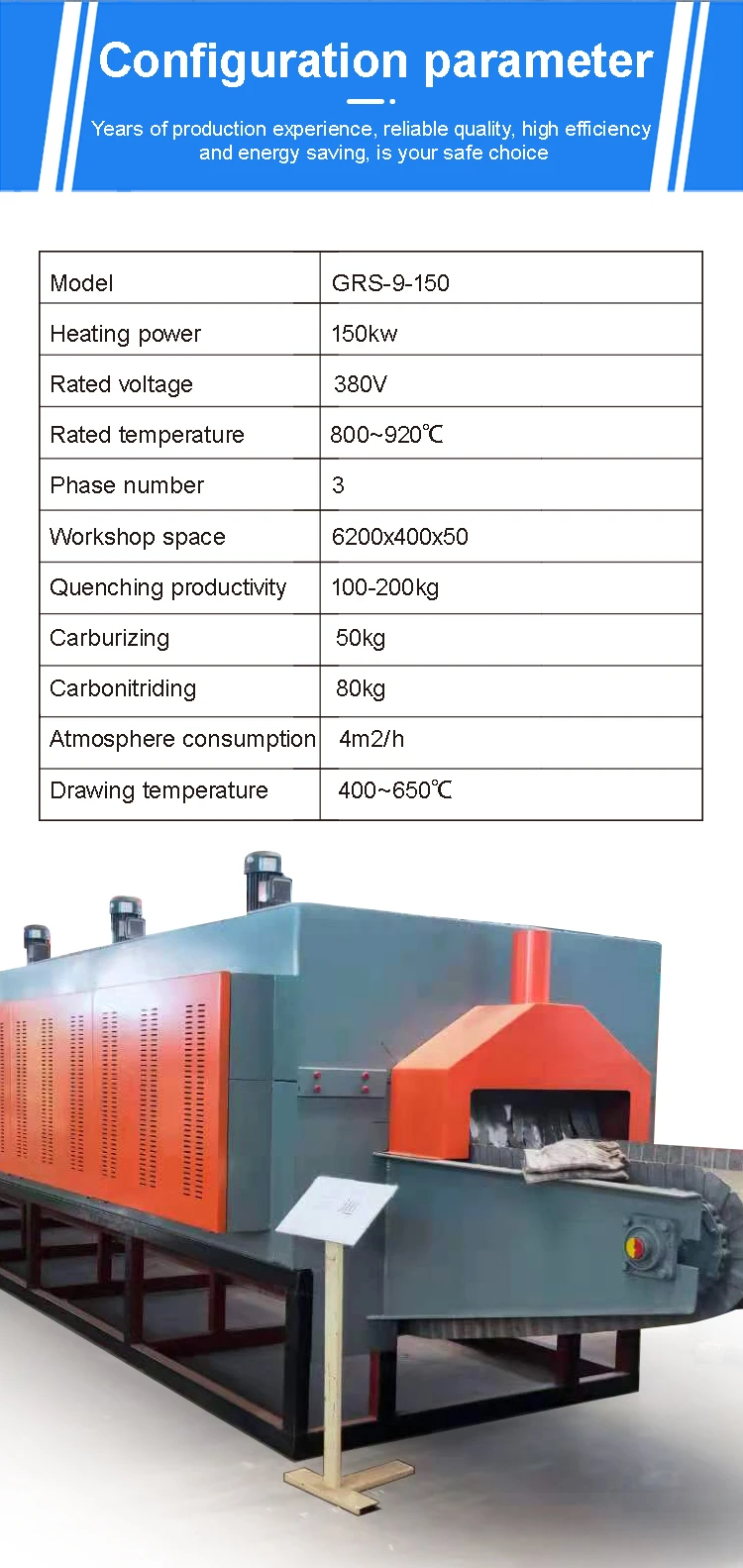

Product Technical Configuration Parameters
- Industrial Power Supply: 380V, 3 Phase
- Quenching Heating Temp: 800℃ ~ 920℃
- Tempering Working Temp: 400℃ ~ 650℃
- Operation Mode: Fully Automatic Continuous Mesh Belt Conveying
- Continuous Hourly Output: 100-200kg/h Adjustable
- Max Carburizing Output: 50kg/h
- Carbonitriding Output: 80kg/h
- Protective Atmosphere Consumption: 4m³/h
We have more than 10 years of manufacturing experience for heat treatment equipment. All structural and performance parameters can be customized according to customers’ target production capacity and workpiece specifications, with energy-saving full fiber furnace lining to cut long-term power cost.

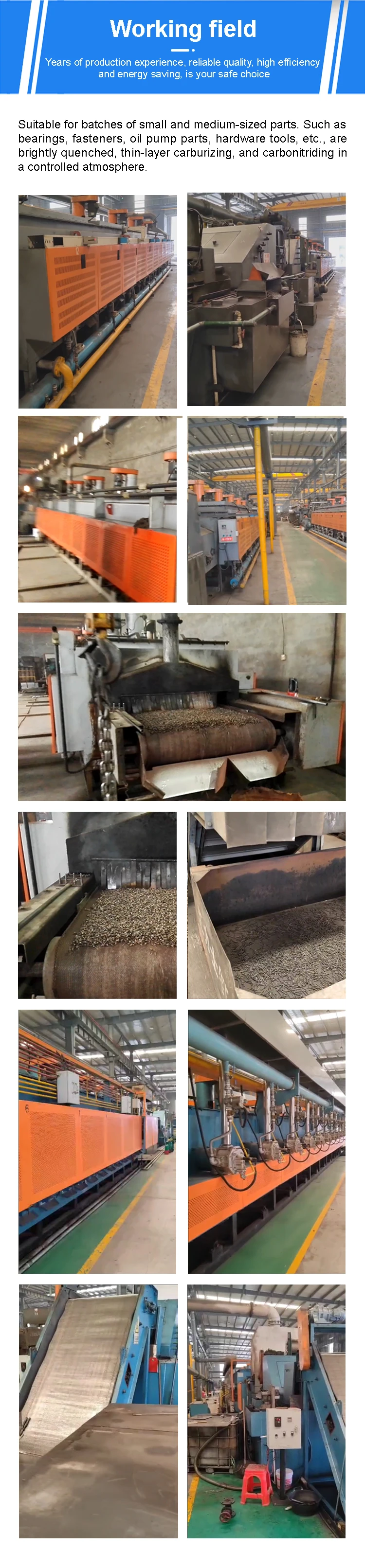

On-site Operation & Wide Application Details
Full Coverage of Applicable Workpieces
1. All kinds of nails: Round nails, concrete nails, corrugated nails, coil nails, staples, gas-powered nails, self-tapping screws, drill tail screws, threaded fasteners.
2. Standard fasteners: Bolts, nuts, rivets, flat & spring washers, miniature cold heading stamped parts.
3. Small metal hardware: Bearings, transmission springs, chain pins, pump accessories, powder metallurgy sintered components.
This universal mesh belt furnace supports bright non-oxidation quenching, thin-layer carburizing and carbonitriding under sealed protective atmosphere. Mesh width, furnace total length and mesh running speed are all adjustable to match different workpiece dimensions.

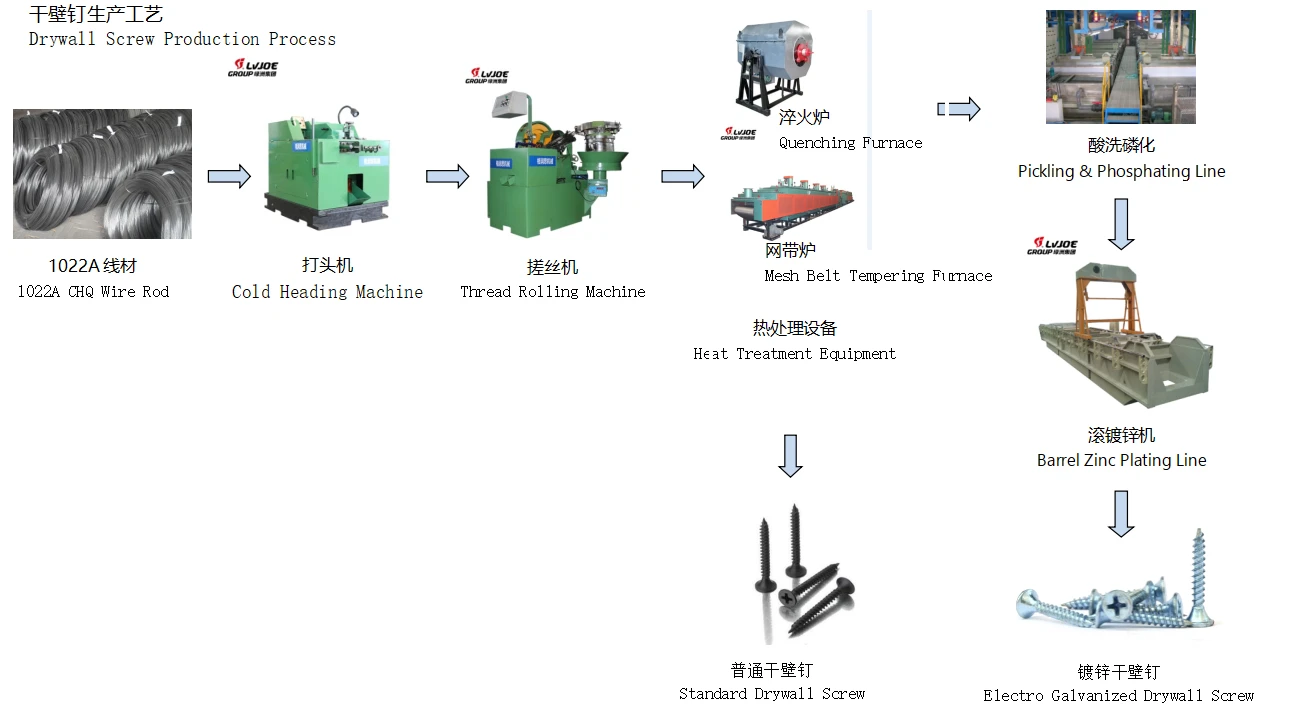

Complete General Fastener Manufacturing Process Flow
- High carbon steel wire rod raw material feeding
- Cold heading machine for workpiece head forming
- Thread rolling machine for screw & nail thread molding
- Core heat treatment station: quenching furnace + mesh belt tempering furnace
- Pickling & phosphating surface pre-treatment line
- Barrel electro-galvanizing anti-corrosion plating line
- Finished polished or galvanized nails & screw products
Mesh belt furnace serves as the core heat treatment equipment in all nail and fastener production lines. It effectively improves workpiece surface hardness, wear resistance and internal toughness, eliminating bending and breaking defects of finished fasteners.

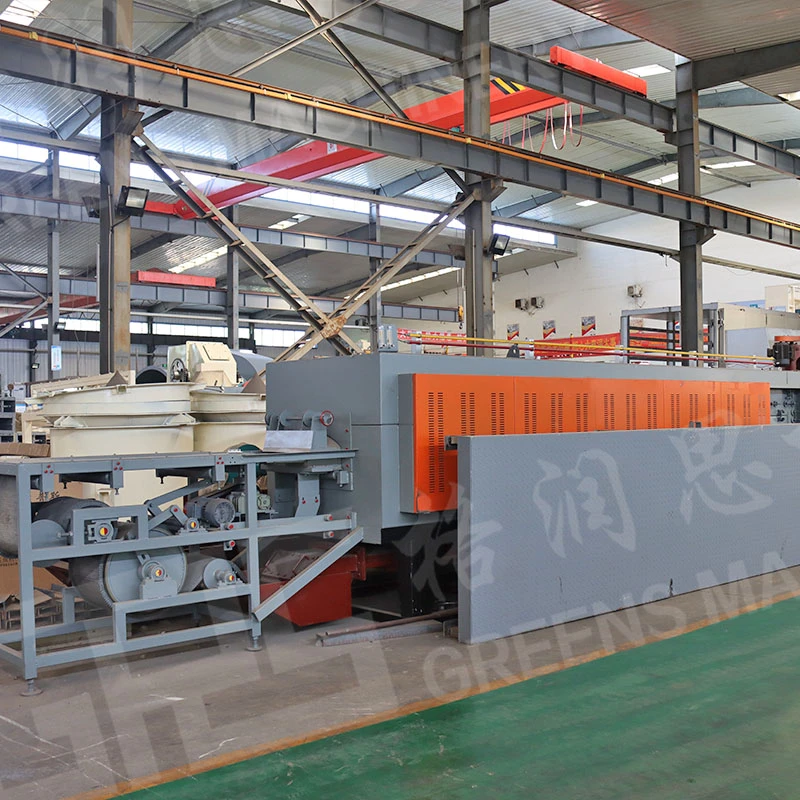

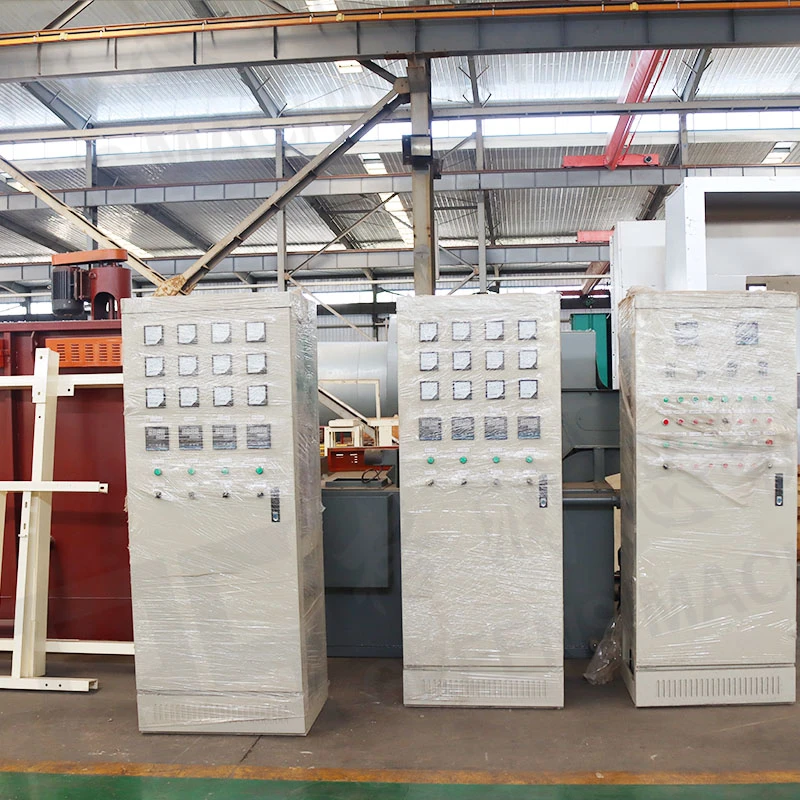

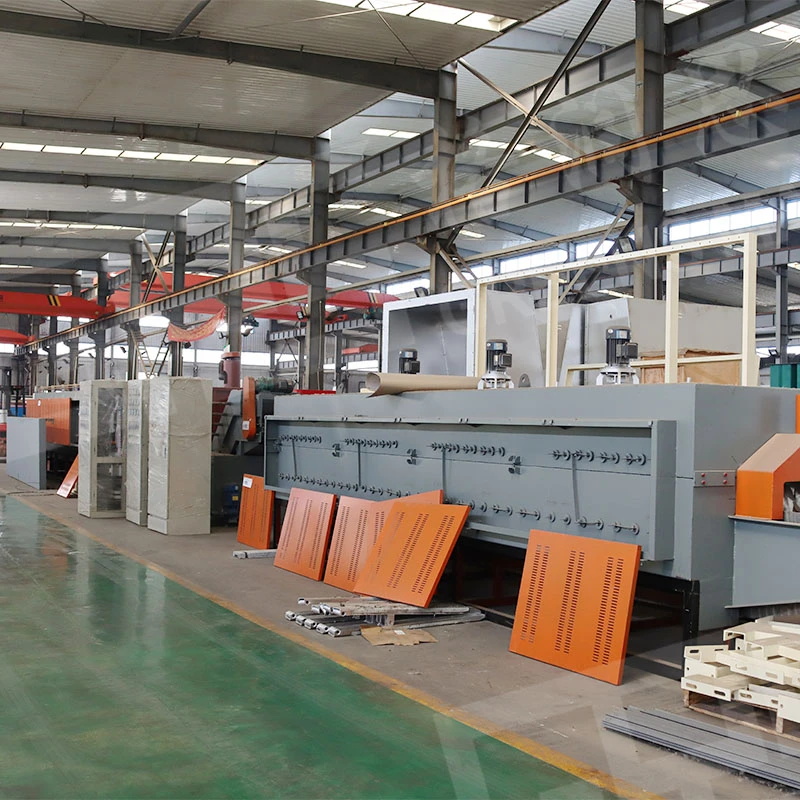

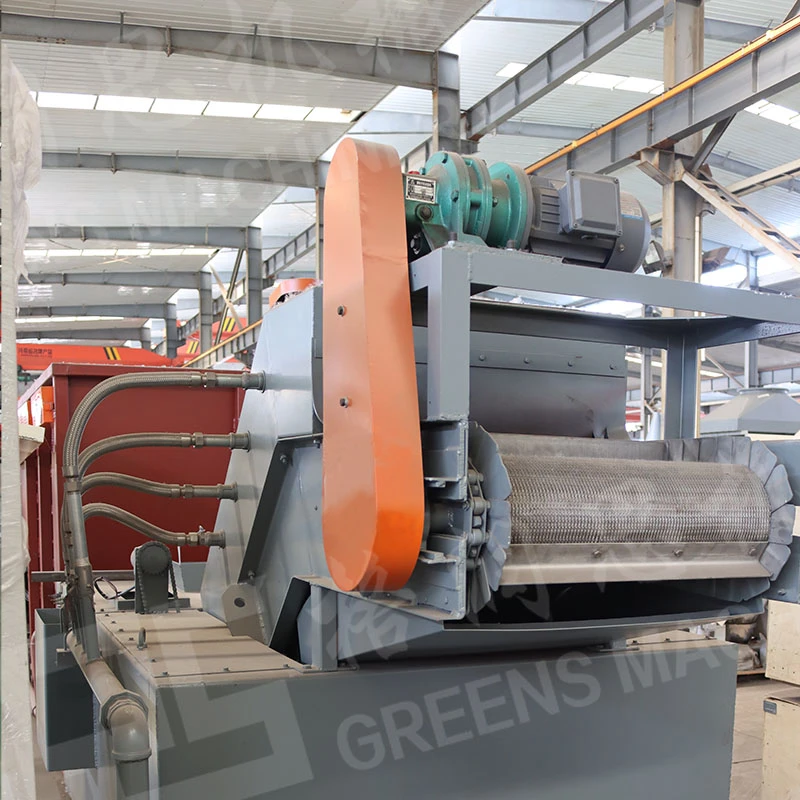

Workshop Complete Unit Display & Factory Strength
We pursue precise workmanship and strict quality control for every heat treatment machine, providing standard and custom solutions for global nail and fastener manufacturers. Complete furnace assemblies are stocked in our workshop, we offer flexible customization plans and fast lead time to satisfy diverse processing demands from worldwide buyers.
