Automatic Round Nail Making Machine for Common & Galvanized Steel Nails Production
Product Main Overview

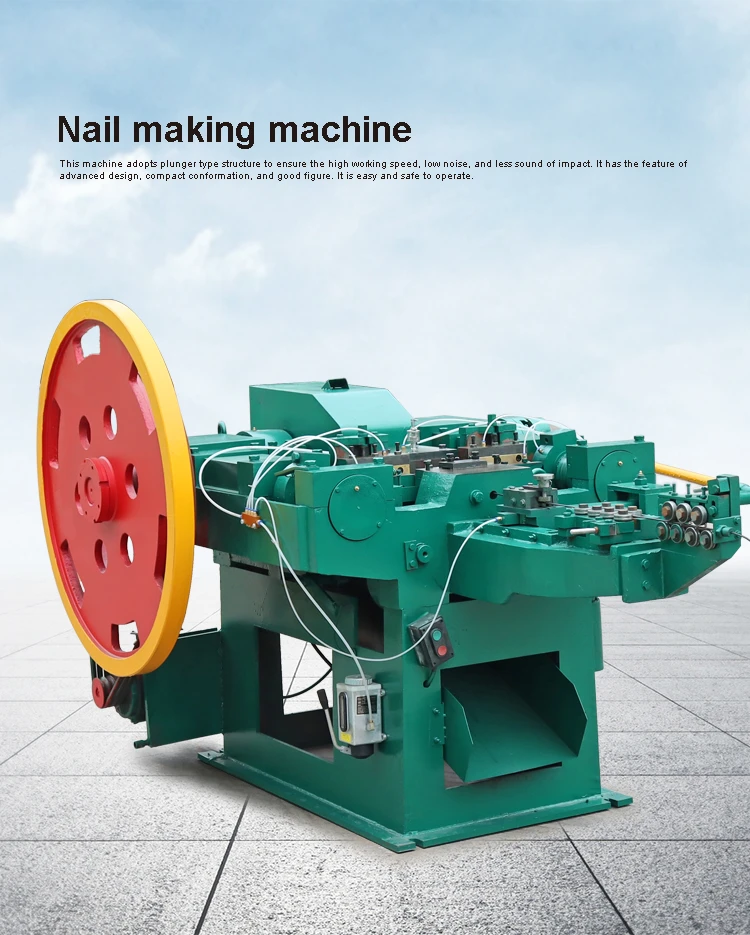

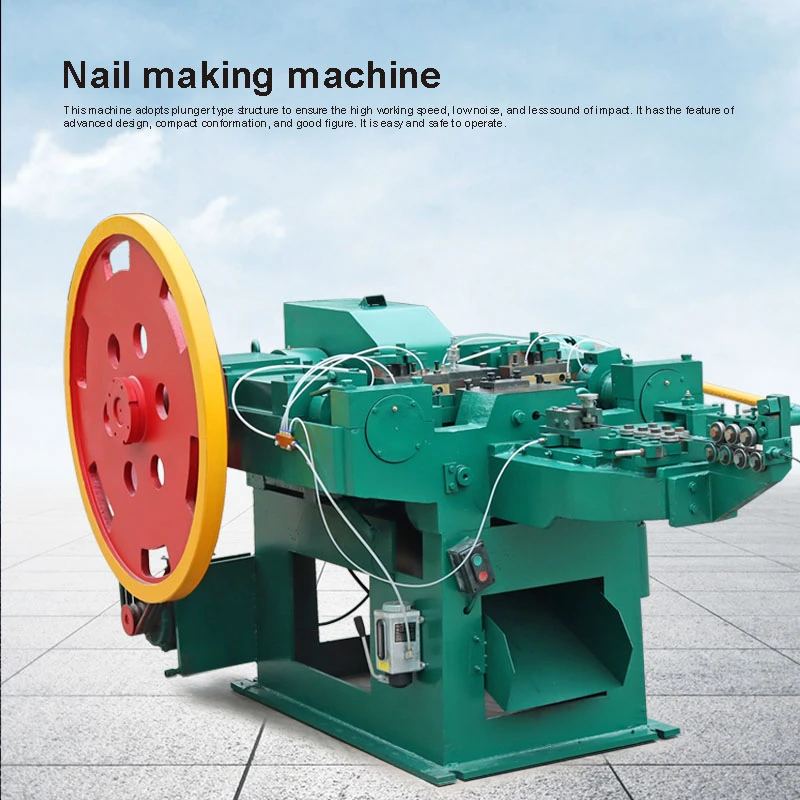

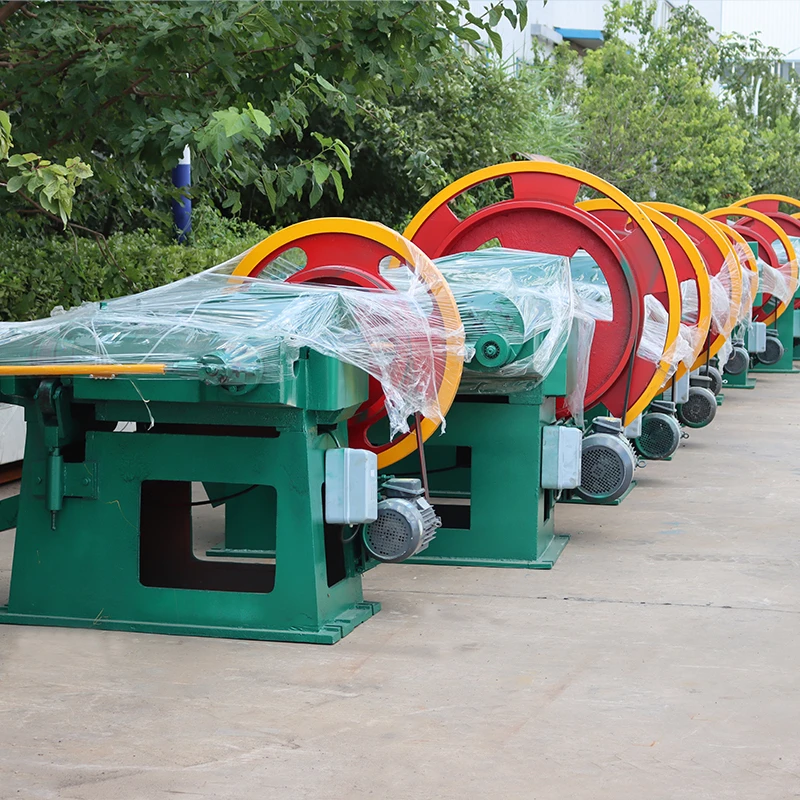

This round nail making machine adopts advanced plunger-type structure to ensure fast working speed, low running noise and weak impact vibration. It features streamlined compact layout, simple operation and high safety, perfectly suitable for mass production of various steel nails.

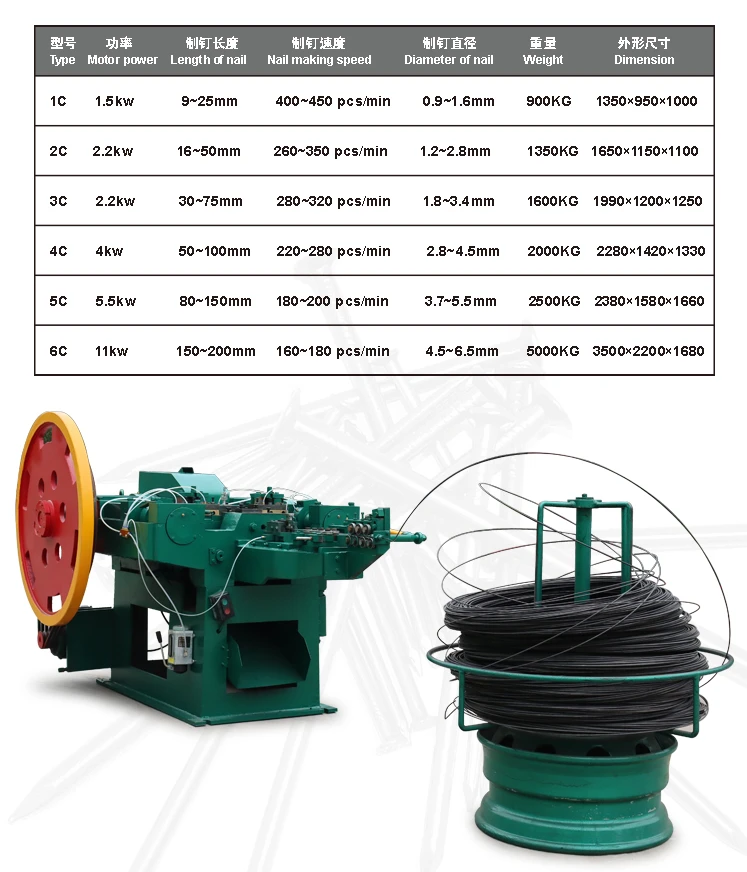

Machine Technical Specifications
Full Specification Range
- Motor Power: Optional power from 1.5kw to 11kw to match different production demands
- Processable Nail Length: Covers 9mm to 200mm to produce short fine nails and long heavy construction nails
- Production Speed: Output ranges from 160 to 450 pieces per minute based on nail dimension
- Processable Wire Diameter: Supports wire diameter from 0.9mm to 6.5mm for diverse nail thickness
- Machine Weight: Weight varies from 900KG to 5000KG for different production capacity
- Overall Dimension: Different outer sizes matching small workshop and large factory layout

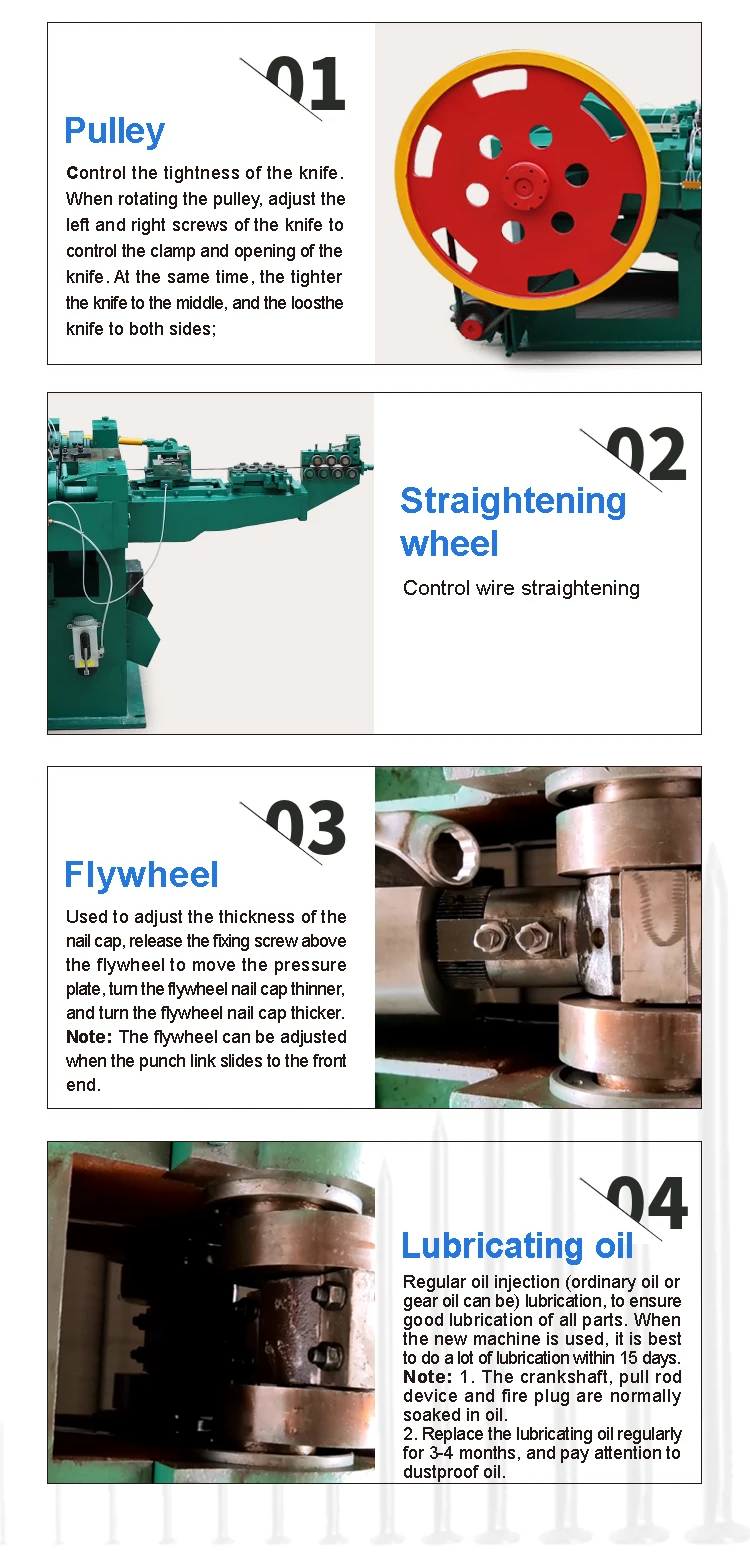

Machine Component Details
1. Adjustment Pulley
It controls cutter tightness. Rotate the pulley and adjust left-right screws to clamp or release the cutter; tighter setting moves cutter to center, looser setting spreads cutter to both sides.

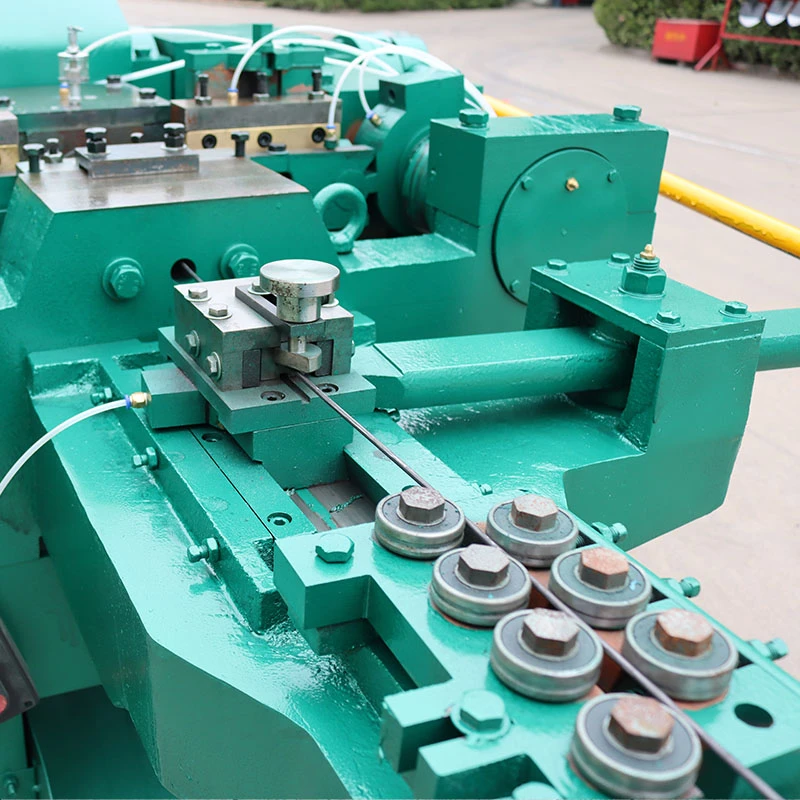

2. Wire Straightening Wheel
Special group rollers to straighten raw metal wire, guarantee flat wire feeding and uniform finished nail quality.
3. Main Flywheel
Adjust nail cap thickness. Loose top fixing screw, rotate flywheel to shift pressure plate; clockwise rotation makes thinner nail cap, counter-clockwise rotation makes thicker nail cap.
4. Lubrication System
Regular oil injection with ordinary machine oil or gear oil ensures full component lubrication. New machines require sufficient lubrication within the first 15 working days; replace lubricating oil every 3-4 months and keep dust-proof maintenance.

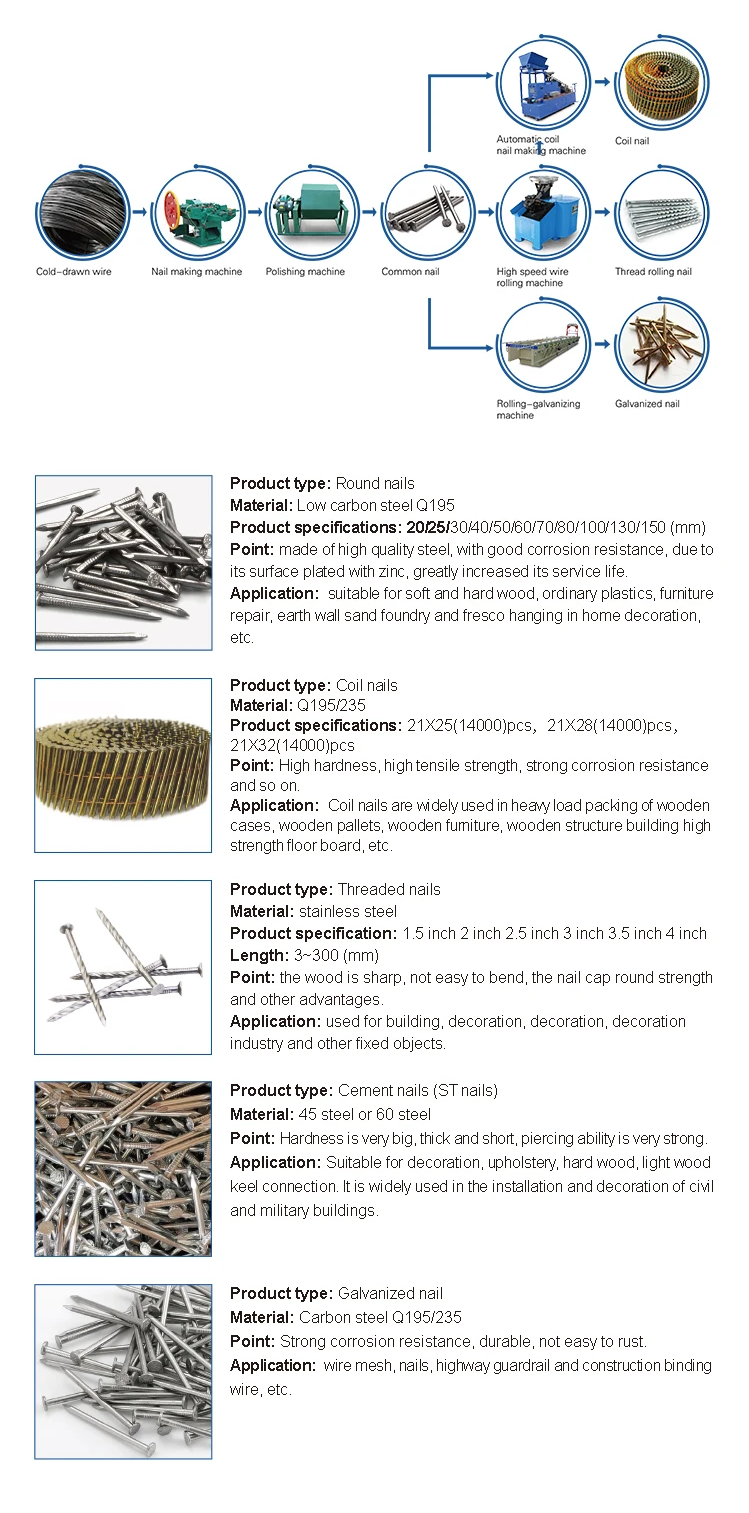

Complete Nail Production Flow Chart
Whole Production Workflow
- Cold-drawn wire raw material: Low carbon steel wire as base raw material
- Nail forming: Process wire into standard common round nails via our nail making machine
- Polishing treatment: Polishing machine removes burrs and brightens nail surface
- Diversified deep processing:
- Thread rolling to make threaded nails
- Roll galvanizing to produce anti-rust galvanized nails
- Coil nail machine to assemble coil nails for pneumatic nail guns
Final finished products cover common round nails, coil nails, threaded nails, cement nails and galvanized anti-rust nails to meet different construction and packaging demands.
Wide Application Scenarios
Main Application Industries
- Wooden pallets & wooden packing boxes
- Cable reel tray & wooden structural frames
- Furniture manufacturing & interior decoration
- Civil building & concrete wall fixing
- Heavy wooden case export packaging
- High-strength floor board installation
Finished nails produced by this machine fit soft/hard wood, plastic fixing, wall plaster hanging, hardware packaging and various construction fastening projects, supporting both manual hammer use and pneumatic coil nail gun matching.
