Description

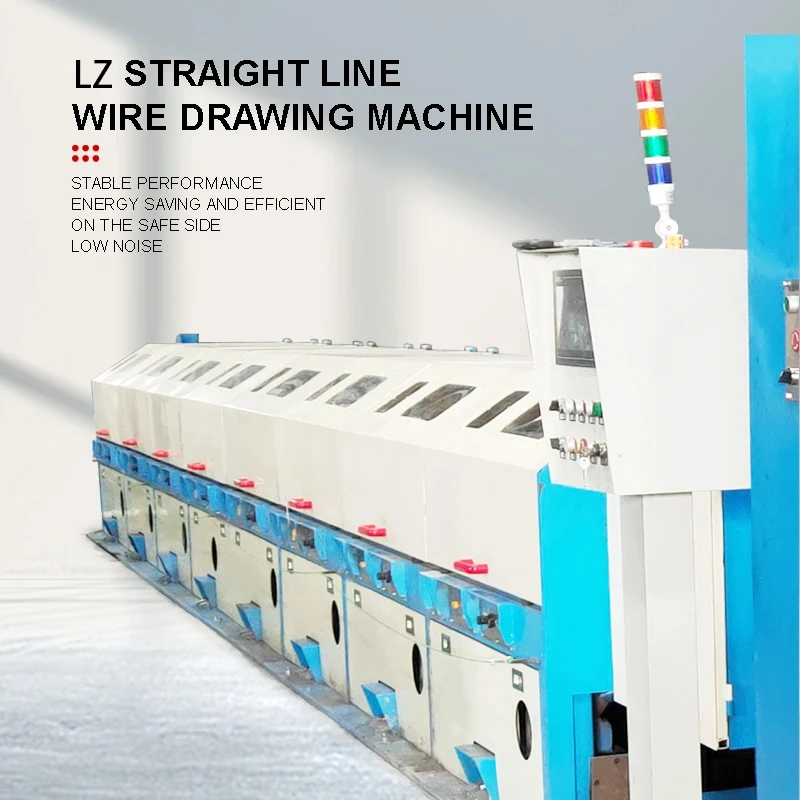

LZ Straight Line Dry Wire Drawing Machine
Stable, Energy Saving, Safe & Low Noise Wire Processing Equipment

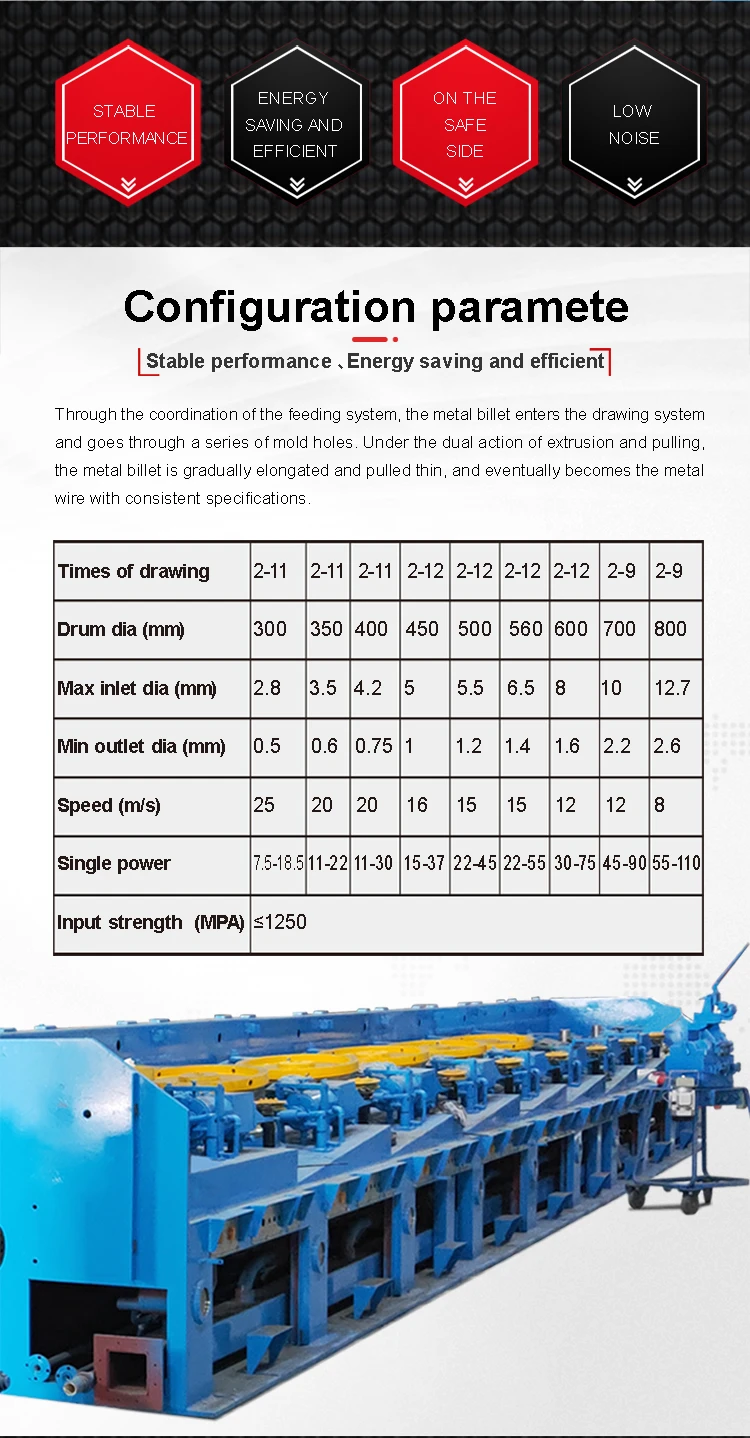

Technical Configuration Parameters
Basic Drawing Configurations
- Drawing Passes: 2-9 / 2-11 / 2-12 customizable
- Drum Diameter: 300mm ~ 800mm optional
- Max Inlet Raw Wire Diameter: 2.8mm ~ 12.7mm
- Min Finished Outlet Wire: 0.5mm ~ 2.6mm
Running & Power Data
- Max Linear Speed: 25 m/s

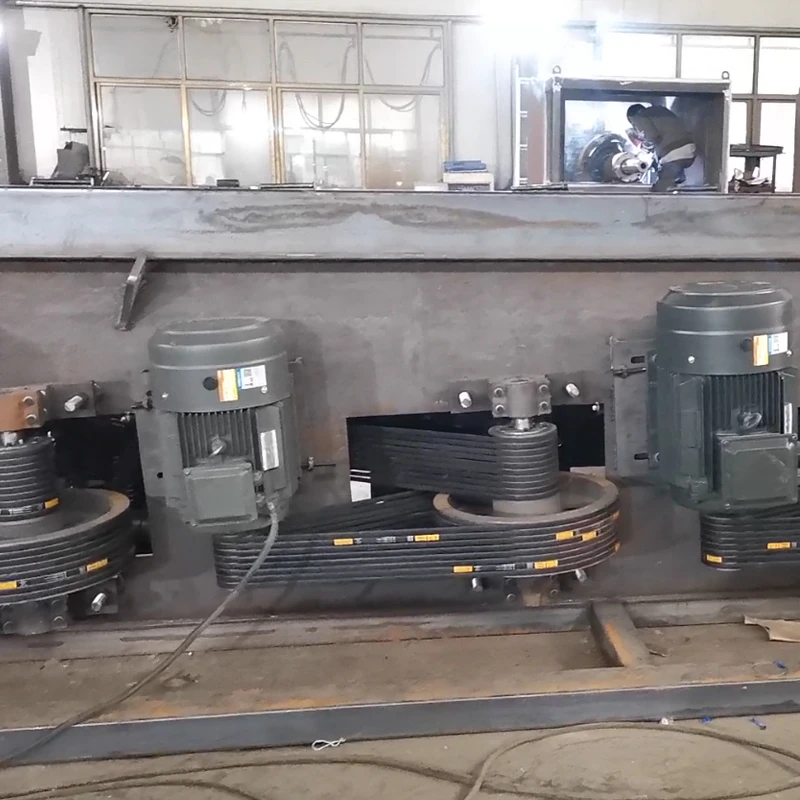

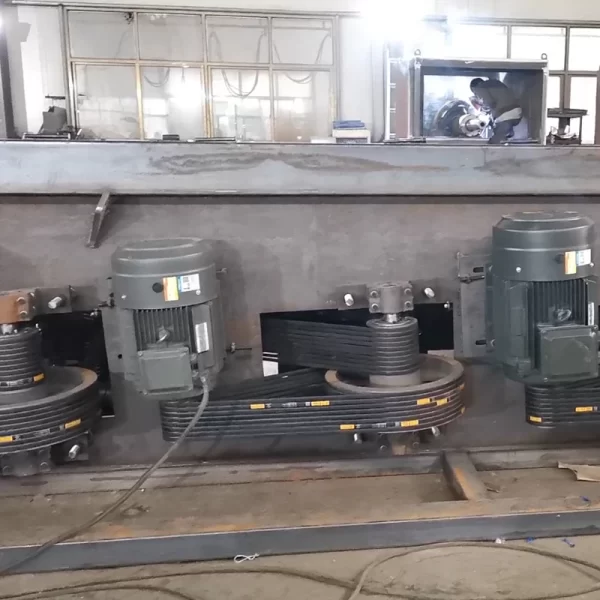

- Single Drum Power Range: 7.5kw ~ 110kw
- Max Input Wire Tensile Strength: ≤1250 MPA
- Control System: PLC Variable Frequency Control
Working Principle: Raw steel rod enters the drawing system and passes through multiple dies. Under extrusion and pulling force, the metal wire is gradually stretched and thinned to uniform finished specification.

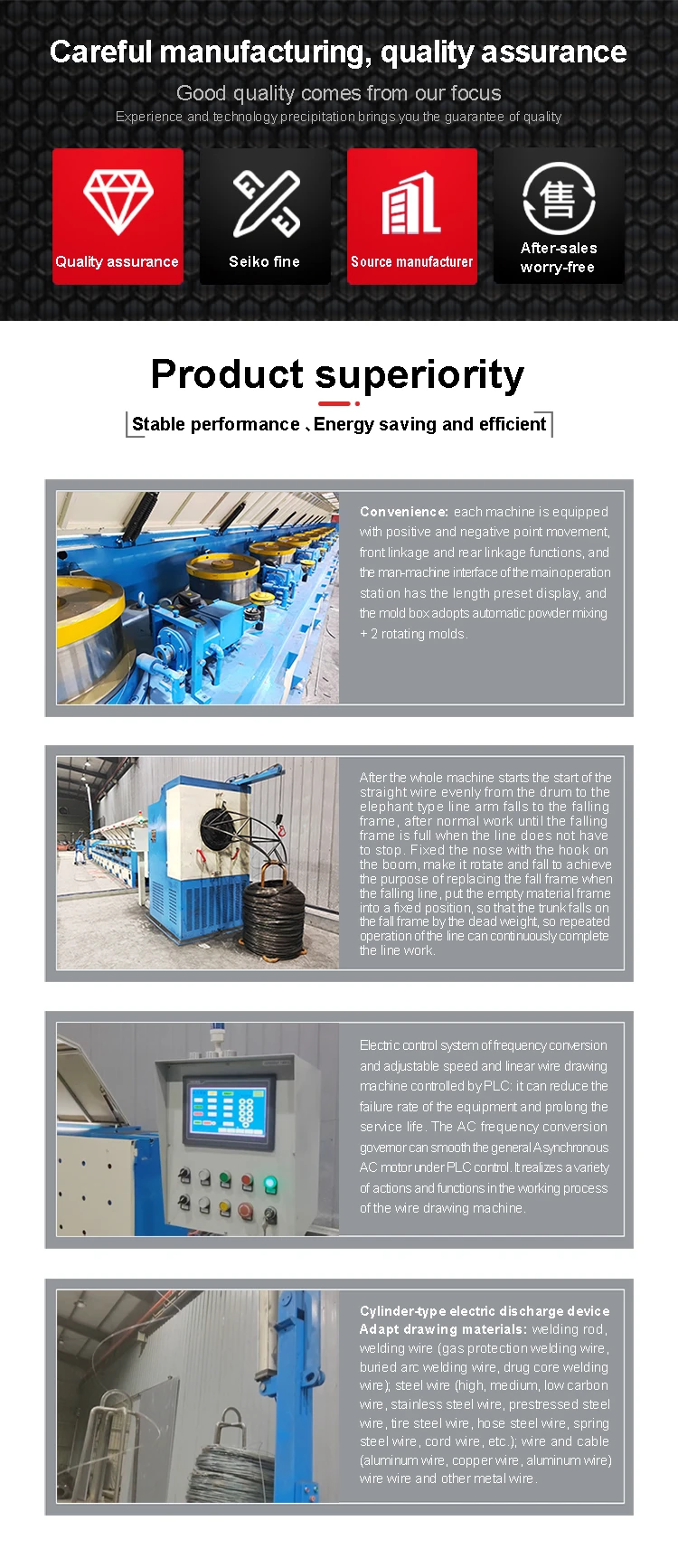

Product Superiority & Core Structure
Smooth Continuous Drawing Design
Equipped with front & rear linkage movement, length preset touch screen, automatic powder mixing and dual rotating molds, ensure stable wire tension and uniform wire surface.

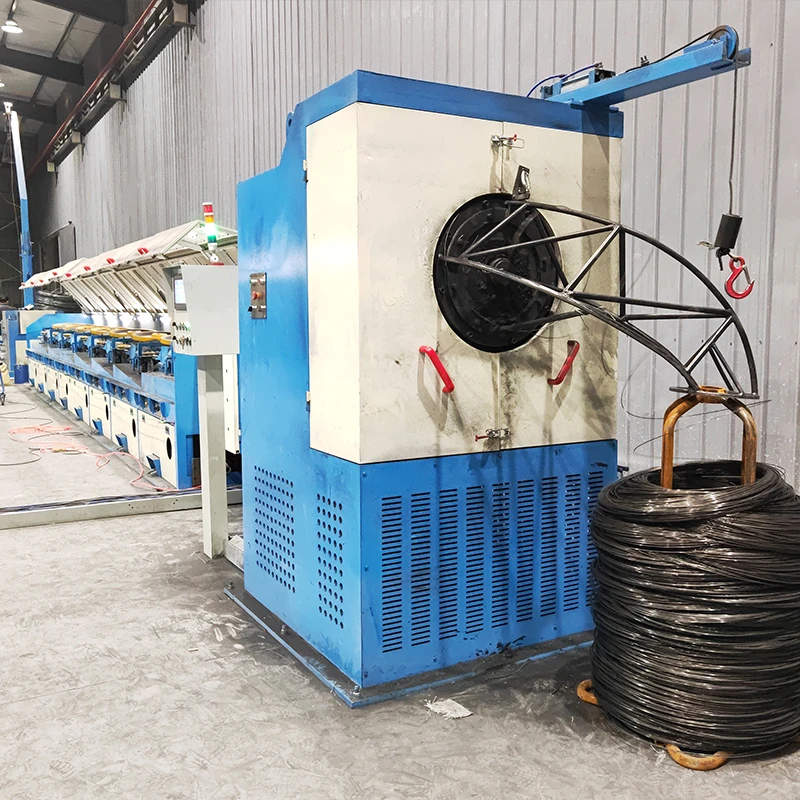

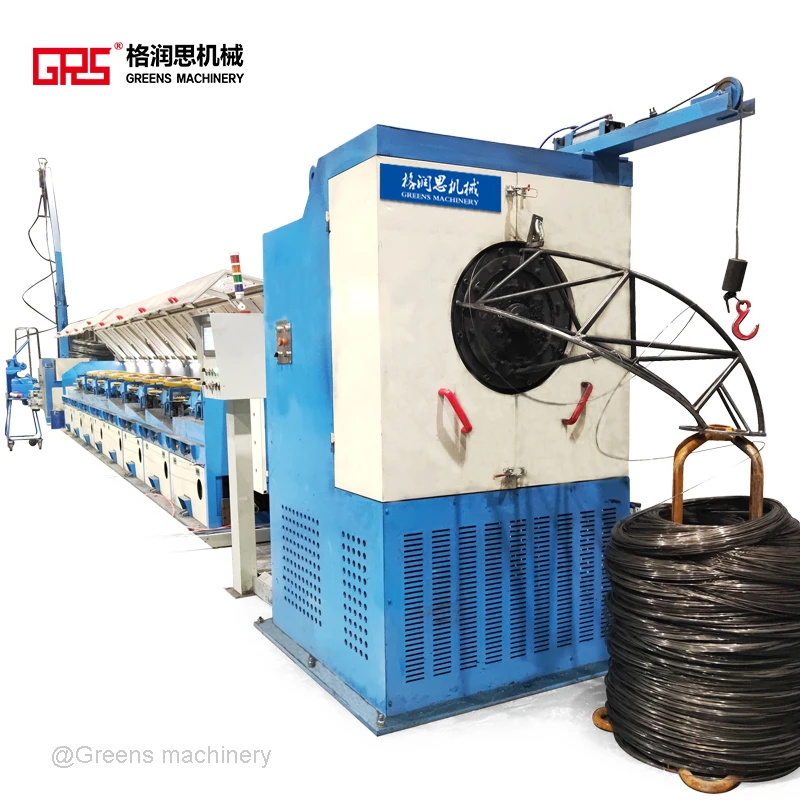

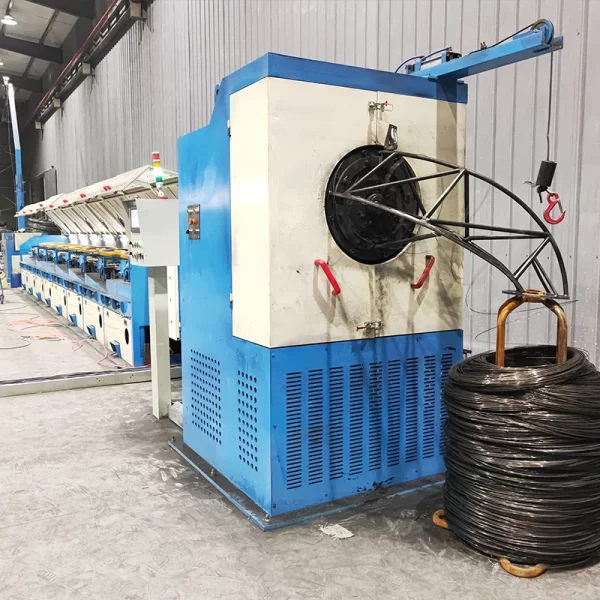

Automatic Wire Falling Frame
Elephant arm wire guide automatically transports finished wire to stacking frame, no frequent machine stop for wire replacement, realize non-stop continuous production.
PLC Frequency Conversion Control Cabinet
Stepless adjustable drawing speed, smooth asynchronous motor operation, greatly reduce equipment failure rate and extend service life.
Wide Applicable Drawing Materials
Suitable for high/medium/low carbon steel wire, welding wire, spring steel wire, stainless steel wire, aluminum wire, copper wire and other metal wire processing.

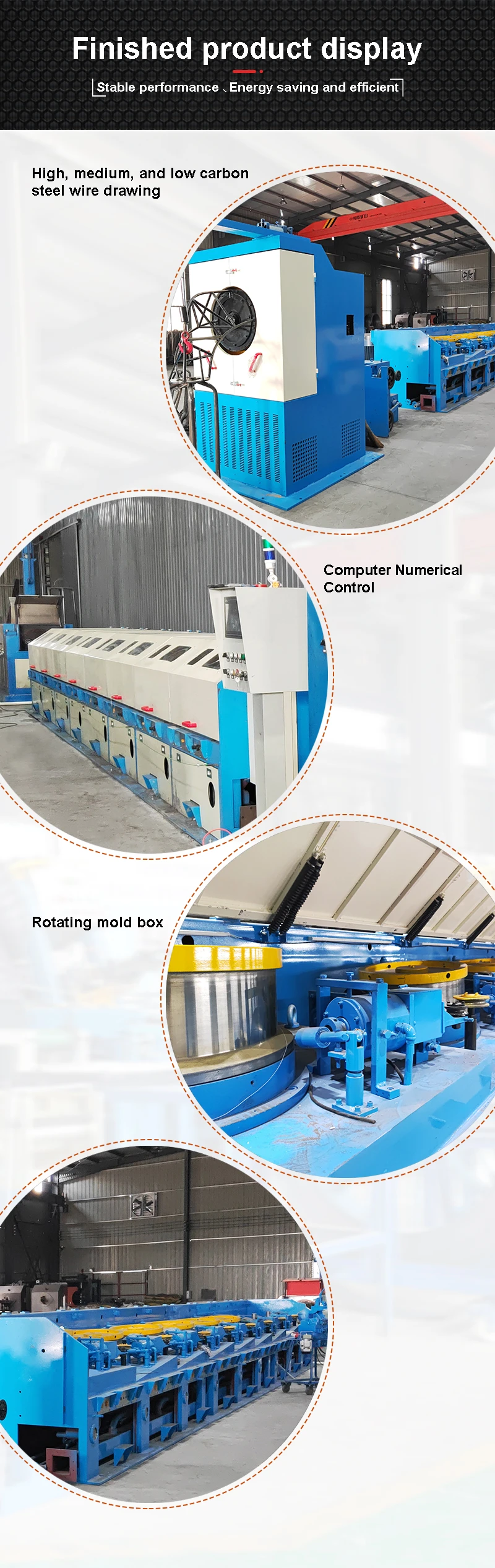

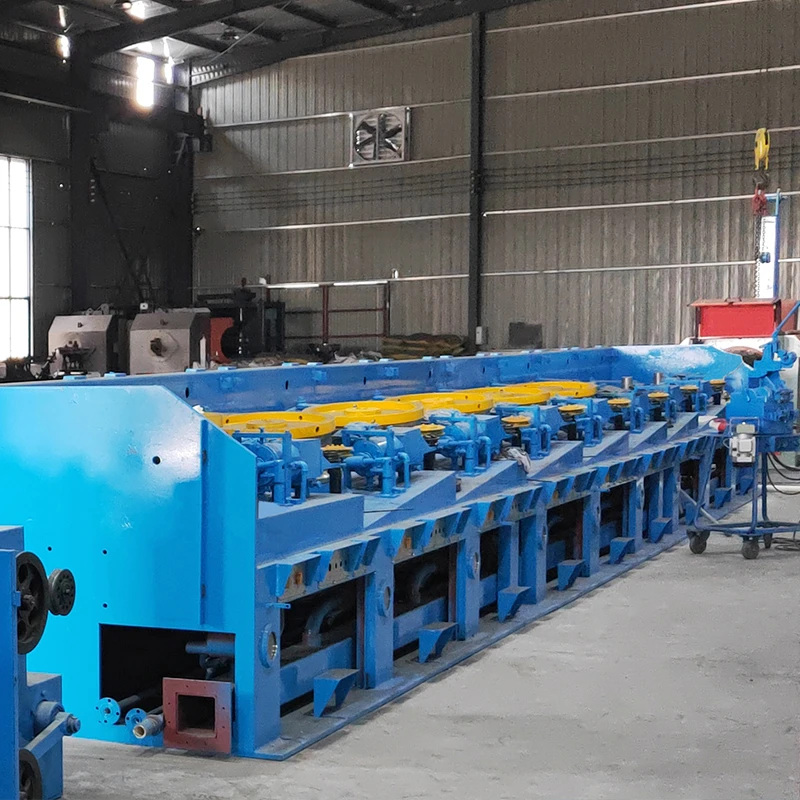

Machine & Finished Wire Display
CNC Touch Screen Control
Human-machine interactive touch panel, easy parameter setting, automatic operation data recording, low operation difficulty for workers.

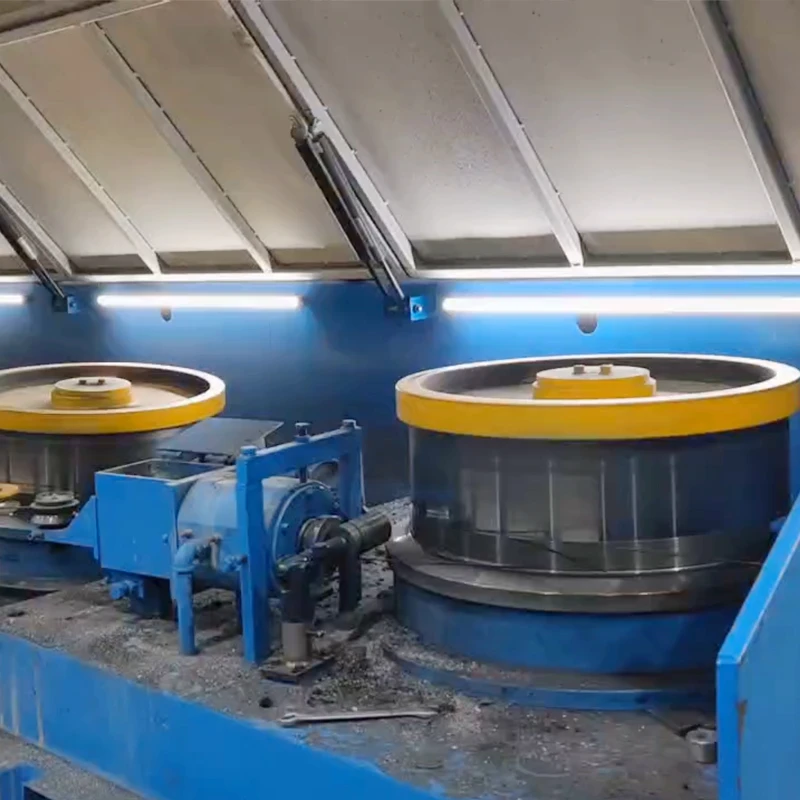

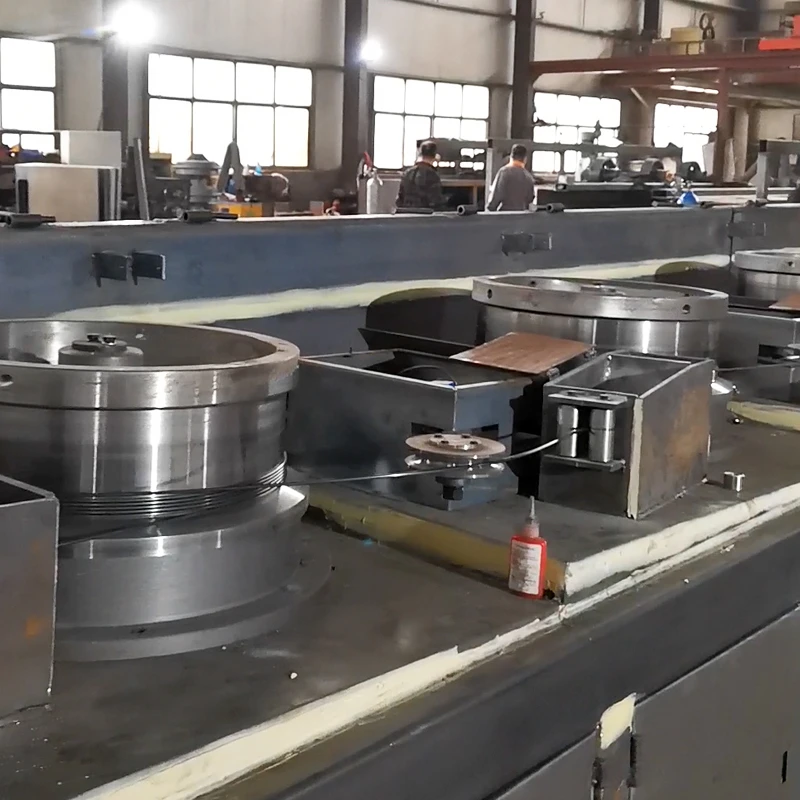

Rotatable Alloy Mold Box
High wear-resistant alloy mold seat, convenient die replacement, effectively reduce mold loss and production cost.

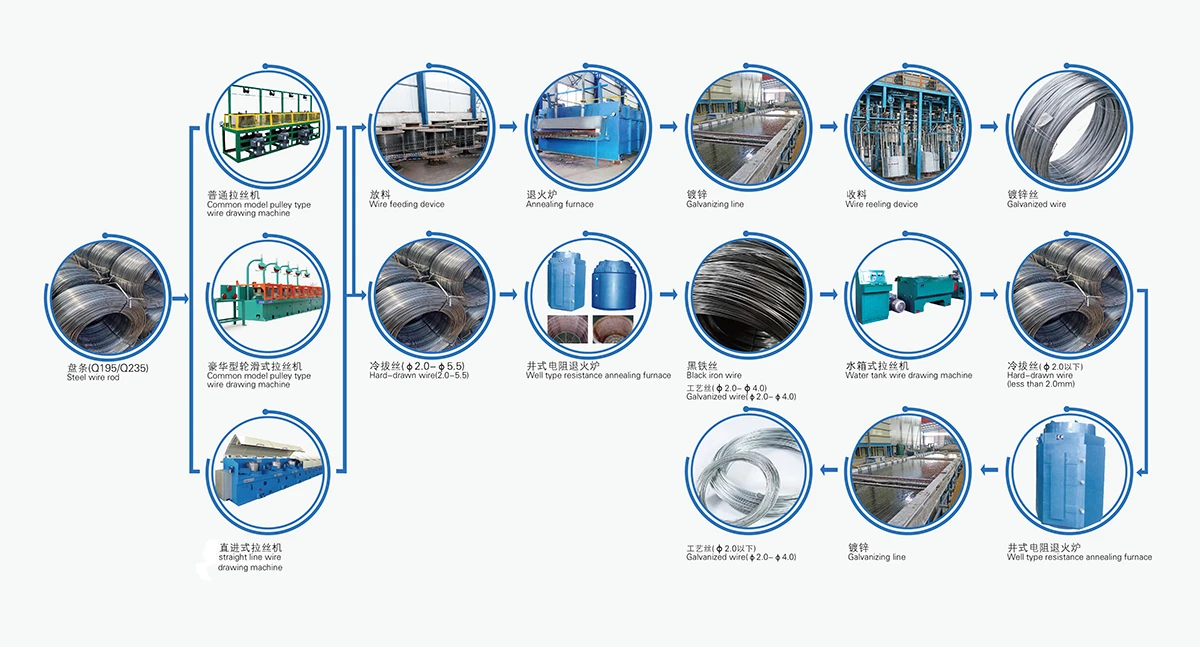

Complete Metal Wire Production Flow Chart
This LZ straight line drawing machine acts as core front-end equipment of full wire production line, can match annealing furnace, galvanizing line and take-up machine to realize automatic production of black iron wire, galvanized wire and finished industrial metal wire.

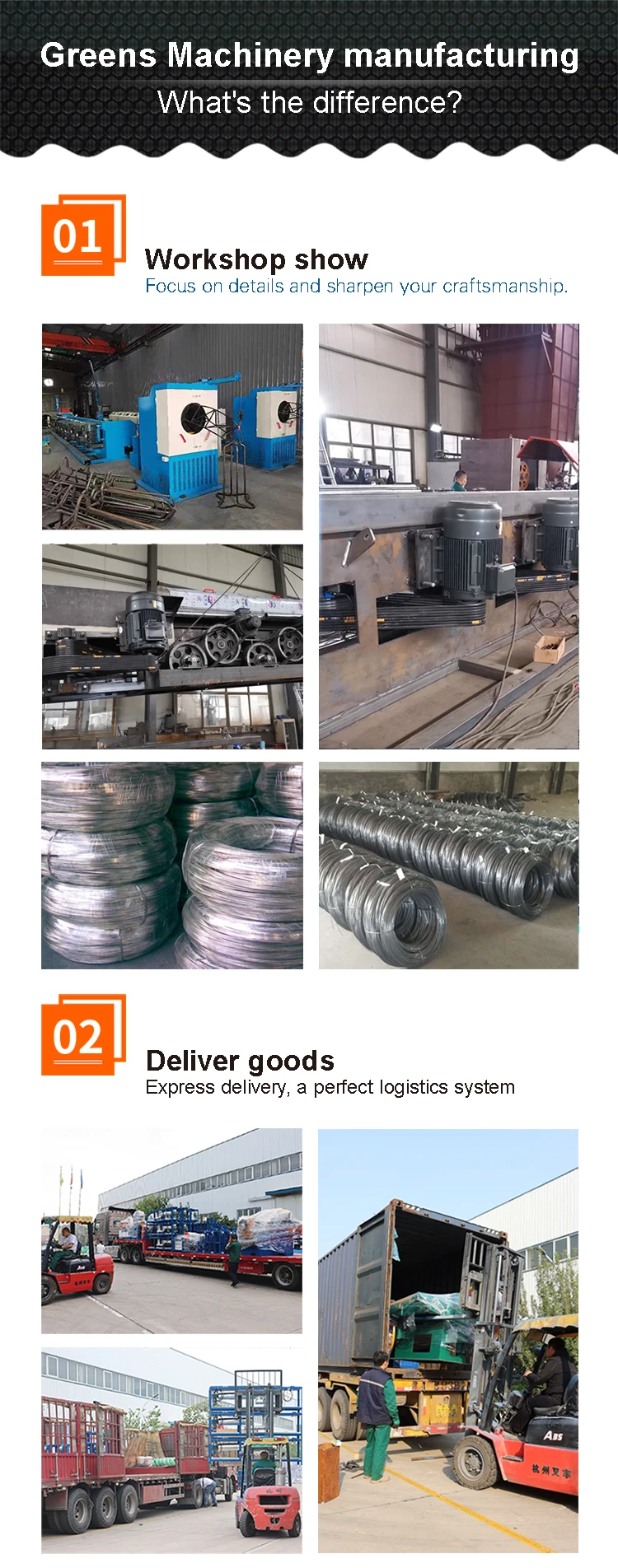

Workshop Production & Delivery Showcase
Strict Workshop Manufacturing
All machine frames adopt thickened steel plate full welding, every component passes dimensional inspection before assembly to guarantee stable long-time running.
Complete Logistics Delivery System
Complete loading & container packing service, standard protective packaging to avoid damage during long-distance sea & land transportation.
