Description

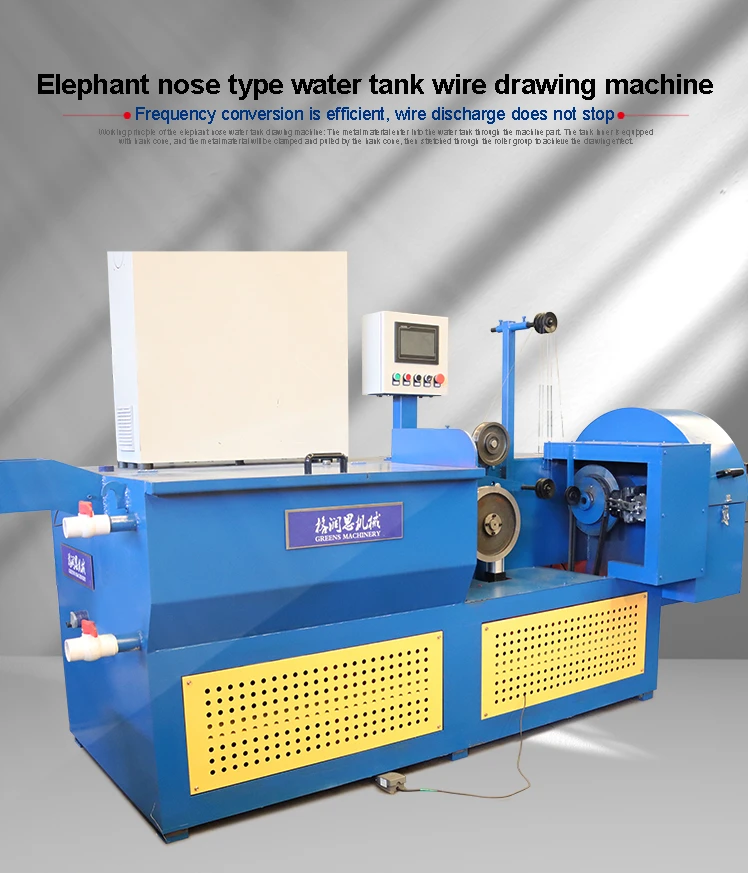

LT Series Elephant Nose Type Water Tank Wire Drawing Machine
High-efficiency frequency conversion control, continuous wire output without shutdown

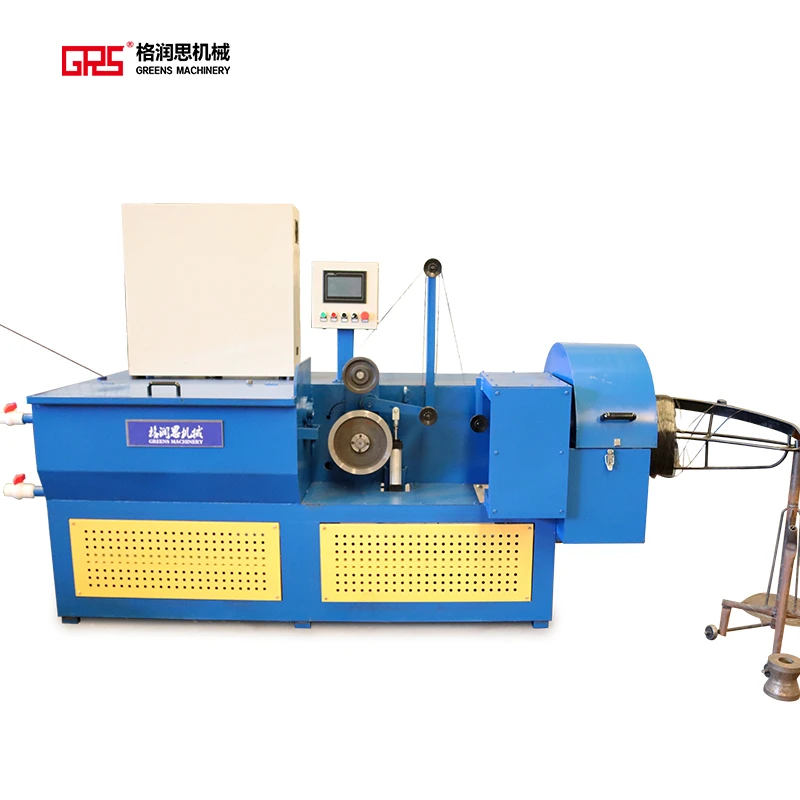

This elephant nose water tank drawing machine is equipped with circulating water cooling system and PLC touch screen control. The exclusive elephant nose take-up reel allows coil unloading without machine shutdown, which greatly improves continuous production efficiency for various fine metal wires.

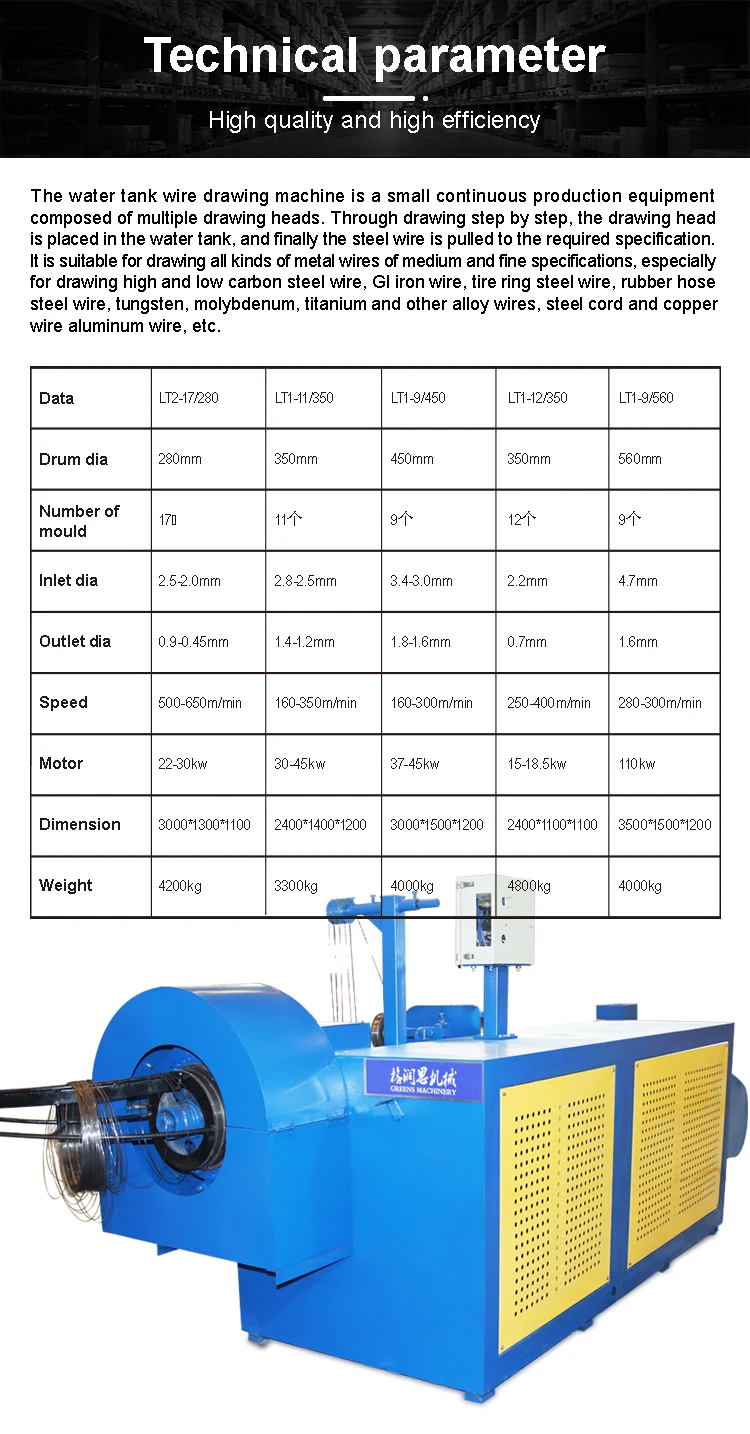

Technical Parameters
The water tank wire drawing machine is continuous fine wire production equipment with multi-stage drawing dies. It can process various medium and thin metal wires, widely used for construction wire mesh, staple wire, galvanized wire, alloy wire, copper wire and aluminum wire.
Model LT2-17/280
- Drum Diameter: 280mm
- Number of Dies: 17pcs
- Inlet Wire Dia: 2.0-2.5mm
- Outlet Wire Dia: 0.45-0.9mm
- Working Speed: 500-650m/min
- Main Motor: 22-30kw
- Overall Dimension: 3000*1300*1100mm
- Machine Weight: 4200kg
Model LT1-11/350
- Drum Diameter: 350mm
- Number of Dies: 11pcs
- Inlet Wire Dia: 2.5-2.8mm
- Outlet Wire Dia: 1.2-1.4mm
- Working Speed: 160-350m/min
- Main Motor: 30-45kw
- Overall Dimension: 2400*1400*1200mm
- Machine Weight: 3300kg
Model LT1-9/450
- Drum Diameter: 450mm
- Number of Dies: 9pcs
- Inlet Wire Dia: 3.0-3.4mm
- Outlet Wire Dia: 1.6-1.8mm
- Working Speed: 160-300m/min
- Main Motor: 37-45kw
- Overall Dimension: 3000*1500*1200mm
- Machine Weight: 4000kg
Model LT1-12/350
- Drum Diameter: 350mm
- Number of Dies: 12pcs
- Inlet Wire Dia: 2.2mm
- Outlet Wire Dia: 0.7mm
- Working Speed: 250-400m/min
- Main Motor: 15-18.5kw
- Overall Dimension: 2400*1100*1100mm
- Machine Weight: 4000kg
Model LT1-9/560
- Drum Diameter: 560mm
- Number of Dies: 9pcs
- Inlet Wire Dia: 4.7mm
- Outlet Wire Dia: 1.6mm
- Working Speed: 280-300m/min
- Main Motor: 110kw
- Overall Dimension: 3500*1500*1200mm
- Machine Weight: 4800kg
Core Advantages
High precision and high productivity design reduces labor costs and extends machine service life for long-term wire drawing production.
1. High Speed Output & Labor Saving
High-speed continuous wire output greatly improves daily production volume and cuts manual operation expenses.
2. Heavy-duty Premium Steel Frame
The whole machine is constructed with thick high-quality steel components, featuring strong wear resistance and longer service cycle.

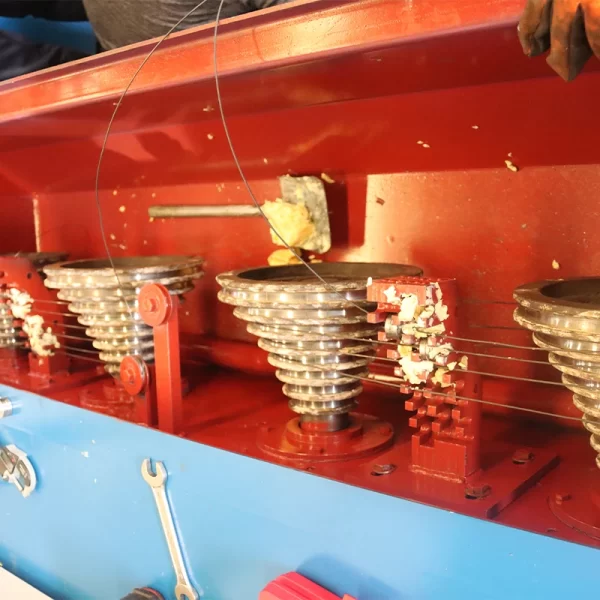

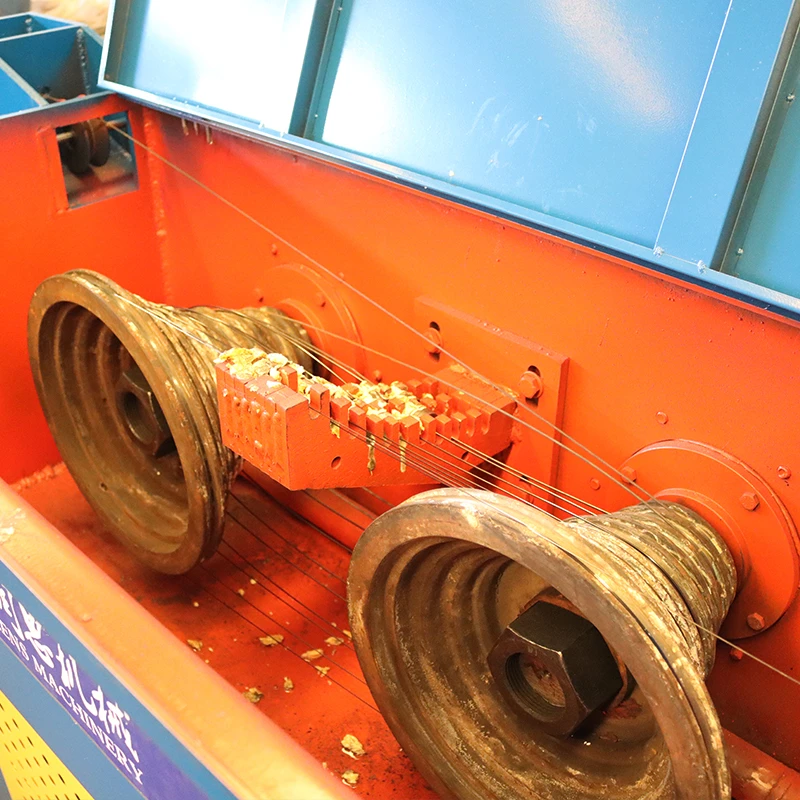

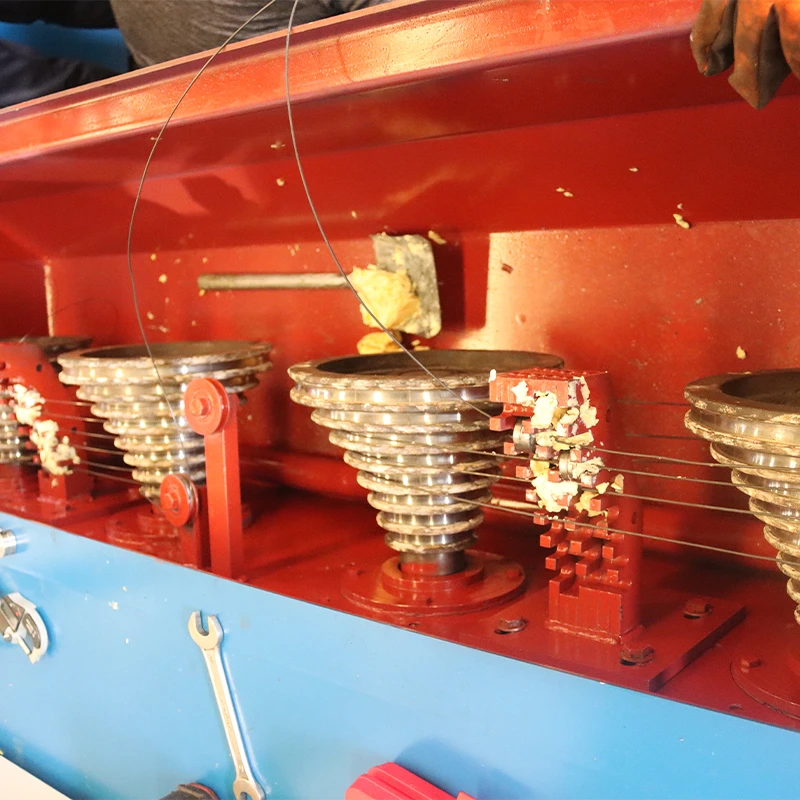

3. Circulating Water Cooling for Bright Wire Surface
The full circulating water tank provides continuous lubrication and cooling, preventing wire oxidation and scratches to deliver mirror-finished metal wire.

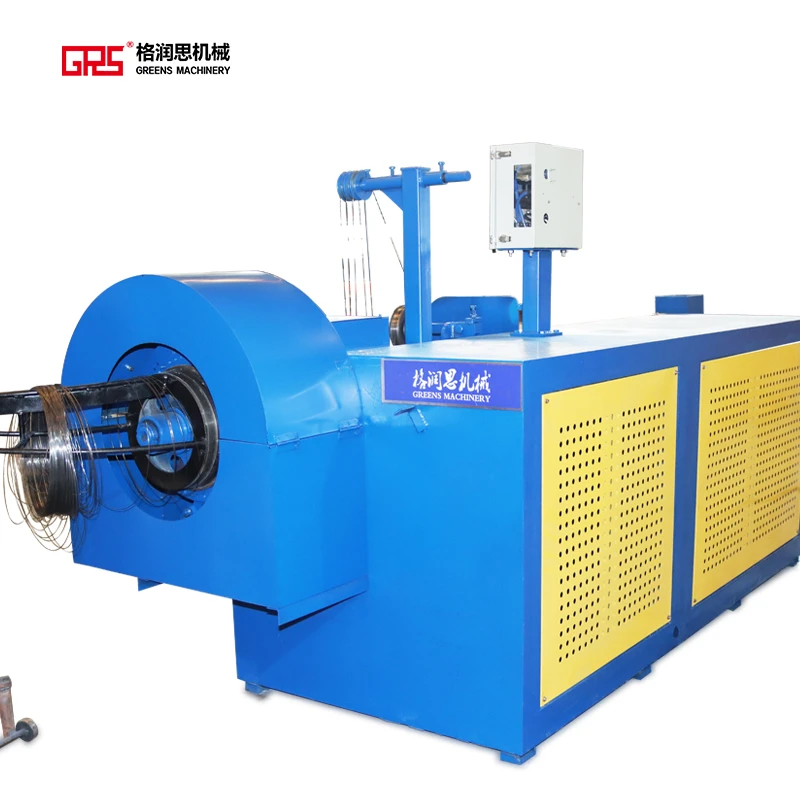

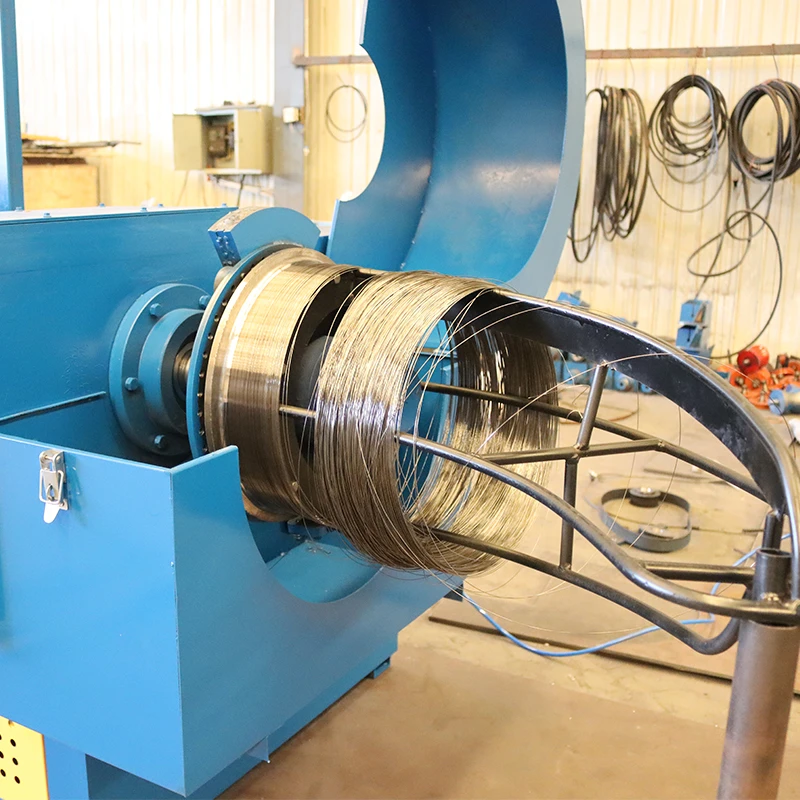

4. Elephant Nose Non-stop Wire Take-up System
The proprietary elephant nose reel allows coil unloading without equipment shutdown, enabling uninterrupted mass production and higher total yield.
Application Scope

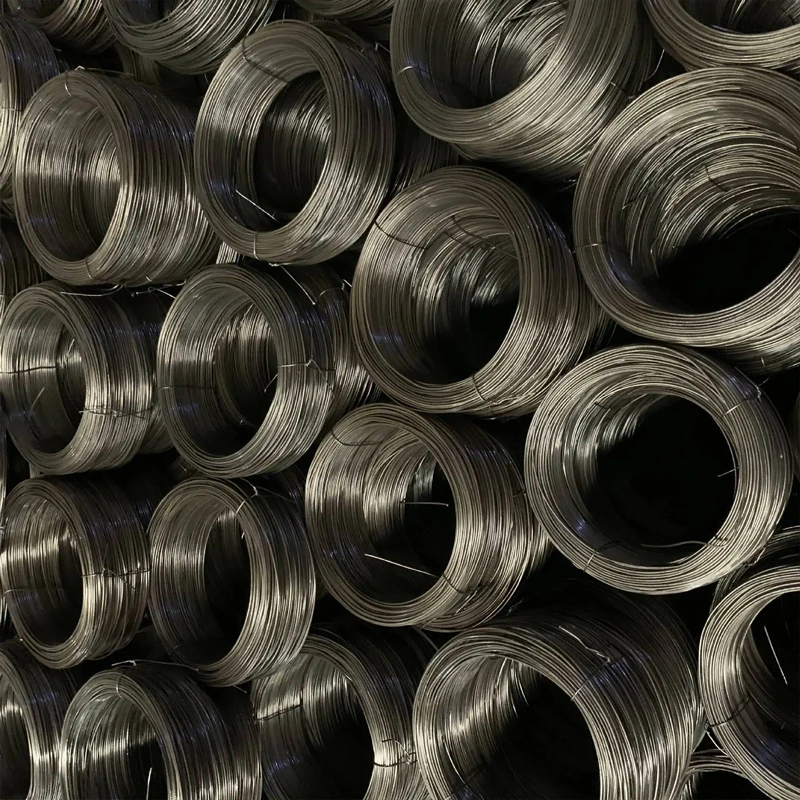

Our water tank wire drawing machine produces qualified fine metal wires applicable to multiple industrial sectors.
- Hexagonal wire mesh & metal chicken wire
- Clothes hangers and daily hardware staples
- Livestock breeding cages & agricultural greenhouse binding wire
- Construction binding wire and security fence wire
- Galvanized wire, low carbon iron wire and thin alloy wire processing
Greens Machinery Factory Strength
We are a professional wire drawing machine manufacturer equipped with complete production workshops, strict quality inspection standards, mature global logistics and a full professional R&D technical team.
01 Complete Production Workshop
We focus on precise machining and strict craftsmanship to create benchmark wire drawing equipment for the industry.
02 Strict Premium Raw Material Selection
With decades of manufacturing experience, we adopt high-grade steel and core spare parts to guarantee stable machine quality and long service life.
03 Mature Logistics & Global Shipment System
Standardized loading and delivery procedures support full container shipments worldwide with safe shock-proof packaging.
04 In-house Professional Technical R&D Team
Our full internal technical team supplies customized machine solutions and global after-sales technical guidance.
