Description

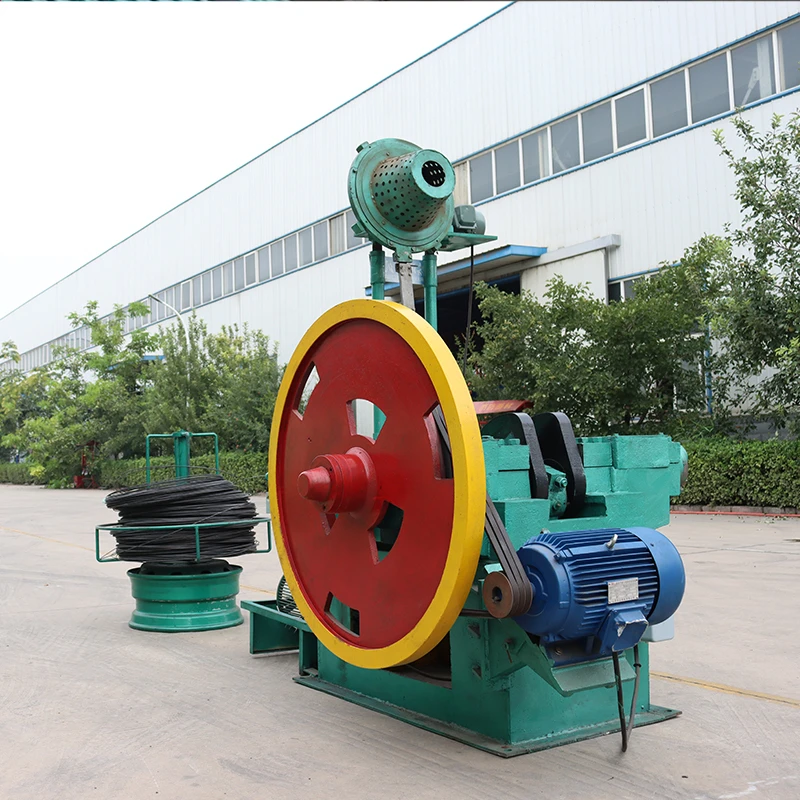

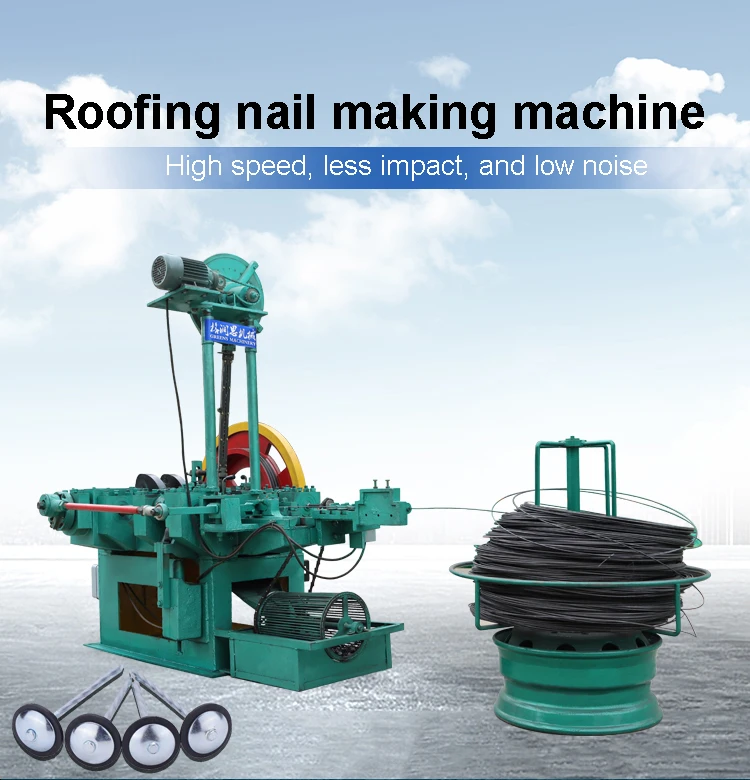

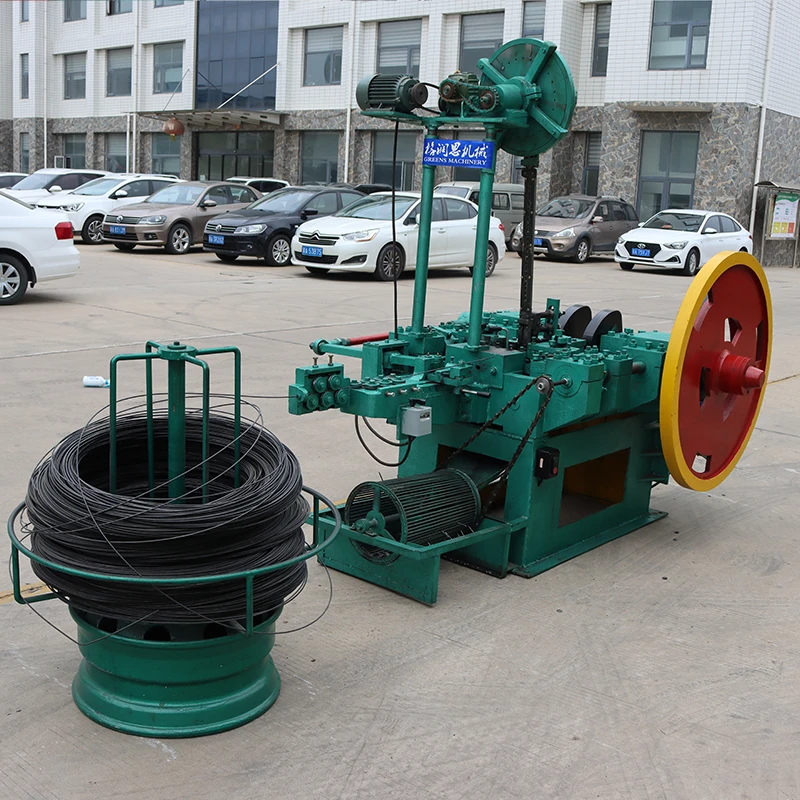

Automatic Roofing Nail Making Machine
High Speed, Low Vibration, Low Noise Operation
This roofing nail maker is upgraded on the basis of standard high-speed nail making machine, specially developed to manufacture large cap corrugated roofing nails for roof tile fixing and all kinds of wooden construction projects.

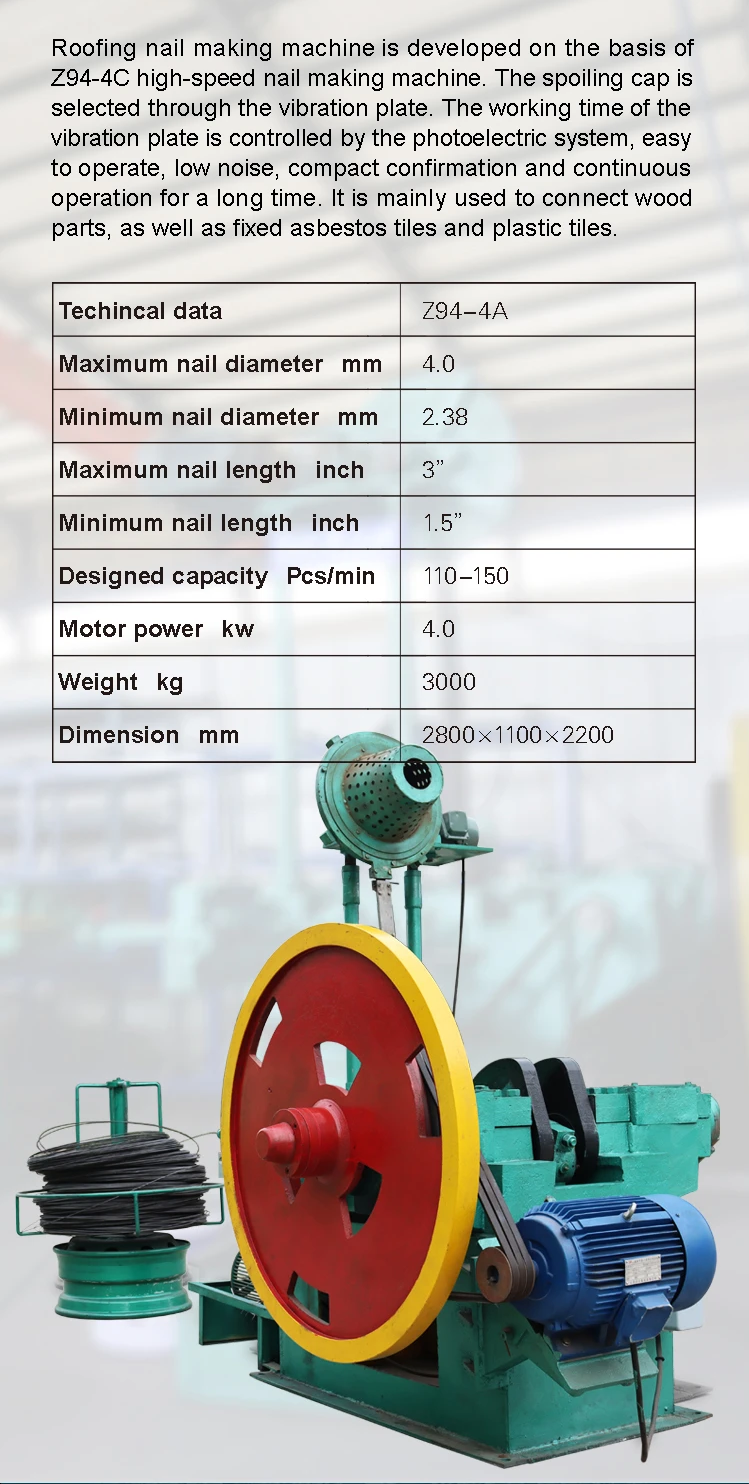

Configuration & Technical Parameters
Core Technical Data
- Maximum Nail Diameter: 4.0 mm
- Minimum Nail Diameter: 2.38 mm
- Maximum Nail Length: 3 inch
- Minimum Nail Length: 1.5 inch
- Rated Production Capacity: 110–150 Pieces Per Minute
- Main Motor Power: 4.0 KW
- Total Machine Weight: 3000 KG
- Overall Dimension: 2800×1100×2200 mm

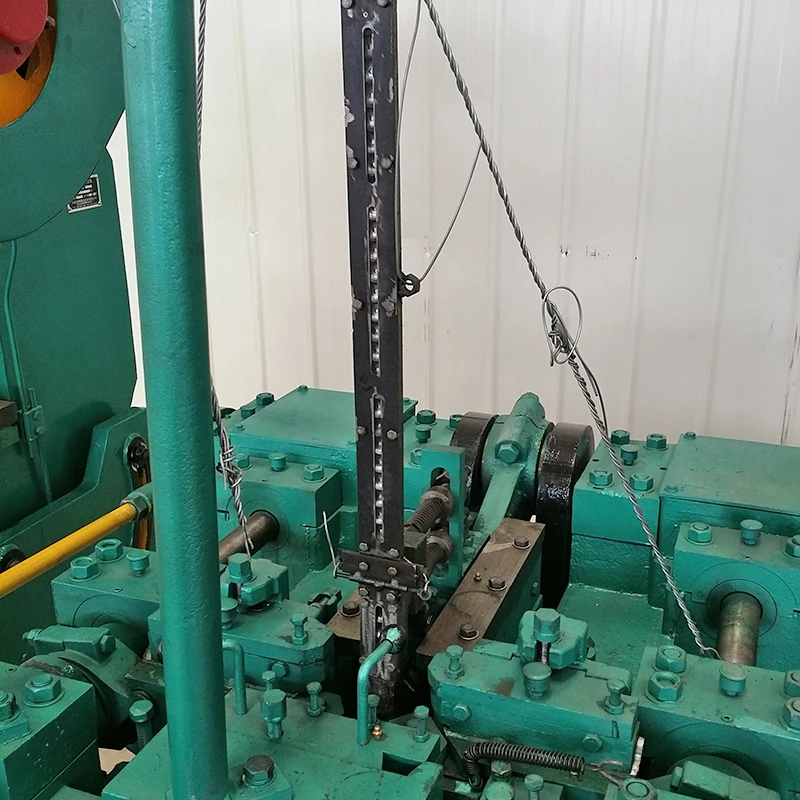

The machine is equipped with a photoelectric controlled vibration plate for automatic cap sorting and feeding. It features compact structure, simple operation, low noise and supports long-time continuous stable running, perfect for fixing asbestos tiles, plastic roof tiles and various wooden structural parts.
Product Details & Core Advantages

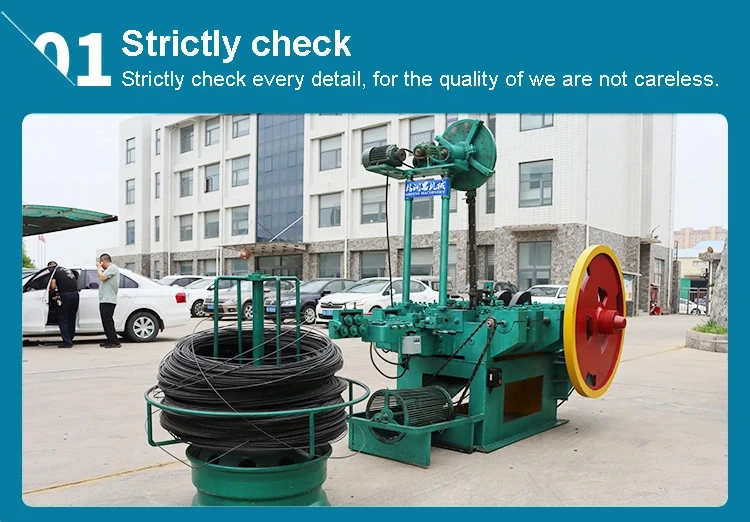

1. Strict Quality Inspection
Every machine component goes through strict full inspection, we never cut corners on product quality control.

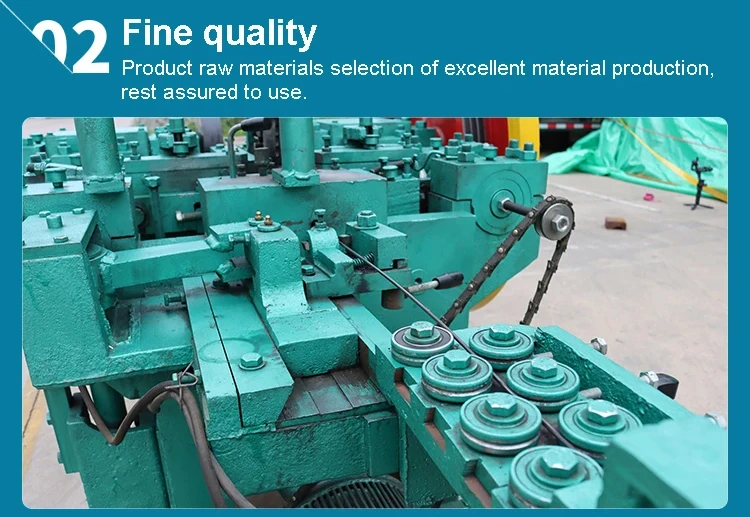

2. Premium Raw Material
All key parts are made of high-quality raw materials, stable performance and long service life for long-term production.

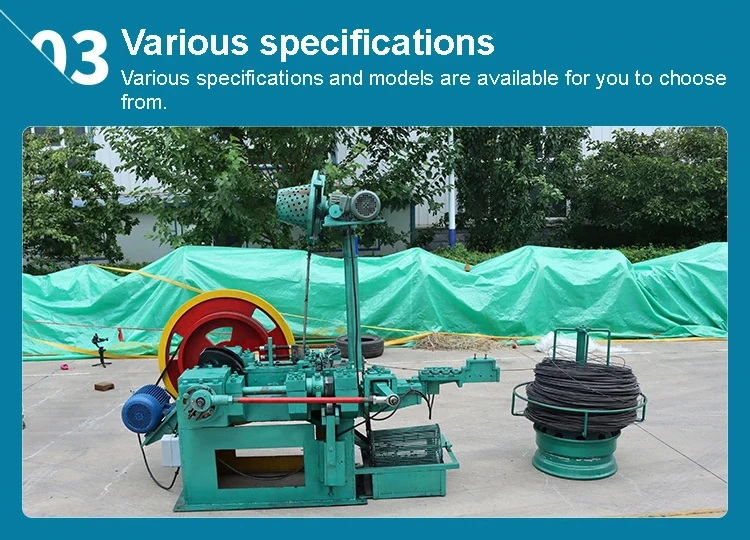

3. Multiple Custom Specifications
We provide various sizes and configurations to match different roofing nail production demands.

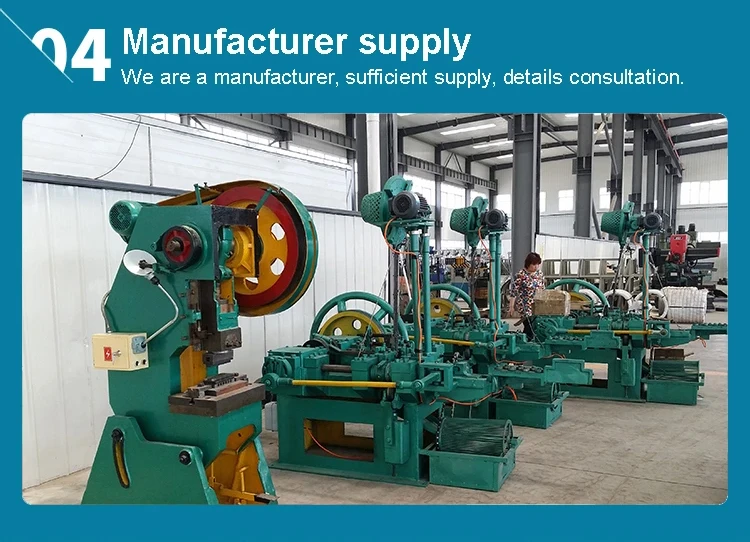

4. Direct Manufacturer Supply
We are professional factory with sufficient stock, support customized production and one-stop technical consultation.

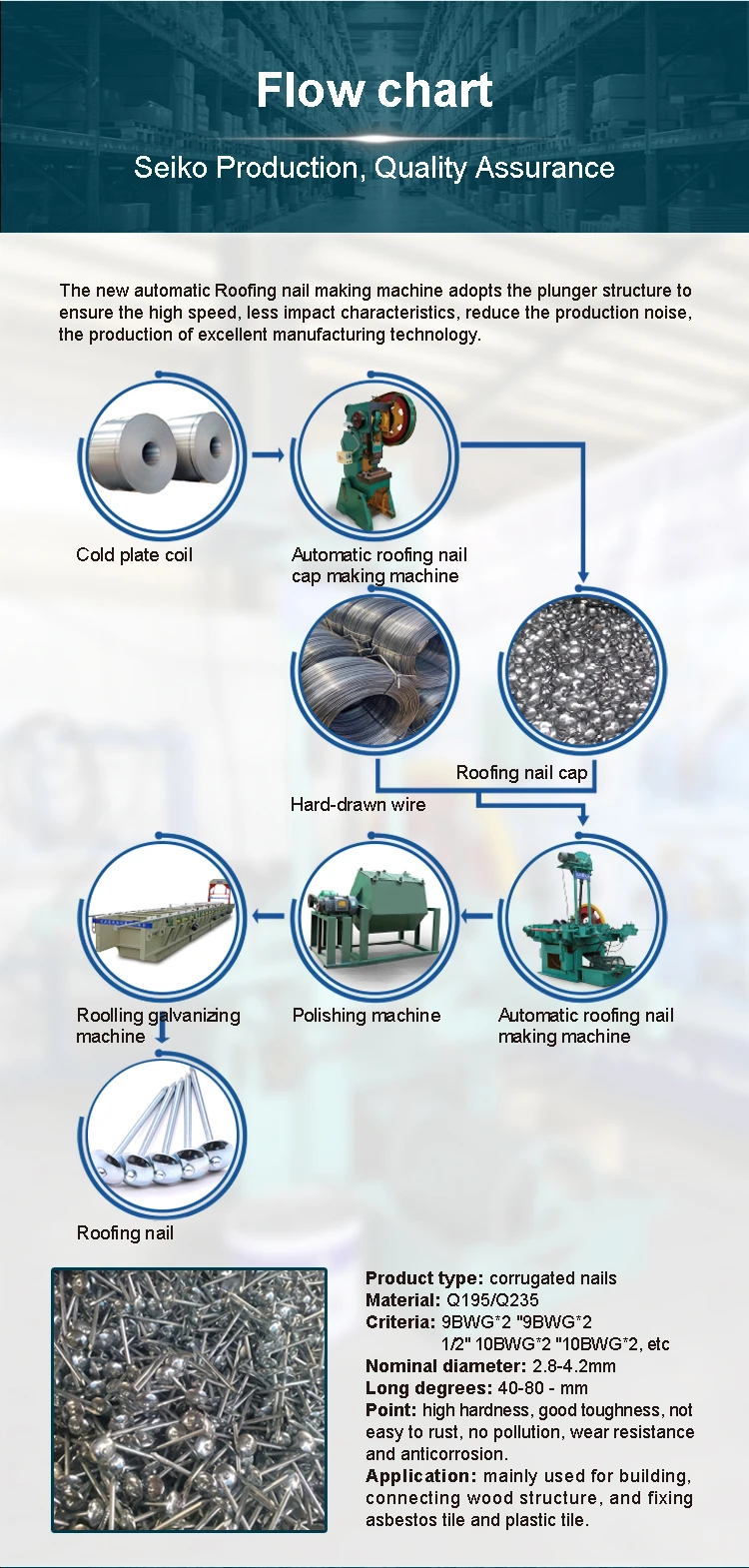

Complete Production Flow Chart
This automatic roofing nail making machine adopts advanced plunger structure to achieve high-speed production with low impact and low working noise, greatly improving manufacturing efficiency.

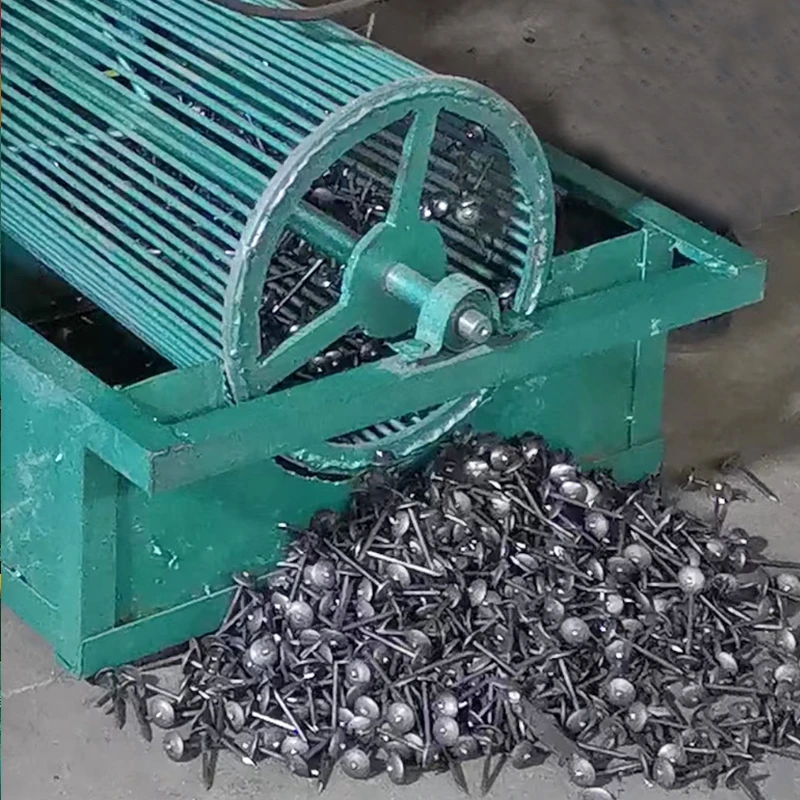

Finished Roofing Nail Basic Info
- Nail Type: Corrugated big cap roofing nails
- Raw Material: Q195 / Q235 steel wire
- Available Sizes: 9BWG, 10BWG, length 40-80mm
- Nail Performance: Hard sharp point, good toughness, rust-proof, wear-resistant, pollution-free
- Main Application: Building construction, wooden frame connection, fixing plastic & asbestos roof tiles
Wide Application Range
Our produced roofing nails are widely used in various construction scenarios:
- Fastening wooden roof frames
- Fixing plastic roof tiles & asbestos tiles
- Residential roof building projects
- Light wood structure house construction
- Asphalt shingle & waterproof roof installation
Factory Workshop, Customer Visit & Delivery

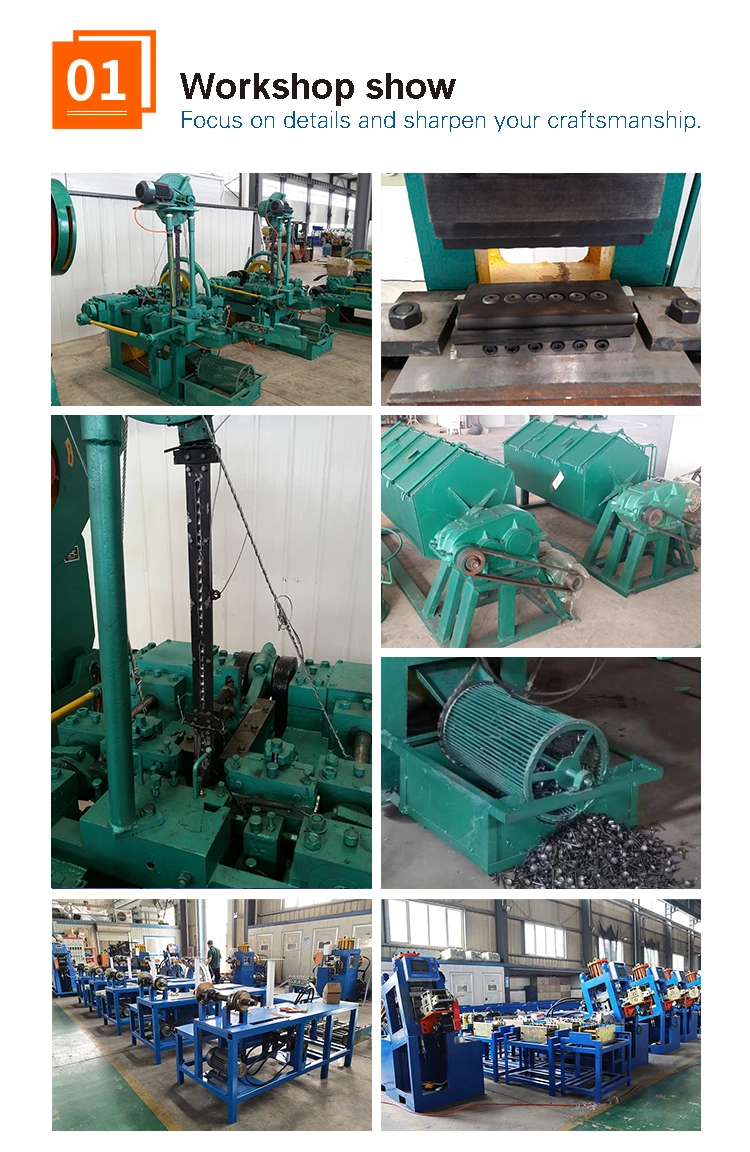

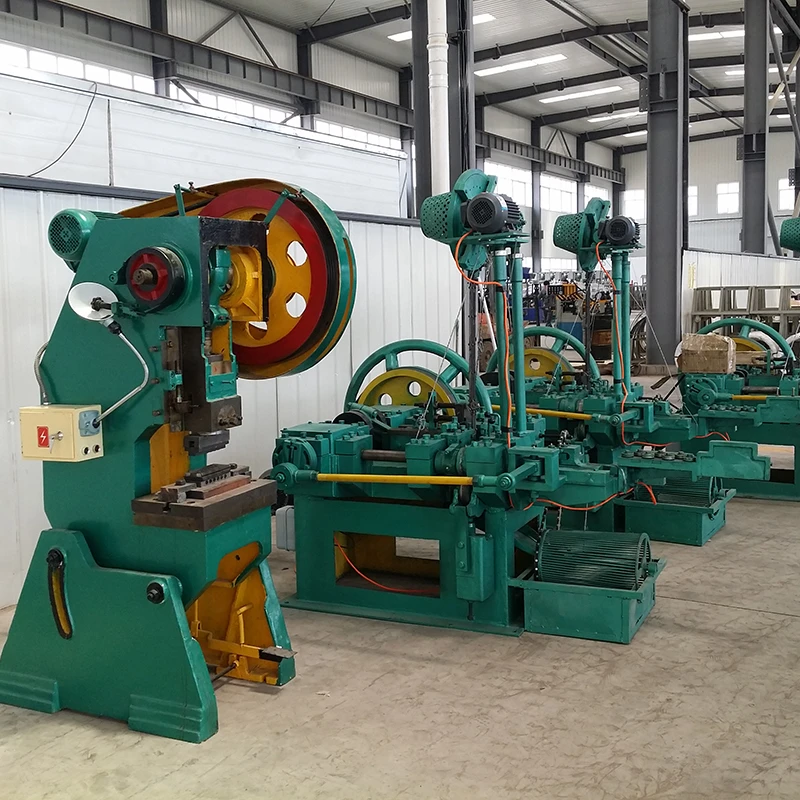

01 Professional Workshop
Independent production workshop, complete processing equipment, focus on precise craftsmanship for every machine.

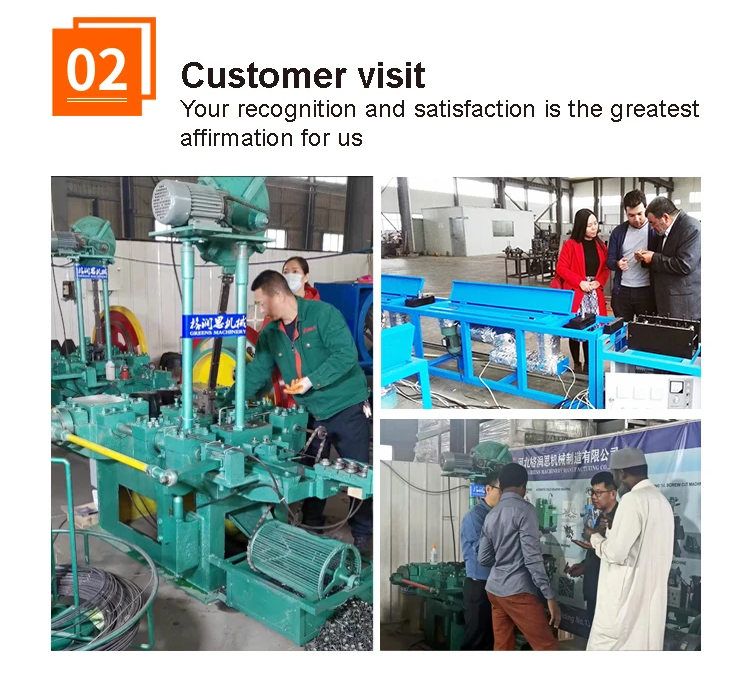

02 Customer On-site Visit
Overseas customers come to inspect machines, test equipment and discuss customized production solutions.

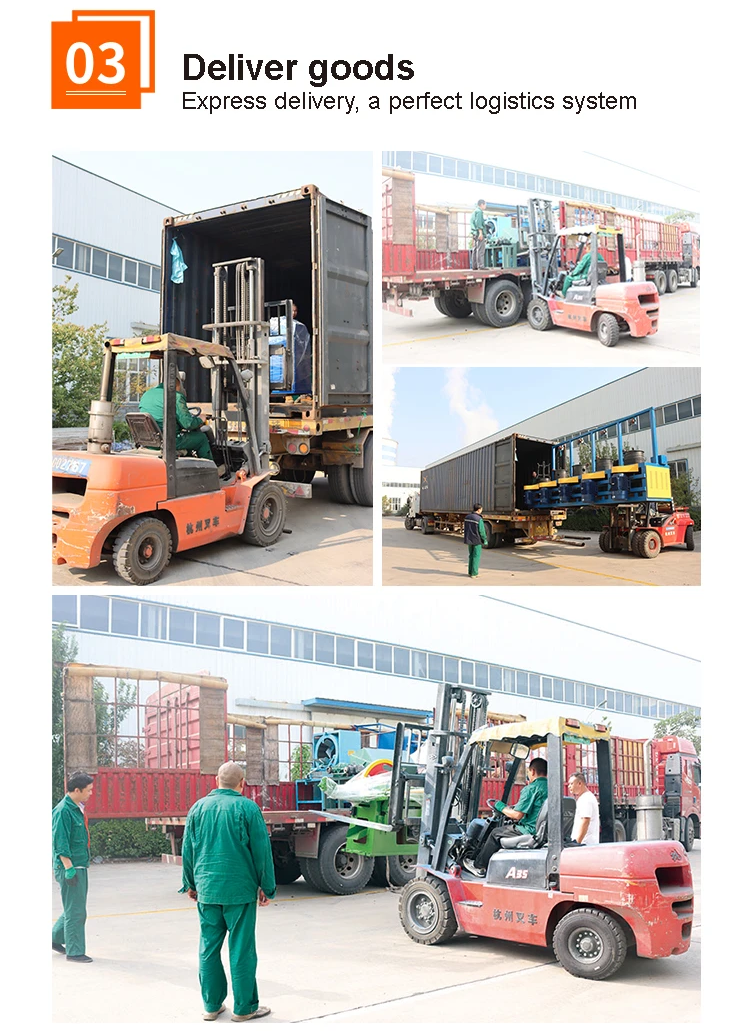

03 Safe Global Delivery
Complete logistics system, professional loading & container packaging to ensure machines arrive intact worldwide.
Quality Assurance
Strict factory testing
Precise Craftsmanship
Fine machining parts
Direct Manufacturer
No middleman markup
Full After-sales
Overseas technical support
