Description

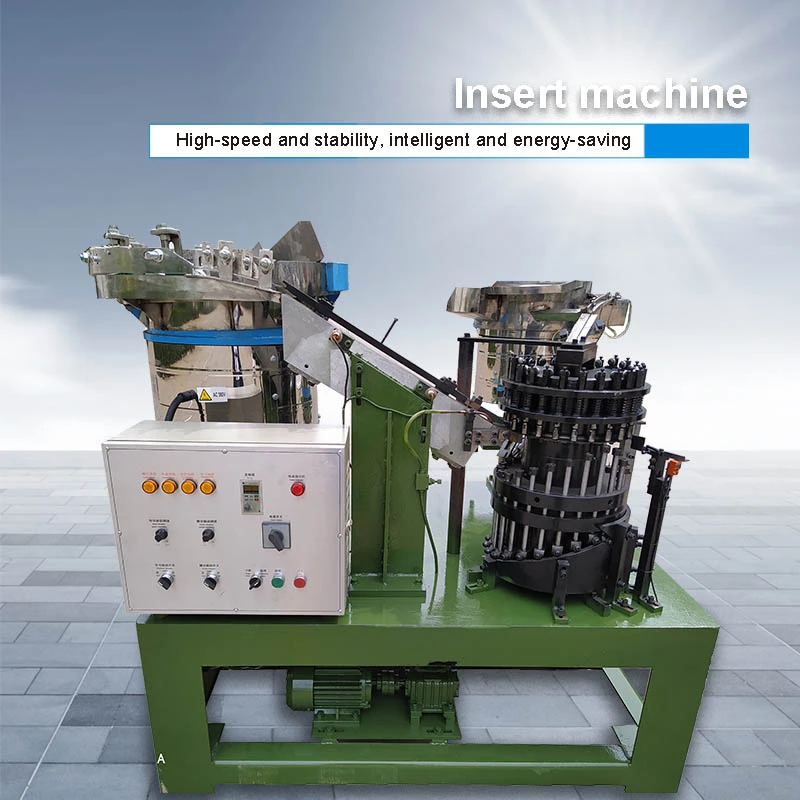

Insert Machine

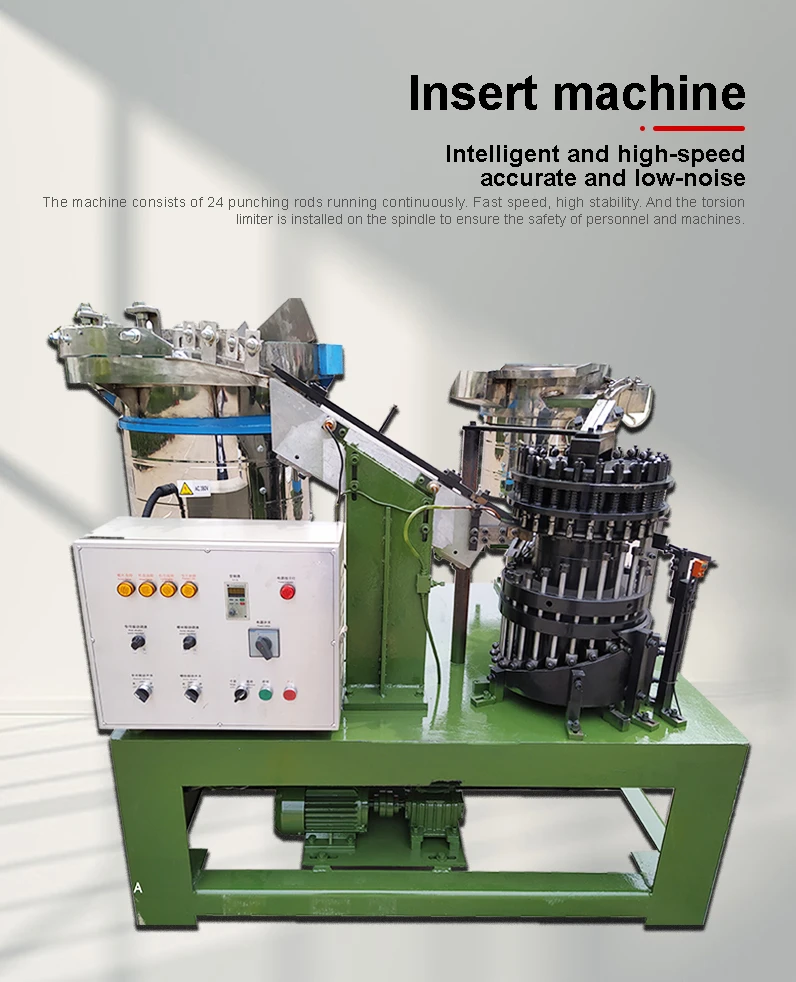

Intelligent and high-speed, accurate and low-noise
This machine is equipped with 24 continuous punching rods for stable running. A torsion limiter is mounted on the spindle to fully protect operators and machine equipment during operation, featuring fast running speed, ultra-stable performance and low working noise.

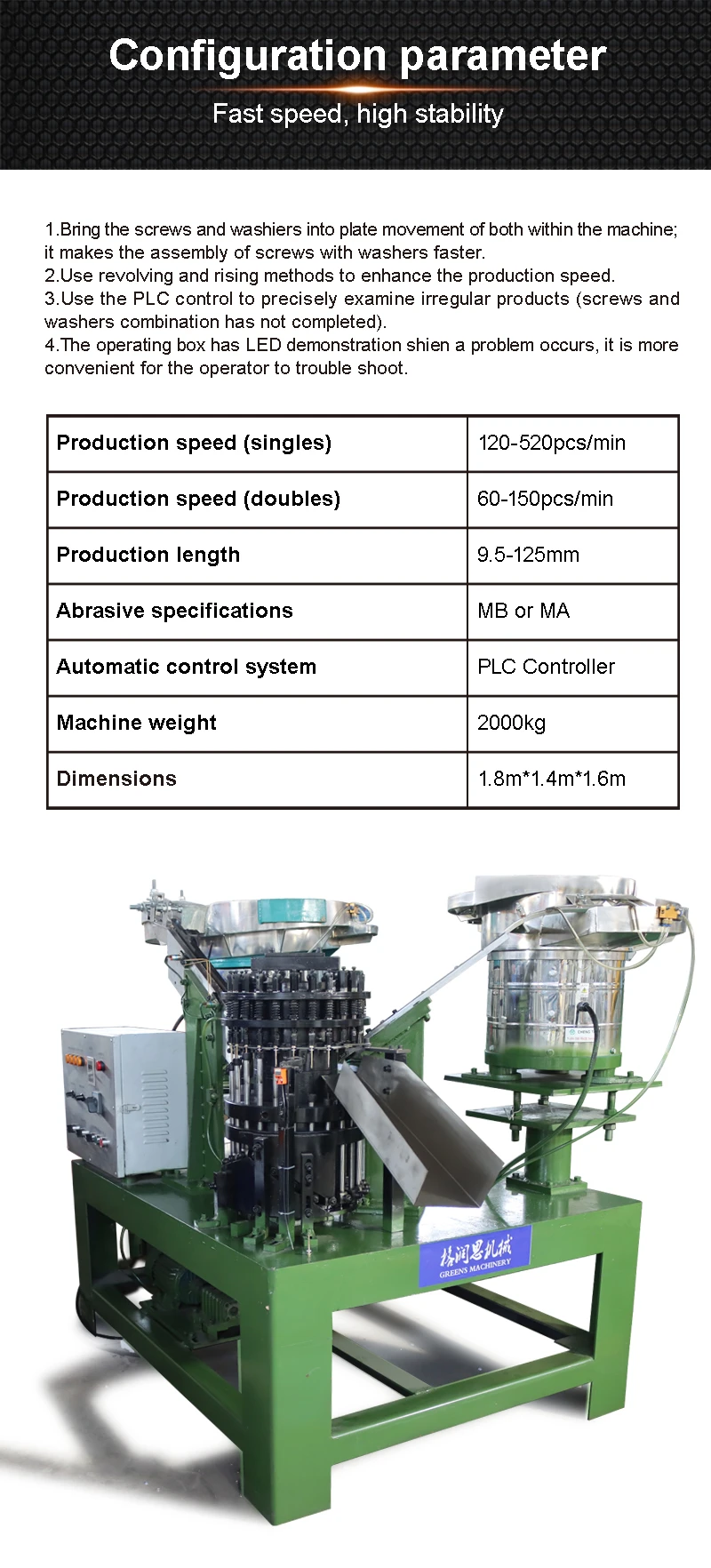

Configuration Parameters
Fast speed, high stability
- Double feeding system transports screws and washers separately into rotary assembly station, greatly boost gasket assembly efficiency for finished self drilling screws.
- Adopts rotary lifting transmission design to improve overall production speed and continuous output capacity.
- PLC intelligent control system with photoelectric inspection function, automatically reject unqualified products with incomplete washer assembly.
- Operation panel equipped with LED fault indicator lights, quickly locate abnormal points for easier maintenance & troubleshooting.
Full Technical Spec List
- Single-track Production Speed:
120-520 pieces per minute - Double-track Production Speed:
60-150 pieces per minute - Applicable Screw Length:
9.5mm – 125mm - Applicable Screw Spec:
MB / MA series self drilling screws - Control System:
PLC Automatic Controller - Machine Total Weight:
2000 KG - Overall Dimension:
1.8m * 1.4m * 1.6m
Product Details
Efficient, stable, intelligent and energy-saving

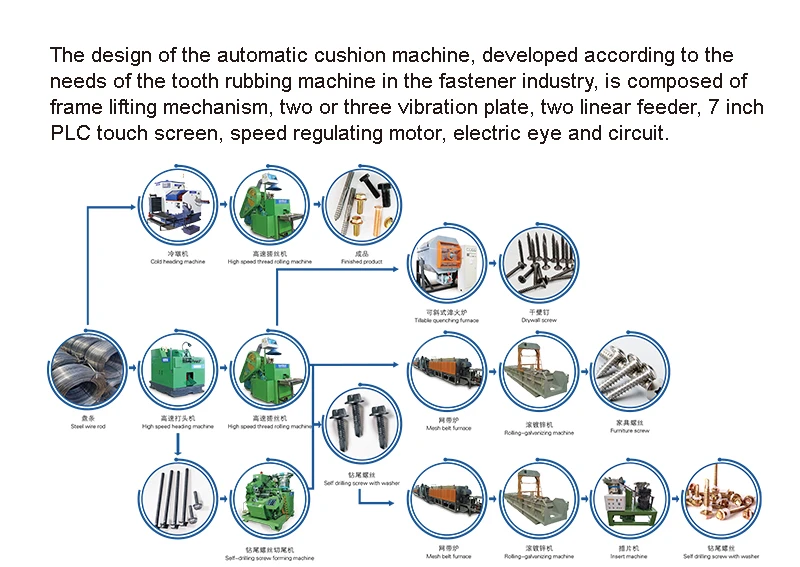

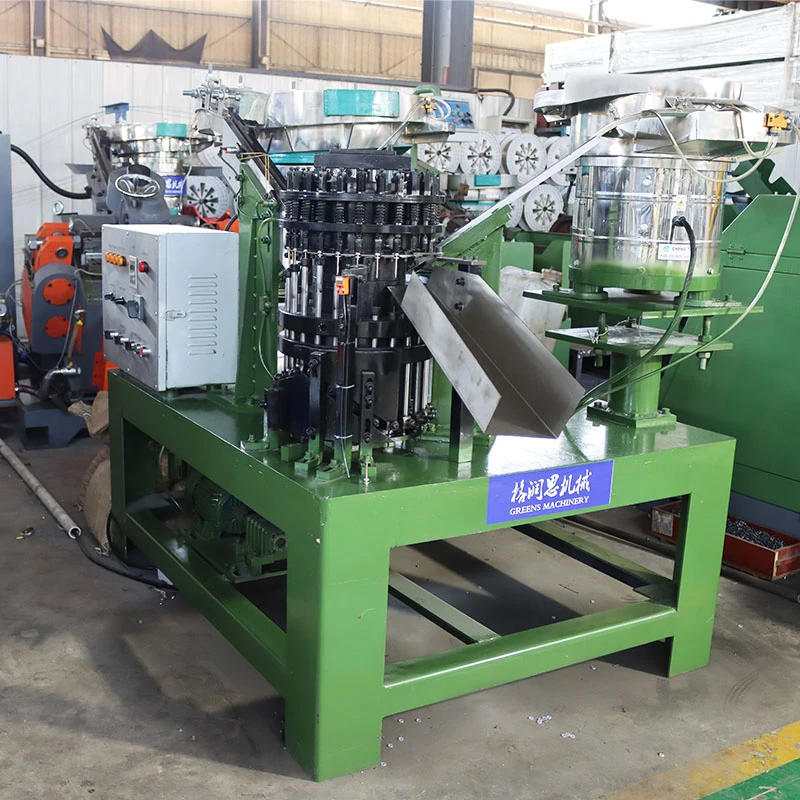

This automatic gasket inserting machine is customized for fastener industry thread rolling production lines. It consists of heavy-duty frame lifting mechanism, dual/triple vibration feeding disks, 2 sets linear feeders, 7-inch PLC touch control system, variable speed motor, photoelectric sensor and complete control circuit system.

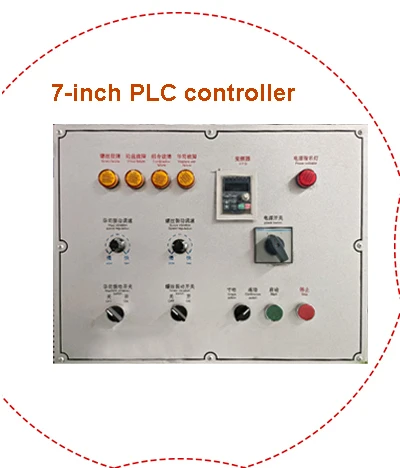

7-inch PLC Controller
Central intelligent control system with speed adjustment knobs, emergency stop & operation indicator lights, convenient for fault diagnosis & parameter setting.

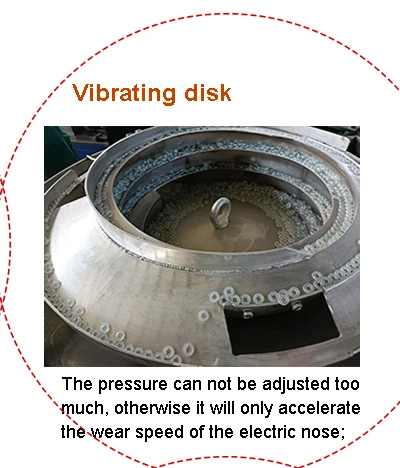

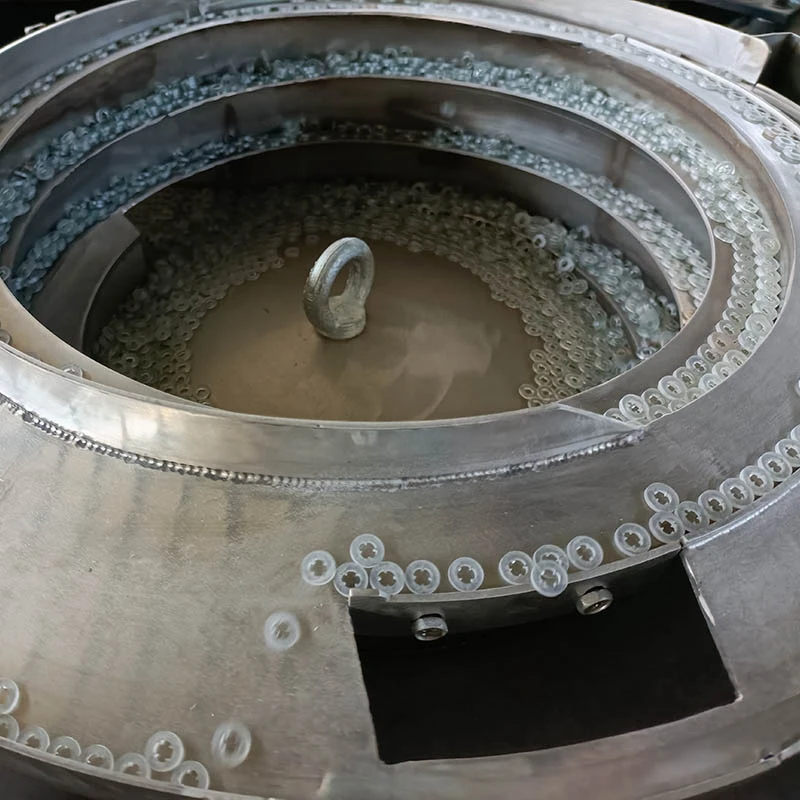

Washer Vibrating Disk
Do not set excessive vibration pressure, otherwise it will accelerate abrasion of photoelectric sensor and shorten service life.

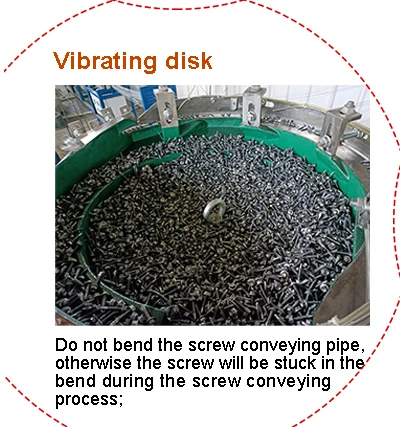

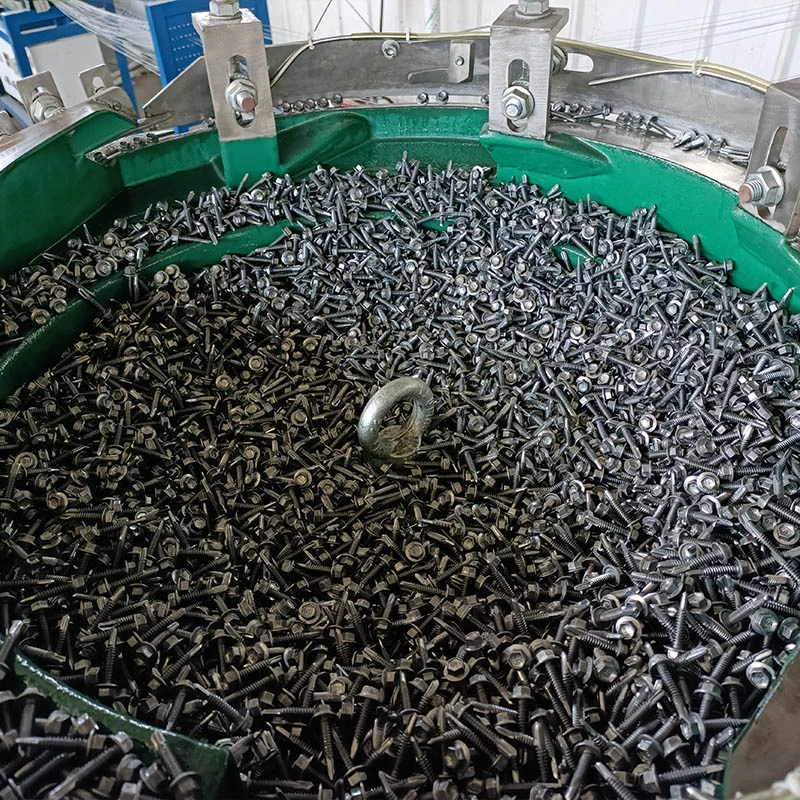

Screw Vibrating Disk
Avoid bending the screw conveying pipeline, bent pipes will cause screw jamming during automatic feeding process.

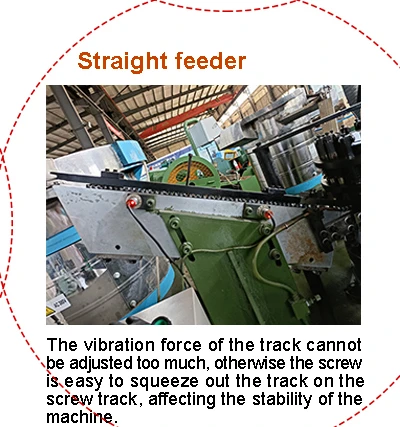

Straight Linear Feeder
Vibration intensity of feeding track should not be over-adjusted, excessive vibration will push screws out of track and affect machine running stability.

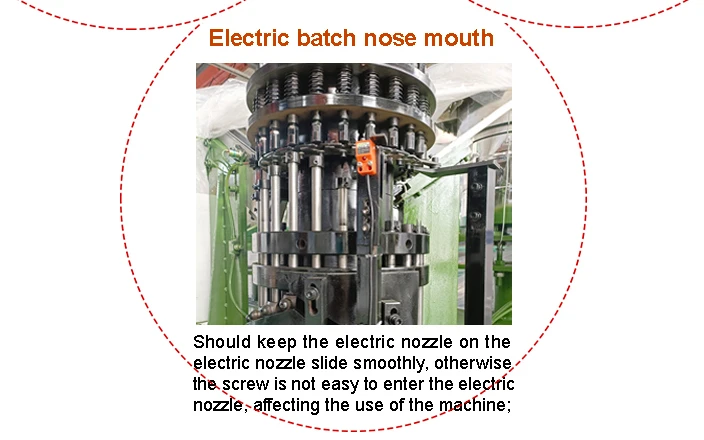

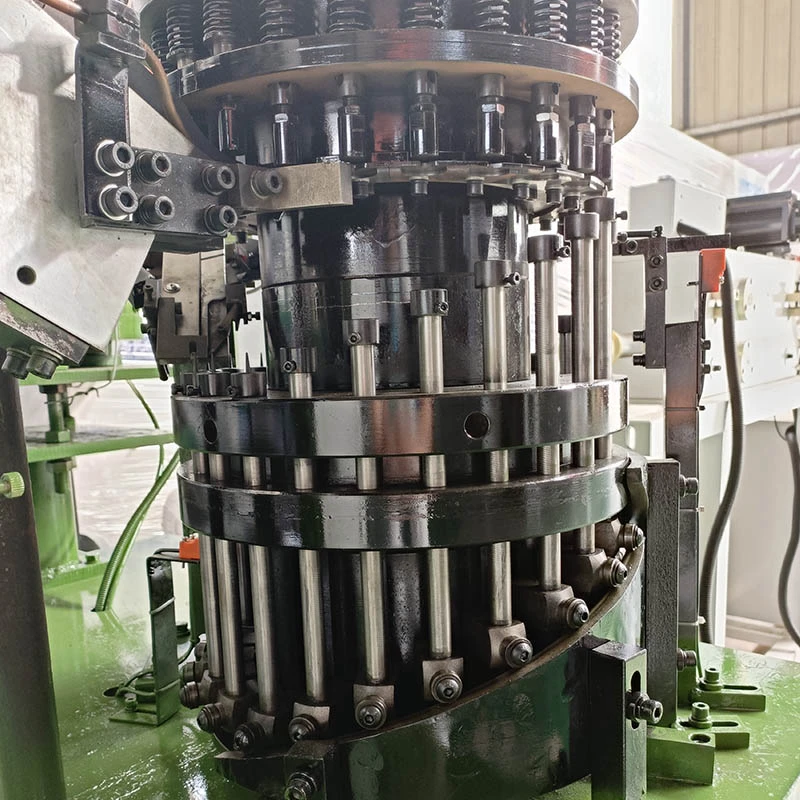

Central Assembly Working Head
Ensure smooth sliding of positioning nozzles, stuck nozzles will block screw feeding and lead to incomplete gasket assembly.
Application Scope
Efficient, stable, intelligent and energy-saving
Home Decoration
Industrial Building Materials
Medical Appliances
Food Processing Industry
Automotive & Ship Accessories
Construction Machinery

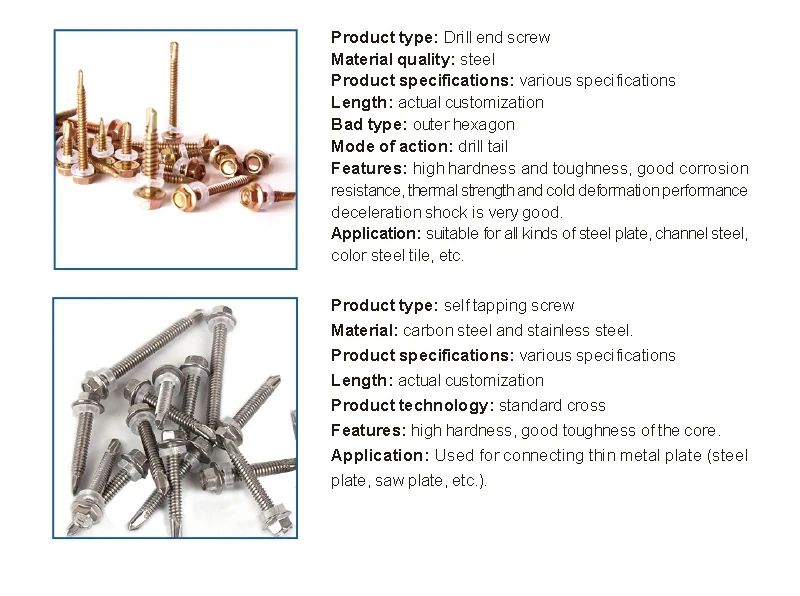

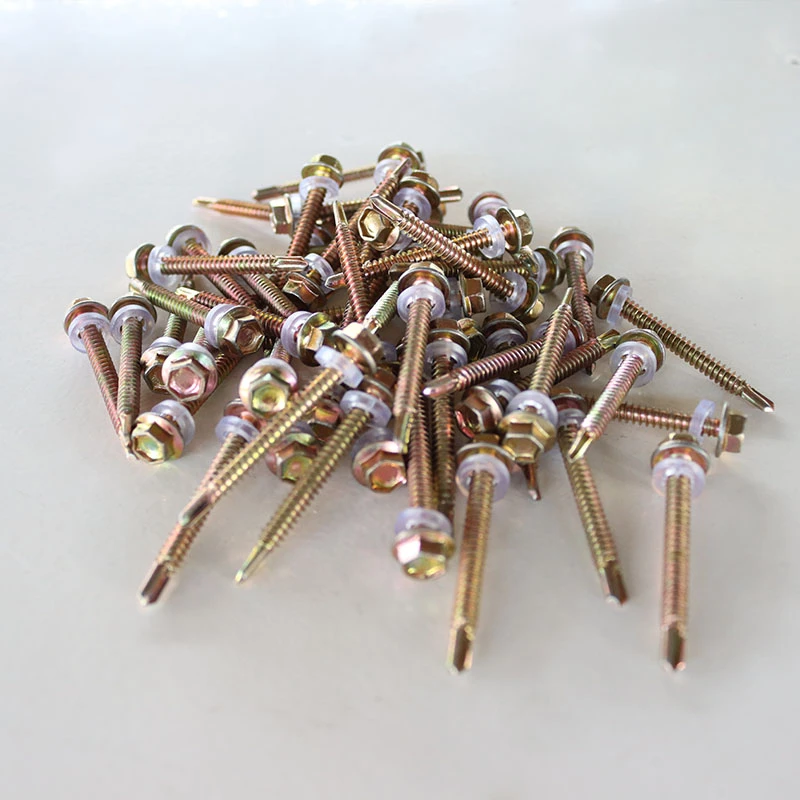

Outer Hex Self Drilling Screw (Finished Product)
- Product Type: Drill tail self drilling screw
- Raw Material: Carbon steel
- Available Spec: Multiple sizes customizable
- Custom Length: Support full length customization
- Head Type: Outer hexagon head
- Drill Type: Self-drilling tail point
- Product Features: High hardness & toughness, excellent anti-corrosion, stable thermal strength & cold deformation performance, great shock absorption
- Application: Fixing color steel tile, channel steel, various metal steel sheets for construction
Cross Head Self Tapping Screw
- Product Type: Cross recess self tapping screw
- Raw Material: Carbon steel / Stainless steel optional
- Available Spec: Multiple sizes customizable
- Custom Length: Support full length customization
- Head Design: Standard cross drive head
- Product Features: High surface hardness, strong core toughness
- Application: Connection & fixing of thin metal sheets, steel plates, saw plates & light metal components
