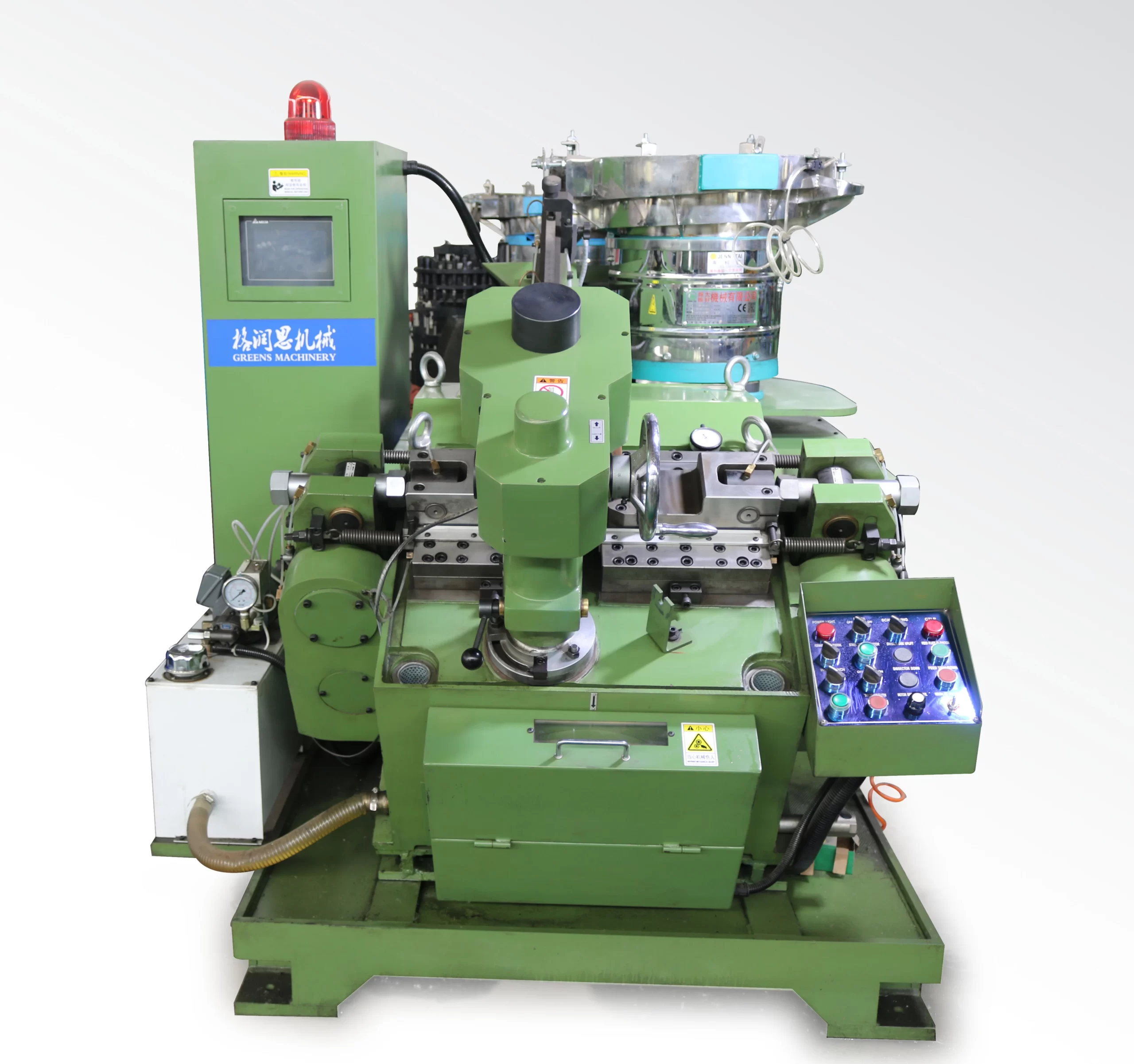

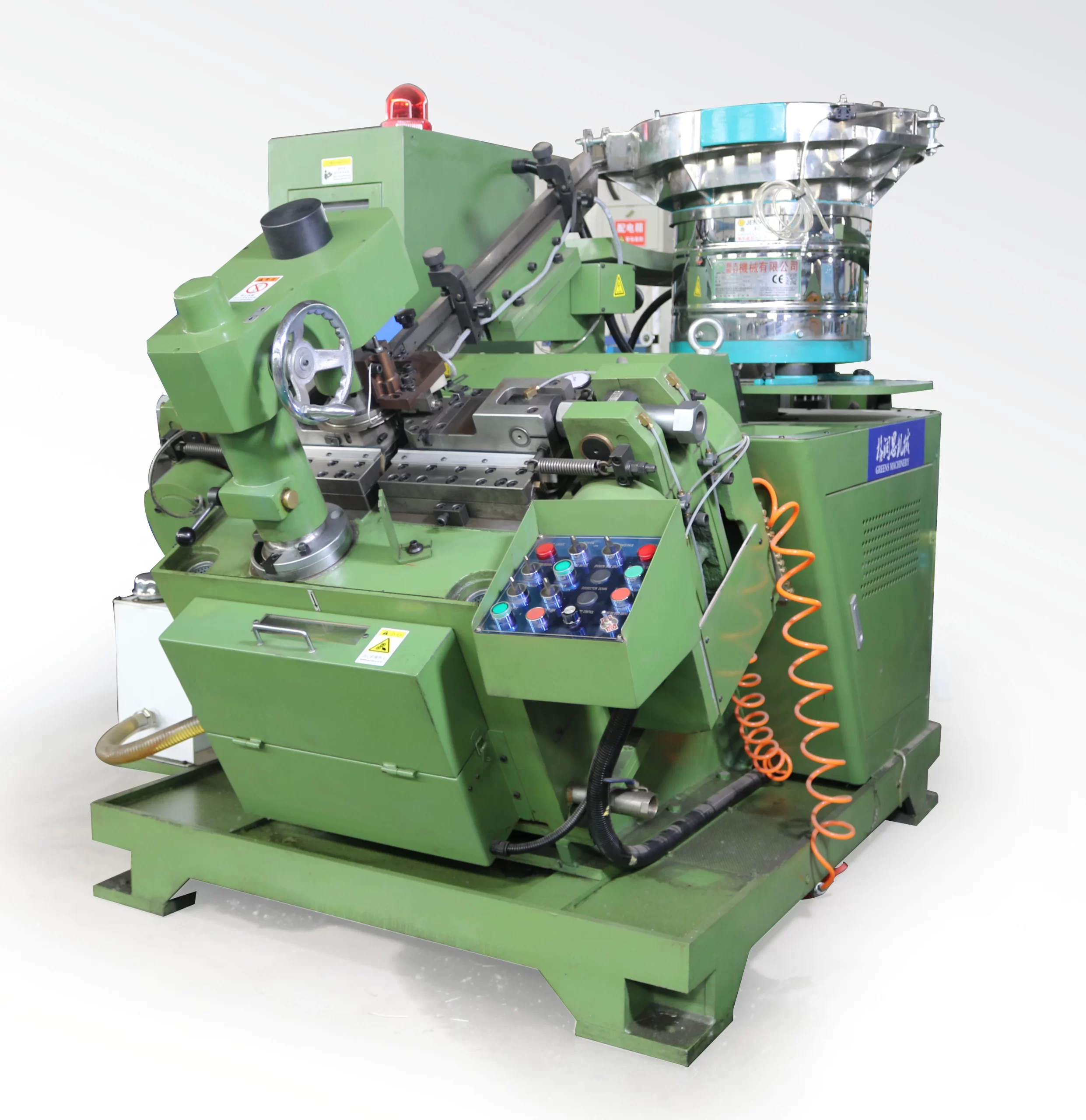

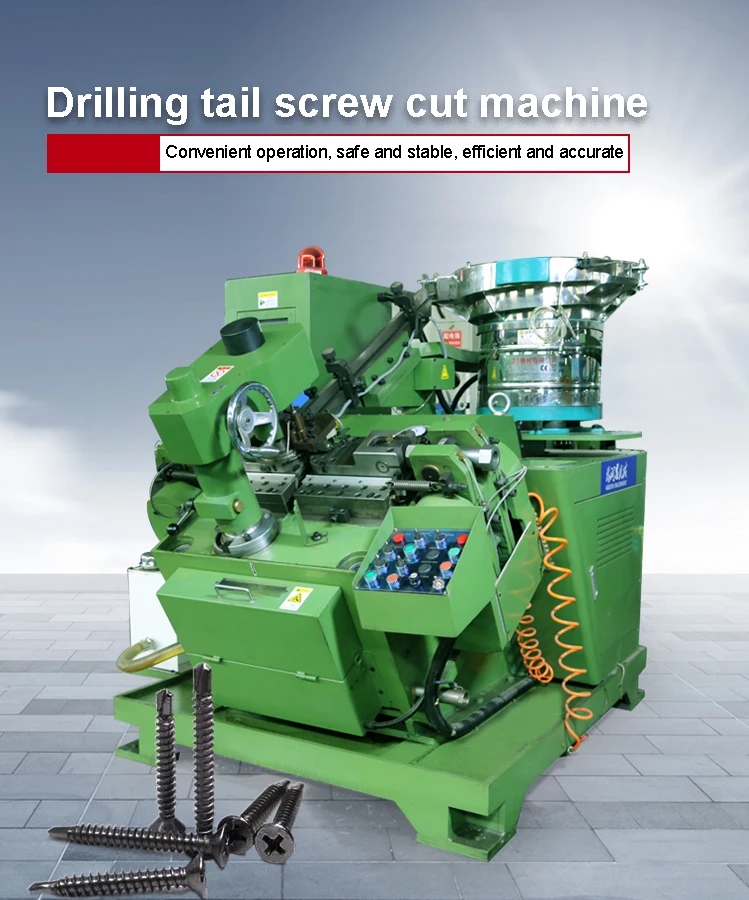

Automatic Self Drilling Screw Tail Cutting Forming Machine for Hex Flange Drill Bit Screw Production

Self Drilling Screw Tail Cutting Forming Machine

Drilling Tail Screw Cut Machine

Convenient operation, safe & stable running, high efficiency & precise tail forming

Configuration Parameters

Simple operation, highly efficient & stable performance

The automatic tail cutting machine for pre-headed screw blanks adopts upgraded feeding system, simple operation, smooth feeding without material jamming.

  • Main Motor:
    5.5KW 6P 3PH (7.5HP)
  • Voltage:
    Customized based on client demand
  • Inverter:
    7.5KW (10HP)
  • Output Speed (Single Stroke):
    120-520 pieces per minute
  • Output Speed (Double Stroke):
    60-150 pieces per minute
  • Applicable Wire Diameter:
    #6 (Φ2.8mm) – #12 (Φ4.3mm), No.1 – No.3
  • Vibratory Feeder:
    Φ620mm with silent PU anti-noise coating
  • Processing Screw Length:
    9.5mm – 125mm (3/8″ – 5″)
  • Die Holder Model:
    MB or MA, customizable for clients
  • Automatic Controller:
    PLC Intelligent Controller
  • Machine Weight:
    Approx. 1994KG, tolerance ±2KG
  • Overall Dimensions:
    1900mm × 1400mm × 1600mm

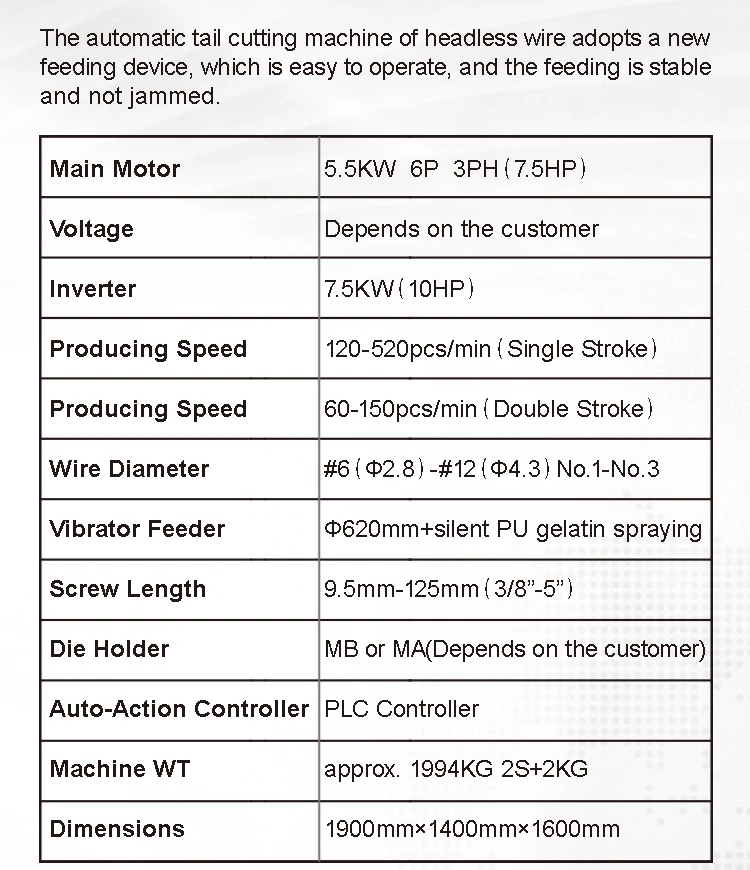

Self Drilling Screw Tail Cutting Machine Parameter Chart

Product Details & Core Structure

Simple operation, highly efficient & stable long-term running performance

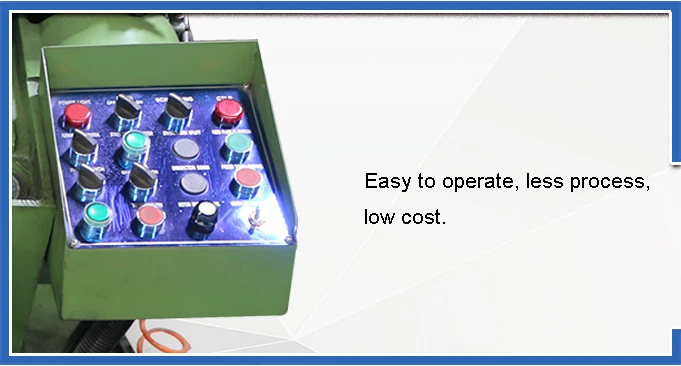

01 Easy Operation, High Efficiency & Stability



Drill Tail Screw Machine Product Detail Structure 01
Drill Tail Screw Machine Product Detail Structure 01

User-friendly control panel, simplified processing flow, lower overall production cost for screw factories.

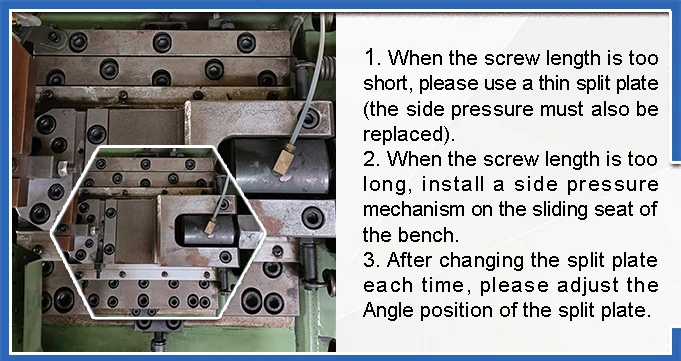

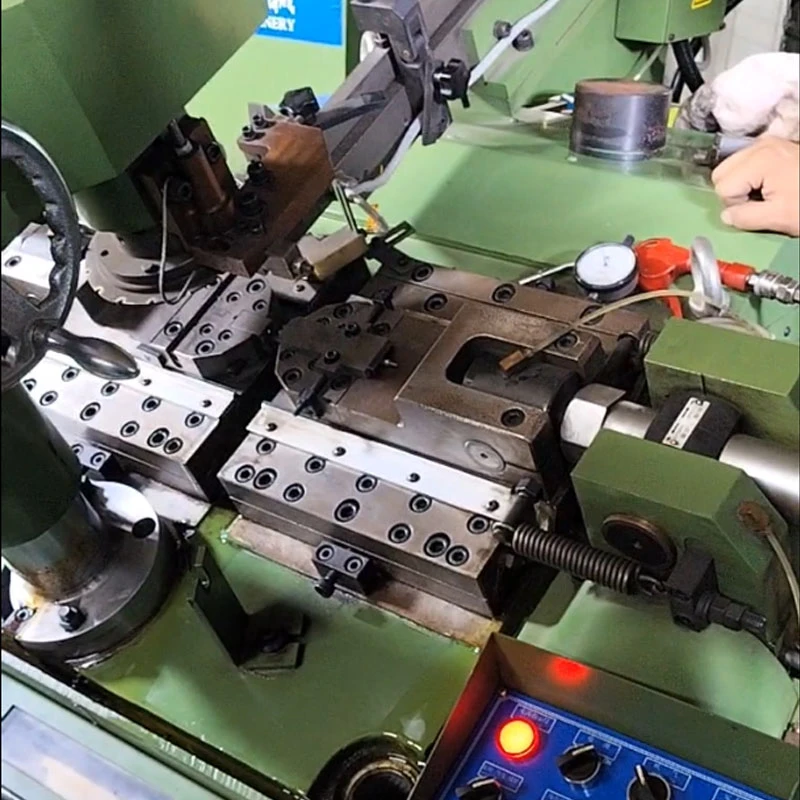

02 Precision Slide Table Assembly
Drill Tail Screw Machine Product Detail Structure 02
Drill Tail Screw Machine Product Detail Structure 02
  • Use thin split plate & matched side pressure fixture when processing short-size screws
  • Install side pressure mechanism on sliding base for extra long screw blanks
  • Readjust split plate angle position after every mold replacement to guarantee forming precision

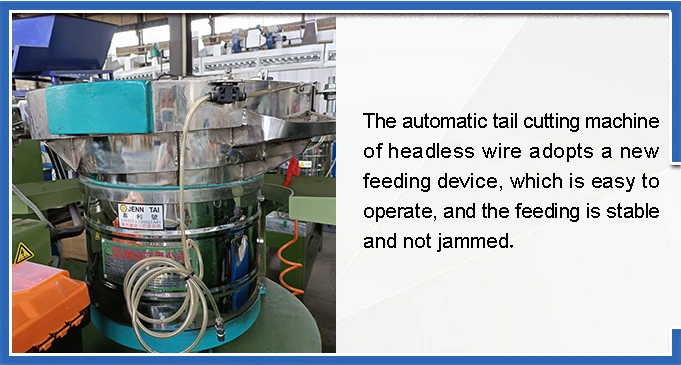

03 Upgraded Stable Feeding System
Drill Tail Screw Machine Product Detail Structure 03
Drill Tail Screw Machine Product Detail Structure 03

Custom vibratory feeder for pre-headed screw blanks, smooth automatic sorting feeding, effectively avoid material jamming & shutdown failure.

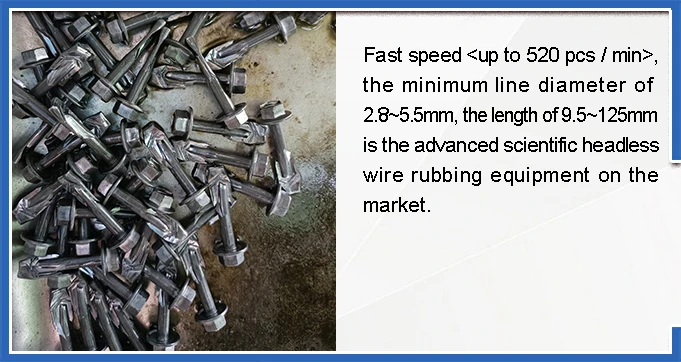

04 Leading Industry Performance
Drill Tail Screw Machine Product Detail Structure 04
Drill Tail Screw Machine Product Detail Structure 04

Max production speed up to 520 pieces per minute, compatible wire range 2.8-5.5mm, screw length 9.5-125mm, advanced automatic tail forming equipment for fastener manufacturers.

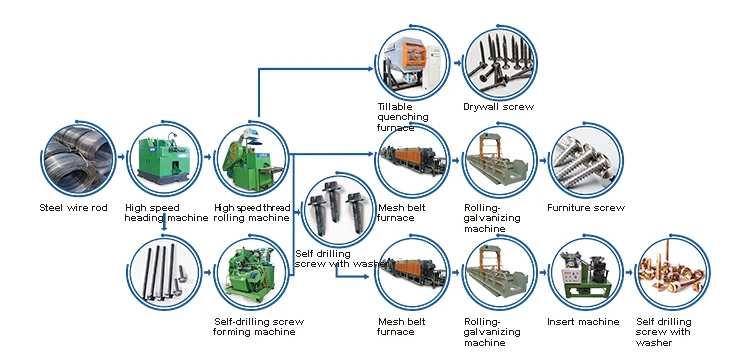

Full Screw Production Flow Chart

Simple operation, highly efficient drill tail screw manufacturing workflow with stable output

Complete Self Drilling Screw Production Line Process Flow

1. Drywall Screw

  • Material: Carbon steel
  • Specifications: M3.5*16, M3.5*20, M3.5*25, M3.5*30, M3.5*35, M3.5*40, M3.5*50; Length options: 35,40,50,20,30,25,16mm
  • Surface Treatment: Phosphating, blue & white zinc plating
  • Features: High surface hardness, anti-rust performance
  • Application: Plasterboard, light partition wall & ceiling installation construction

2. Furniture Screw

  • Material: Stainless steel
  • Specifications: Full customized sizes available
  • Features: High hardness, rust & corrosion resistant
  • Application: Machinery, auto parts, new energy, marine, furniture, electronics, construction fasteners

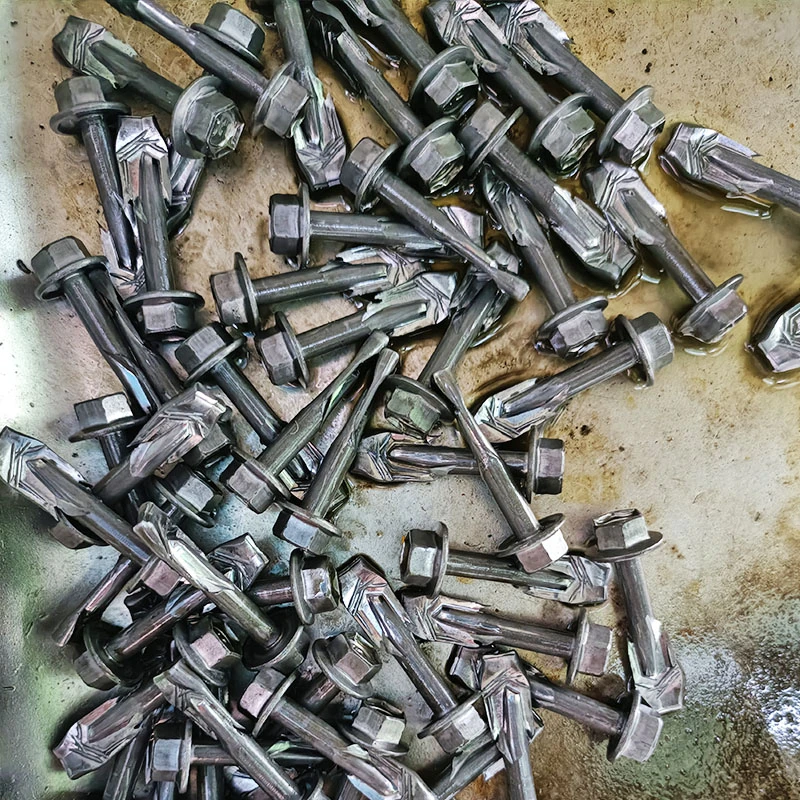

3. Hex Flange Self Drilling Screw

  • Material: Carbon steel
  • Specifications: Customized length & diameter
  • Head Type: Outer hex flange head
  • Tail Type: Self-drilling drill bit tail
  • Features: High hardness & toughness, anti-corrosion, stable thermal & cold forming performance, excellent shock absorption
  • Application: Steel plate, channel steel, color steel tile metal construction installation

4. Self Tapping Screw

  • Material: Carbon steel / stainless steel optional
  • Drive Type: Standard cross recess
  • Features: High surface hardness, good core toughness
  • Application: Thin metal sheet, steel plate & saw plate connection fastening

Application Range of Finished Drill Tail Screws

Years of manufacturing technology precipitation guarantees stable machine quality & reliable finished screw performance

Self Drilling Screw Application Construction Scenarios
