Automatic PLC High Speed Wire Nail Making Machine For Round, Cement, Clout & Galvanized Nails

Description

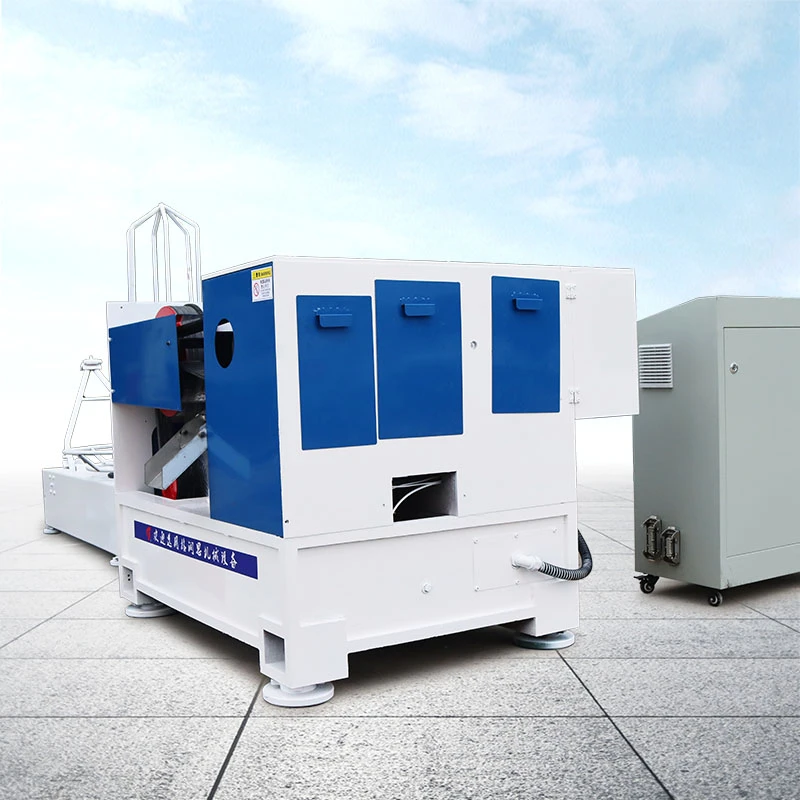

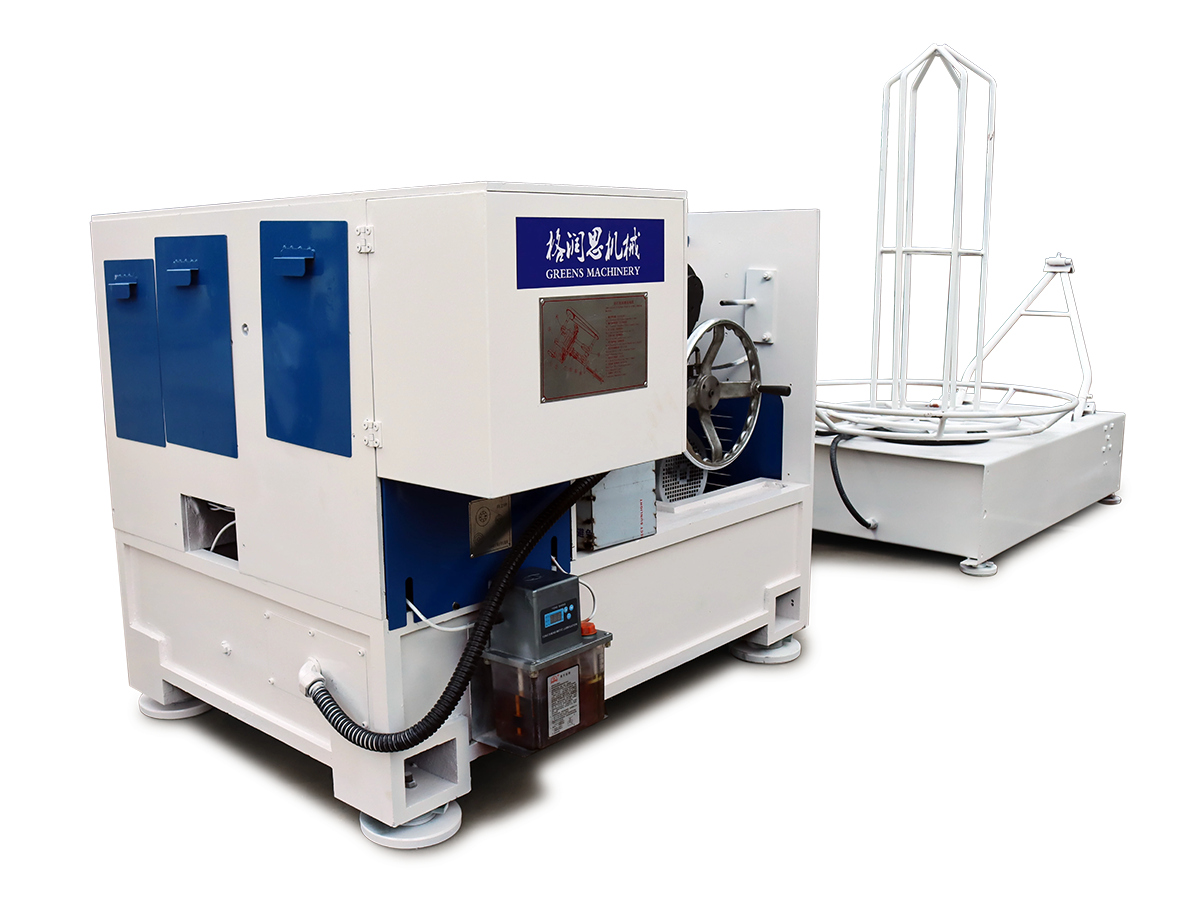

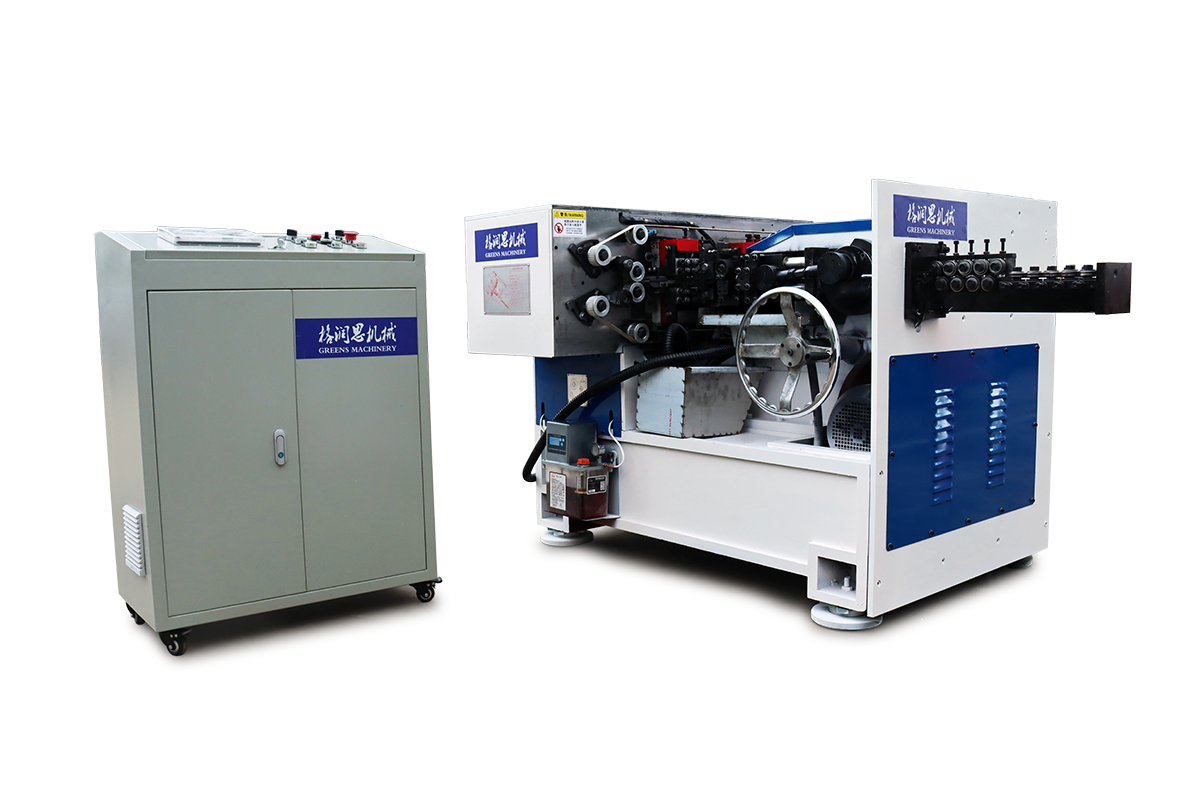

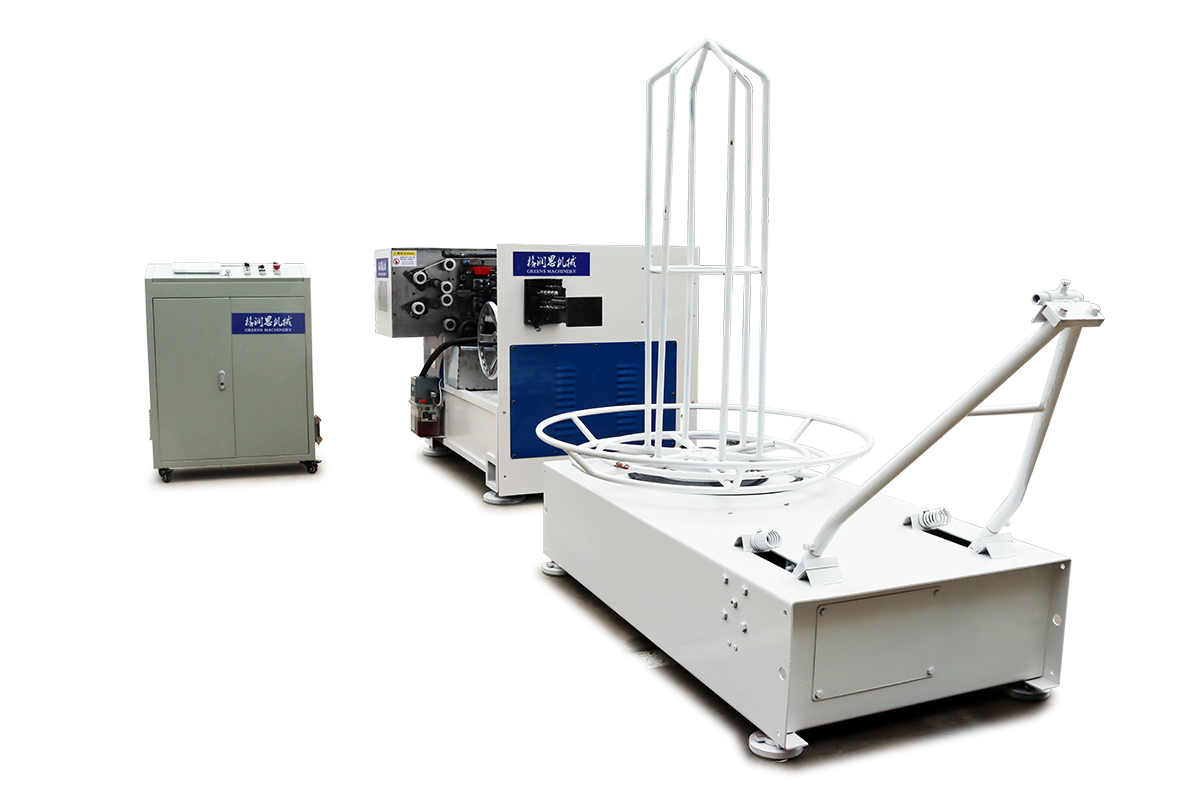

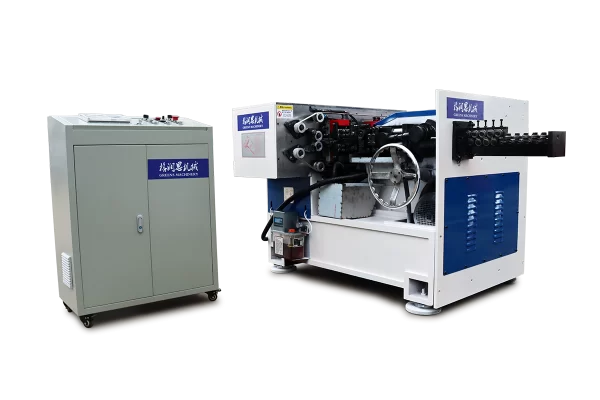

High Speed Wire Nail Making Machine

PLC automatic control, stable nail forming, low failure rate, suitable for mass production of round nails, cement nails, coil nails and galvanized nails.

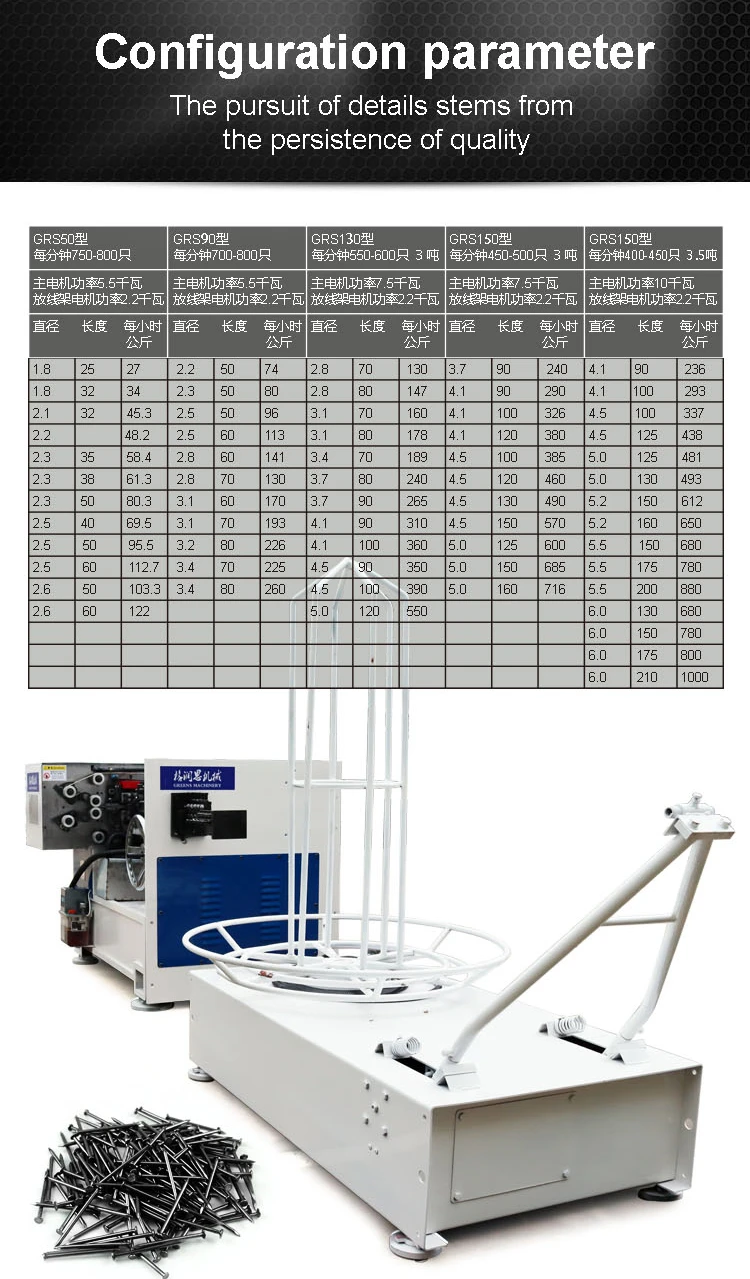

Configuration Parameter

GRS50 Model

Output: 750-800 nails/min
Main Motor: 5.5 KW

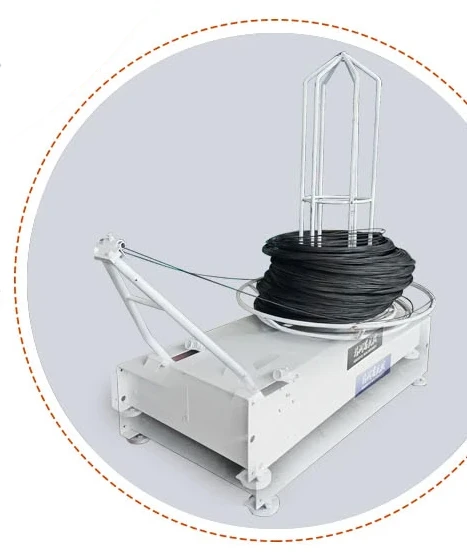

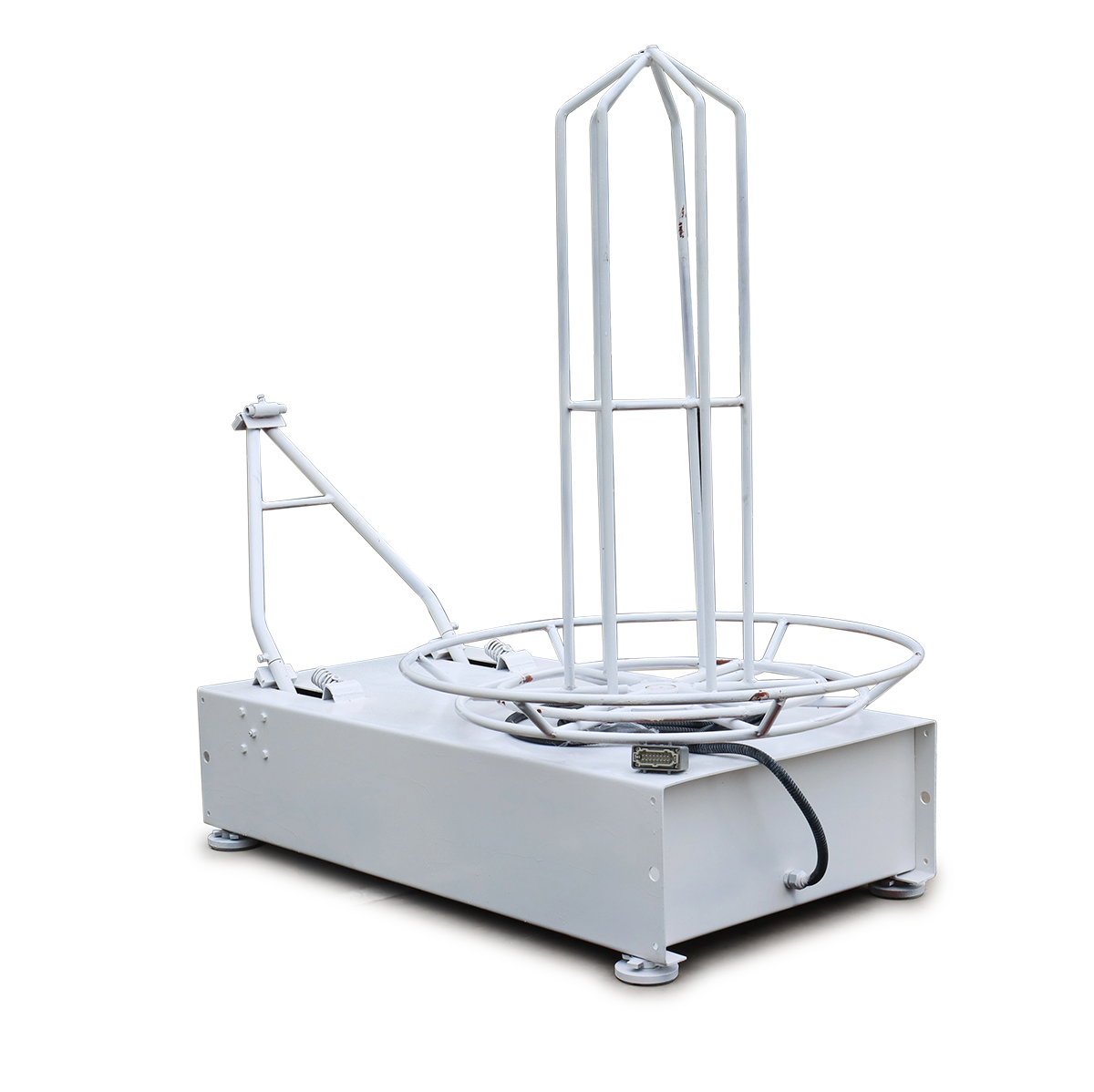

Uncoiler Motor: 2.2 KW
Wire Diameter: 1.8mm – 2.6mm
Nail Length: 25mm – 60mm
Max Hour Output: 122 KG

GRS90 Model

Output: 700-800 nails/min
Main Motor: 5.5 KW
Uncoiler Motor: 2.2 KW
Wire Diameter: 2.2mm – 3.4mm
Nail Length: 50mm – 80mm
Max Hour Output: 260 KG

GRS130 Model

Output: 550-600 nails/min
Main Motor: 7.5 KW
Uncoiler Motor: 2.2 KW
Wire Diameter: 2.8mm – 4.1mm
Nail Length: 70mm – 100mm
Max Hour Output: 360 KG

GRS150 Model

Output: 400-500 nails/min
Main Motor: 7.5/10 KW optional
Uncoiler Motor: 2.2 KW
Wire Diameter: 3.7mm – 6.0mm
Nail Length: 90mm – 210mm
Max Hour Output: 1000 KG

Core Structure Details & Advantages

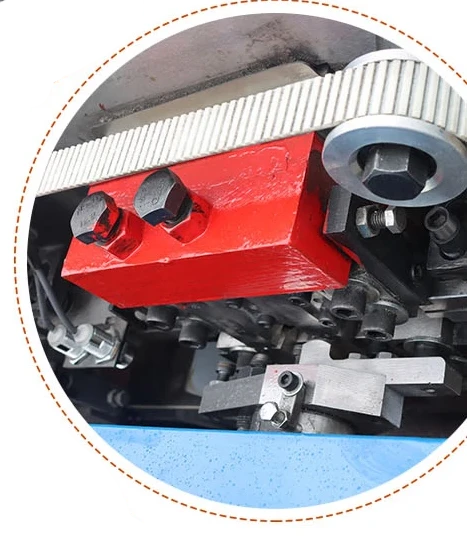

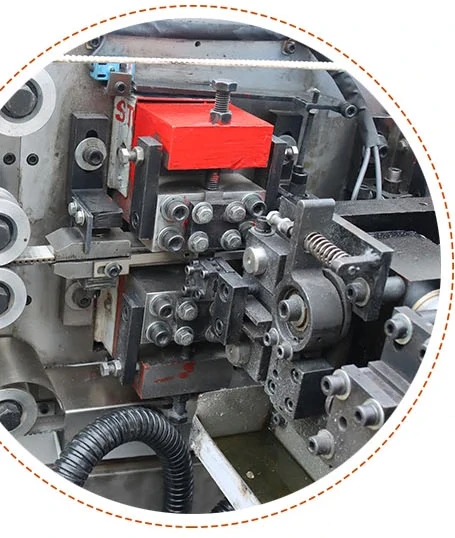

Double Mold Double Blunt Forming Structure

Unique two-forming patent design stabilizes nail cap shape, 100% round & straight nail heads, eliminates flat heads, fish tails and bent nail shafts defects.

Auto Long & Short Nail Defect Sensor

Built-in length detection sensor auto stops machine for abnormal nails, guarantees uniform finished nail quality and cuts manual inspection labor cost.

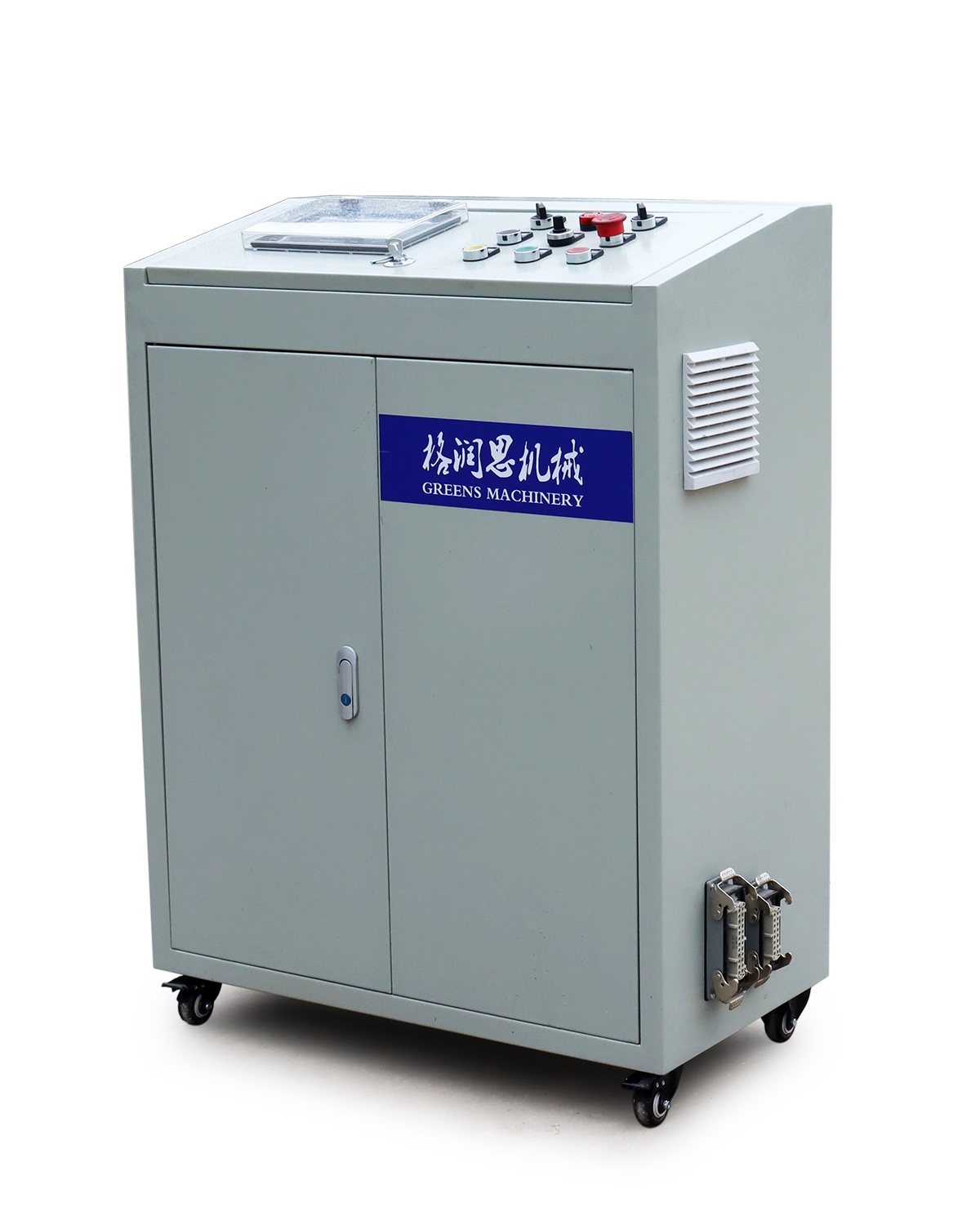

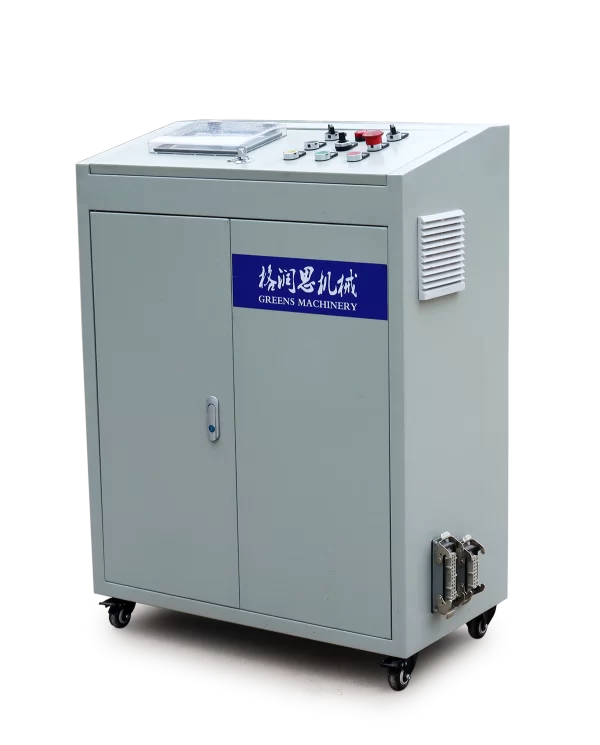

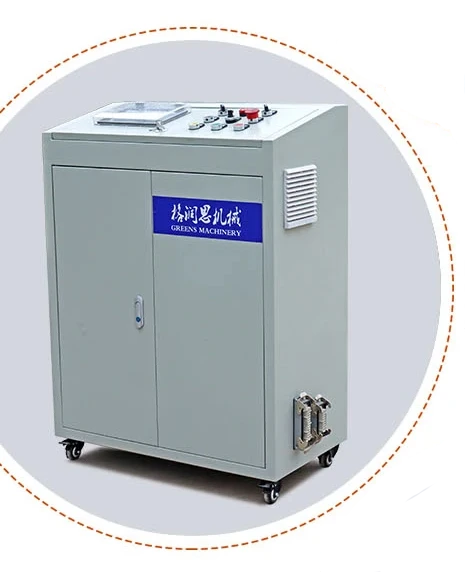

PLC Touch Screen Intelligent Control Cabinet

PLC Touch Screen Operation System

Full PLC automatic control with touch screen, simple parameter adjustment, stable & reliable long-time continuous running performance.

Wide Raw Wire Material Compatibility

Supports black annealed wire (Q195/Q235/55/70) and bright polished steel wire, low raw material requirement for flexible production.

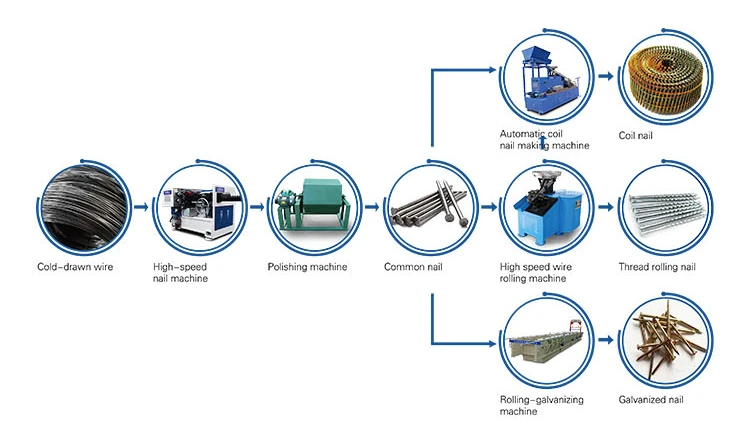

Complete Nail Manufacturing Production Flow

Cold-drawn Wire Feeding → High Speed Nail Forming → Polishing → Finished Nails, extendable to coil nail, threaded nail and galvanized nail production lines.

Finished Nail Types We Can Manufacture

Round Common Nails

Material: Q195 Low Carbon Steel, Length 20-150mm, used for wood furniture, indoor decoration and general construction fixing.

Coil Nails

Q195 steel coil nails in multiple standard sizes, widely applied for wooden pallets, wooden cases and heavy cargo packaging fixing.

Threaded Nails

Carbon & stainless steel threaded nails, sharp tip with strong tensile force, anti-bending for building & decoration fixing projects.

Cement ST Nails

45#/60# high hardness steel, super strong penetration ability for concrete wall, hard wood and building decoration installation.

Galvanized Anti-corrosion Nails

Carbon steel galvanized nails with excellent rust resistance, suitable for outdoor construction, wire mesh and highway guardrail binding works.

Wide Industry Application Scenarios

Wooden Pallet Production

Cable Tray Spool

Wooden Packing Box

Large Wood Frame

Furniture & Interior Decoration

Concrete Wall Installation

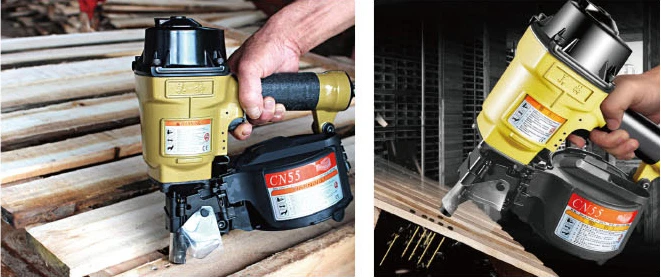

Coil Nail Gun Construction Operation

FAQ

General FAQ for Common & Coil Nail Production Line

Q1: What types of nails can machines in this category produce?

A: Our machinery manufactures standard smooth straight wire nails, as well as smooth shank, ring shank and screw shank coil nails. They are widely applied to fastener manufacturing for construction, wooden pallets, roofing and woodworking industries.

Q2: What range of nail sizes can the machines adjust to?

A: Nail length is adjustable from 15mm to 100mm, compatible with international standard wire gauges. All operating parameters can be modified in one click via the control cabinet.

Q3: What raw materials are suitable for nail production?

A: Q195/Q235 low carbon steel wire is our standard raw material with outstanding cost performance for mass production. Custom special steel is also available for manufacturing high-tensile industrial nails.

Q4: What is the output per minute for different machine models?

A: Conventional nail makers deliver 300–600 pieces per minute; PLC high-speed nail machines achieve higher productivity. The coil nail welding unit runs stably at 1200–2800 pieces per minute for bulk manufacturing.

Q5: Can you customize machines to fit local market requirements?

A: Customization services cover applicable wire range, nail length and automation grades. Optional ring & screw shank forming modules are available to satisfy mainstream markets across Europe, America, Southeast Asia and the Middle East.

Q6: What brands are used for motors and electric controls? What voltages are supported?

A: Top-tier domestic motors, inverters and PLCs are equipped as standard. International electrical components like Siemens and Schneider can be upgraded for EU & US orders. All machines support global industrial voltages: 220V / 380V / 415V.

Q7: What is the production lead time for standard orders?

A: Standard machines take 15–25 days for production & delivery. Orders with imported electric parts or special customized specifications require 30–40 days lead time.

Q8: What export packaging do you use? Can you provide full customs clearance documents?

A: Single machines are packed in reinforced IPPC fumigated wooden cases to avoid impact and moisture during sea shipment. We supply full clearance documents including fumigation certificate, packing list, proforma invoice and certificate of origin.

Q9: How long is the machine warranty? Is it convenient to purchase spare parts later?

A: A 12-month whole machine warranty is provided, excluding man-made damage and consumable wearing parts. Full original spare parts are kept in stock permanently, shipped by sea or international courier, with online video remote troubleshooting support.

Q10: How to complete installation, commissioning and operator training after machine arrival?

A: Complete English installation drawings, operation manuals and maintenance tutorial videos are delivered together with machines. If overseas on-site service is needed, our professional engineers will travel abroad to complete installation, commissioning and one-on-one hands-on training for workshop operators.
